CC1215 3 Row

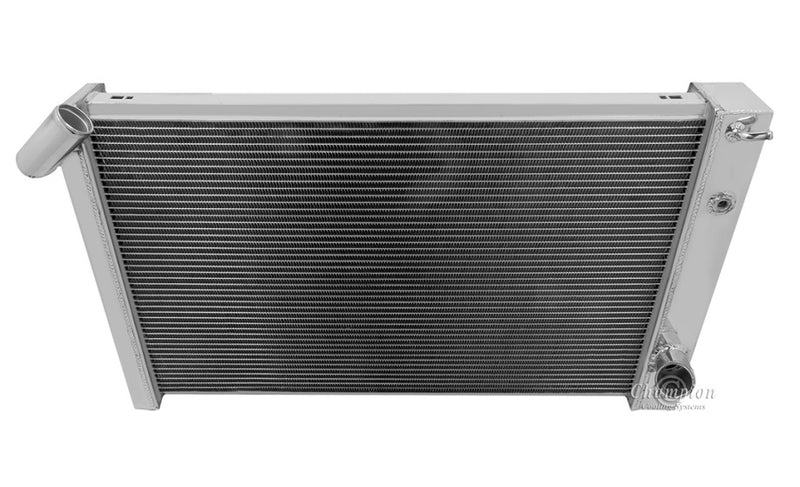

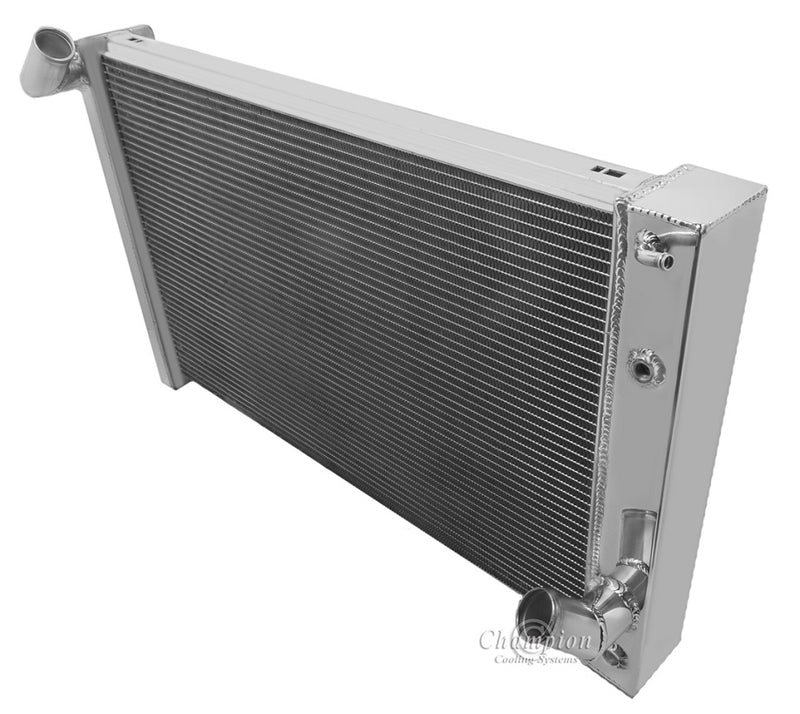

Champion Cooling All Aluminum Radiator
3-Row Core | Cools up to 650hp

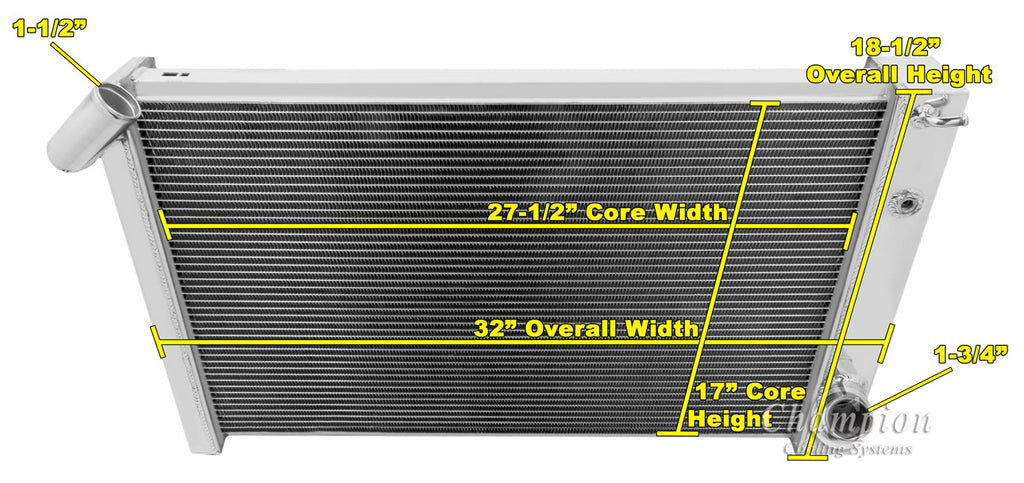

Radiator Dimensions:
Total: 18.63" tall x 31.63" wide
Core: 17.13" tall x 27.63" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.38" thick
Tubes: 0.63" thick

Saddle Mounted
note: no fill neck

Transmission Cooler Included (1/2-20 Straight Thread)
Aluminum Fan Shroud is also available (sold separately)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
