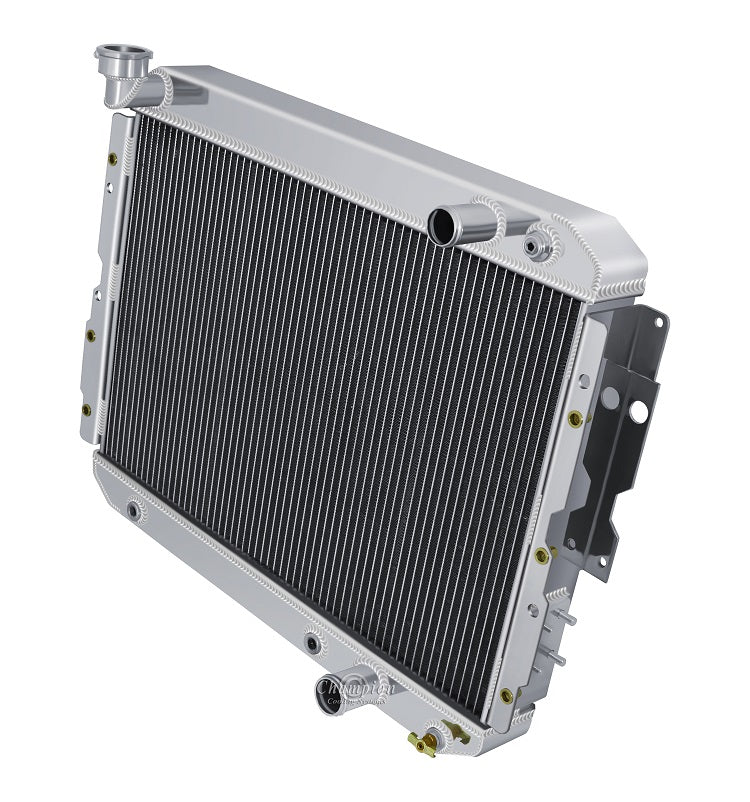

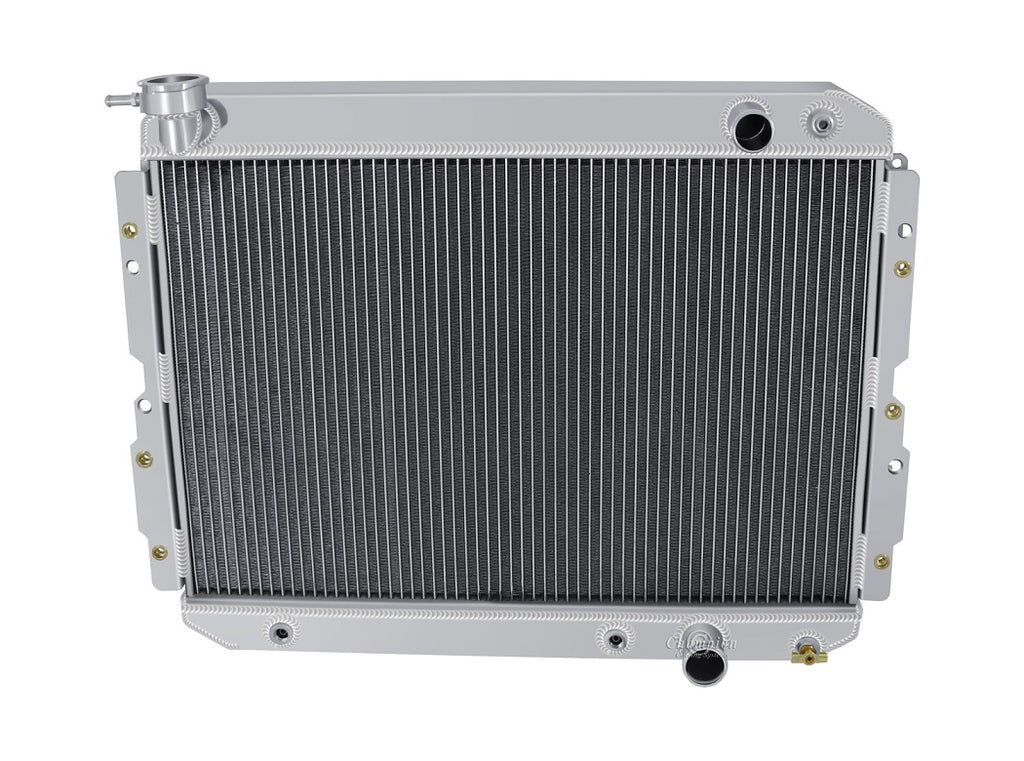

CC1213-LS 3 Row LS Conversions

All Aluminum Champion Radiator
3-Row Core | Cools up to 600hp
LS Conversions

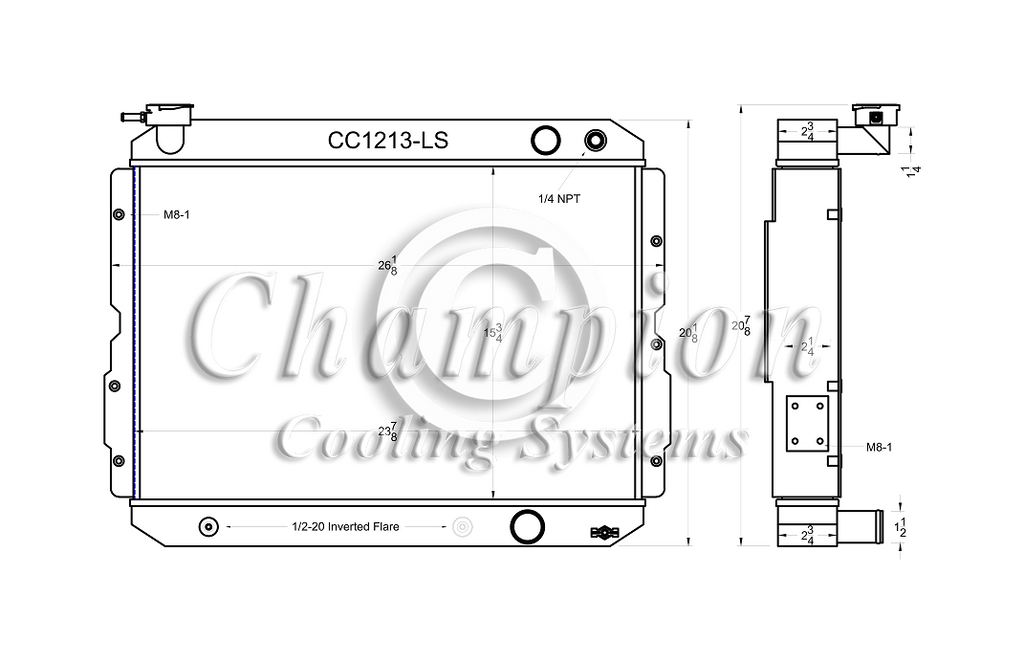

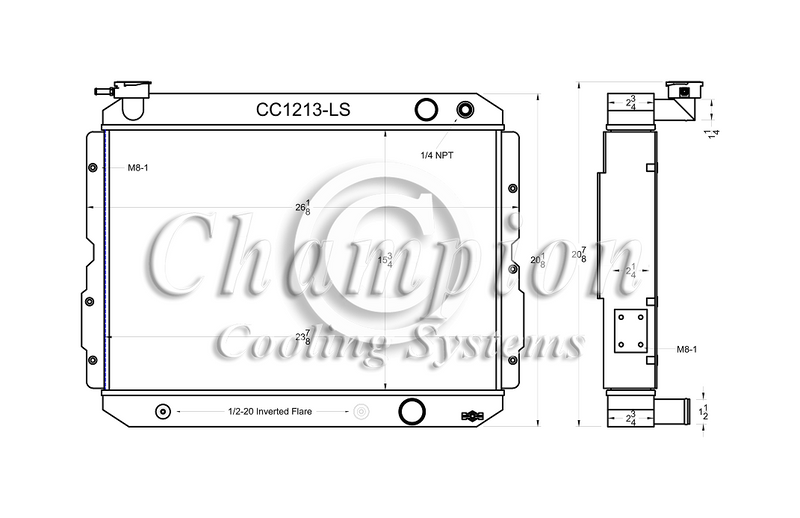

Radiator Dimensions:
Total: 21" tall x 26.25" wide (with brackets)
Core: 16.25" tall x 23.75" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler NOT included

Recommended electric cooling fans:
One 16" or (2) 11" SPAL electric fan(s) recommended for this core size

Shroud for electric fans available
