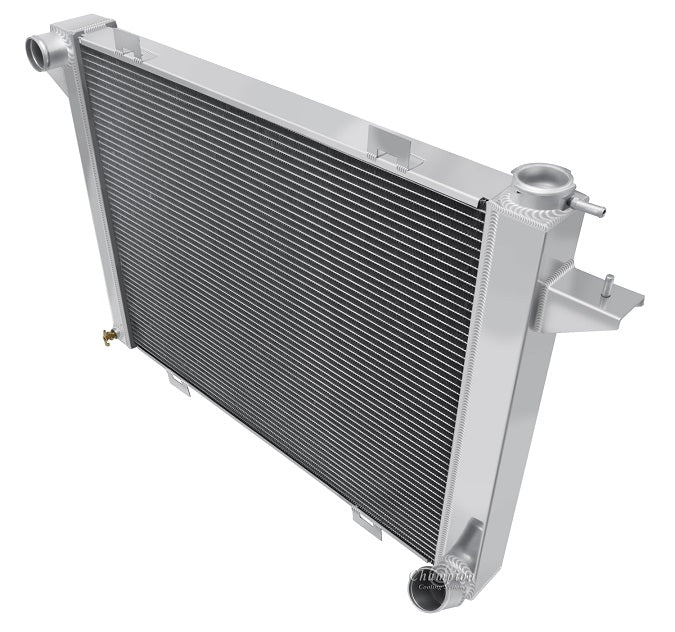

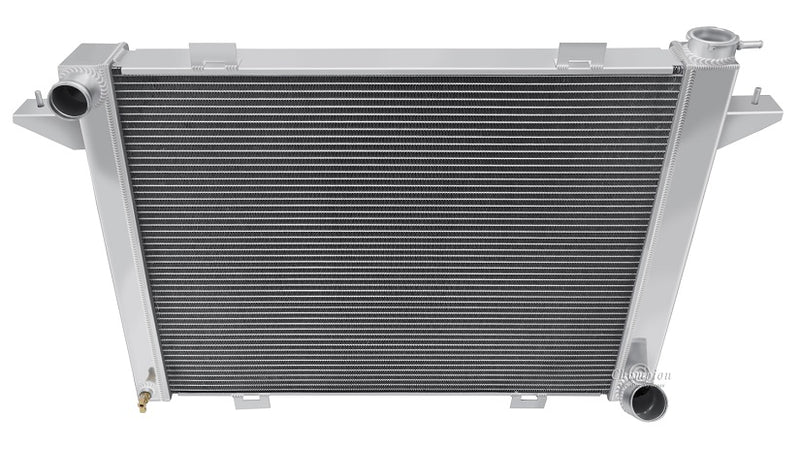

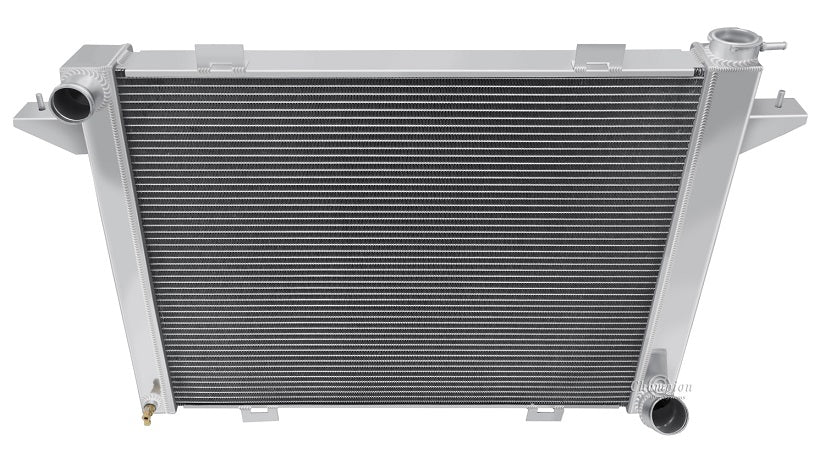

CC1198 3 Row Cummins Diesel

All Aluminum Champion Radiator
3-Row Core | Cools up to 650hp

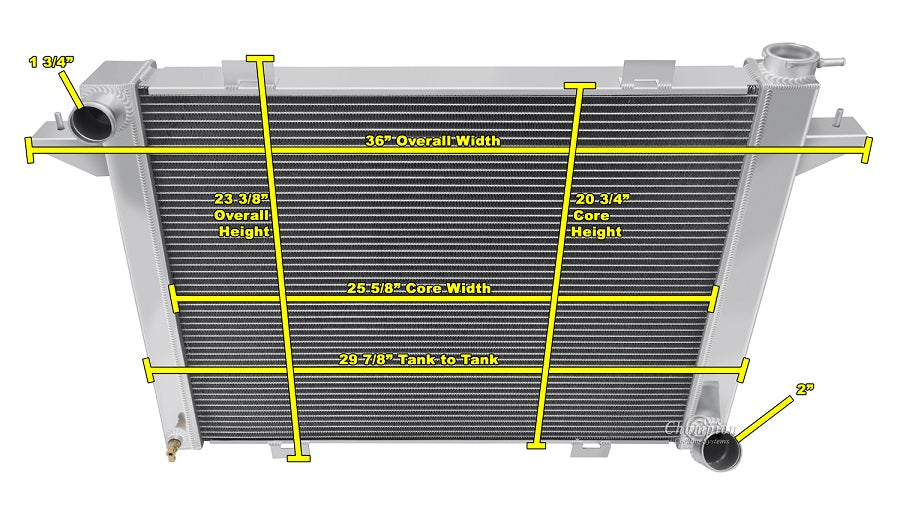

Radiator Dimensions:
Total: 23.38" tall (with cap) x 36" wide
Core: 20.75" tall x 25.63" wide x 2.25" thick
Inlet: 1.75" driver side
Outlet: 2" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick

13 lb. Radiator cap included
Transmission Cooler included (1/8-27NPT)

Recommeded Fans:
Two 12" SPAL fans recommended for this core size
