CC110CH 3 Row Chevy Conversions

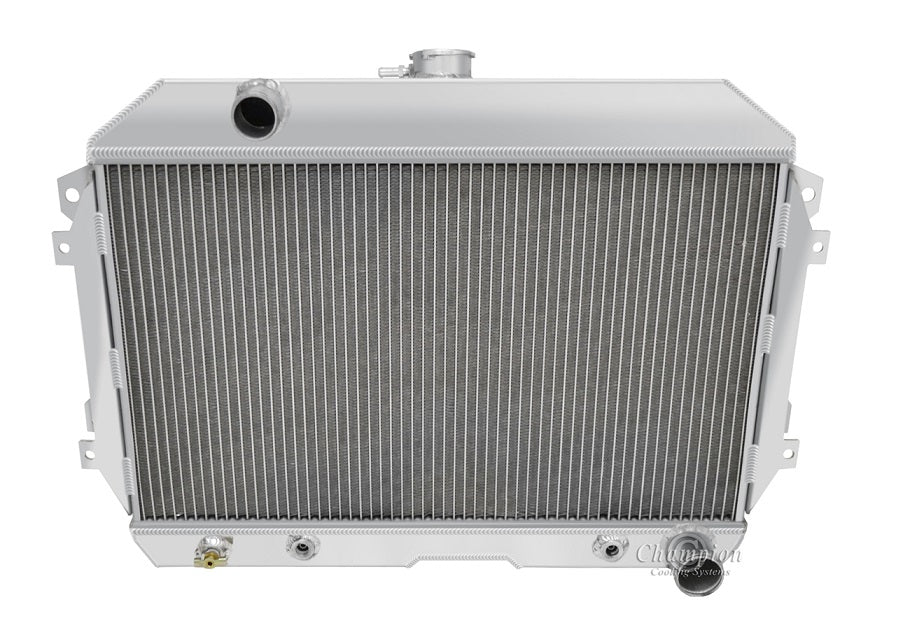

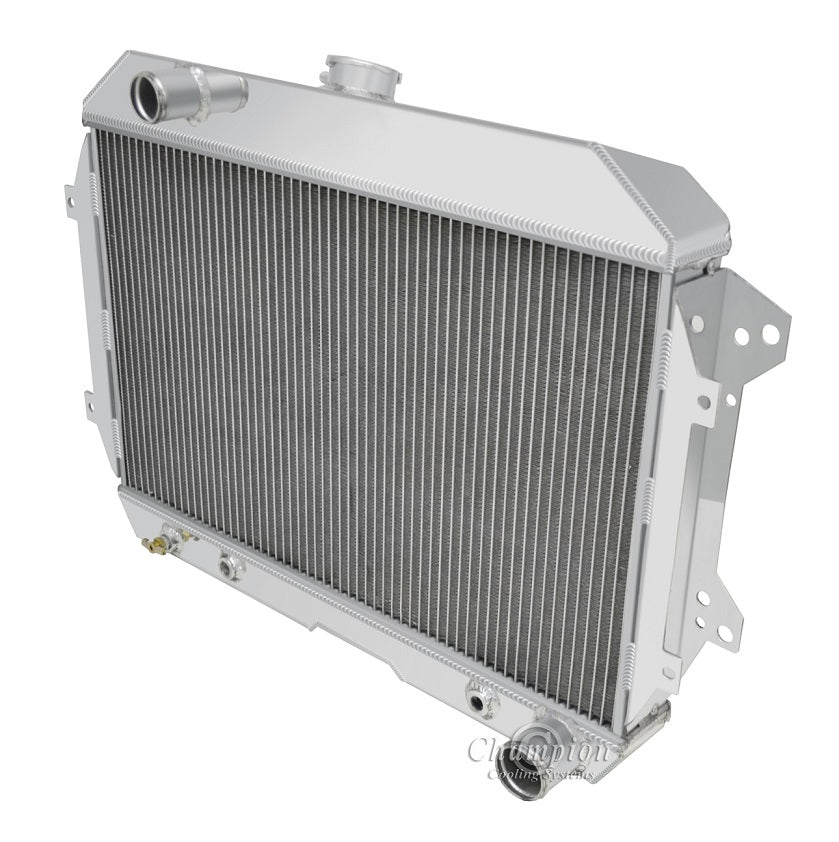

All Aluminum Champion Radiator
3-Row Core | Cools up to 500hp

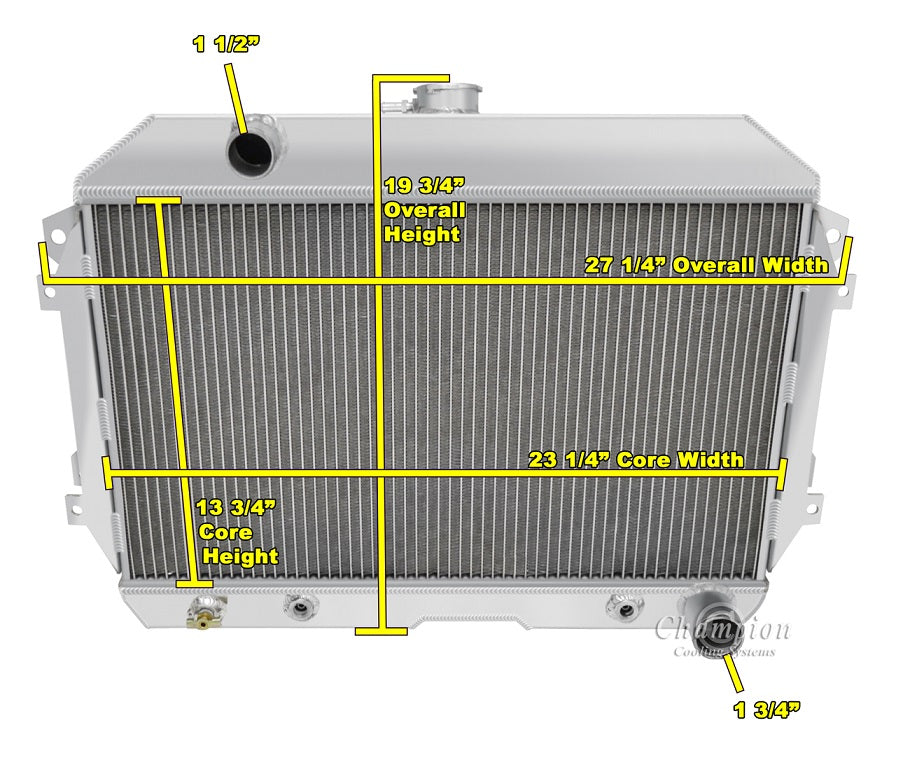

Radiator Dimensions:
Total:19.75" tall x 27.25" wide (with brackets)
Core: 13.75" tall x 23.25" wide x 2.25" thick
Tanks: 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
Aluminum shroud for 12" fans available (sold separately)
