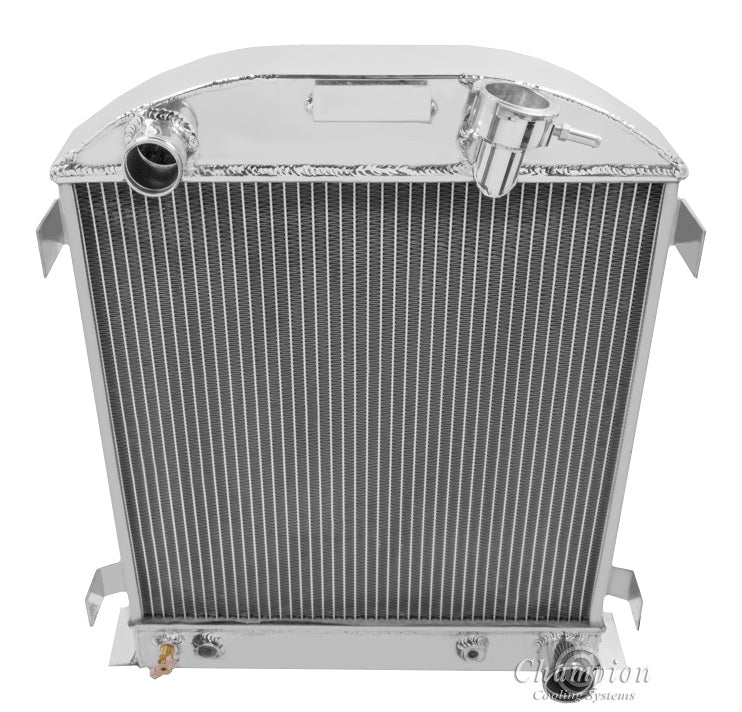

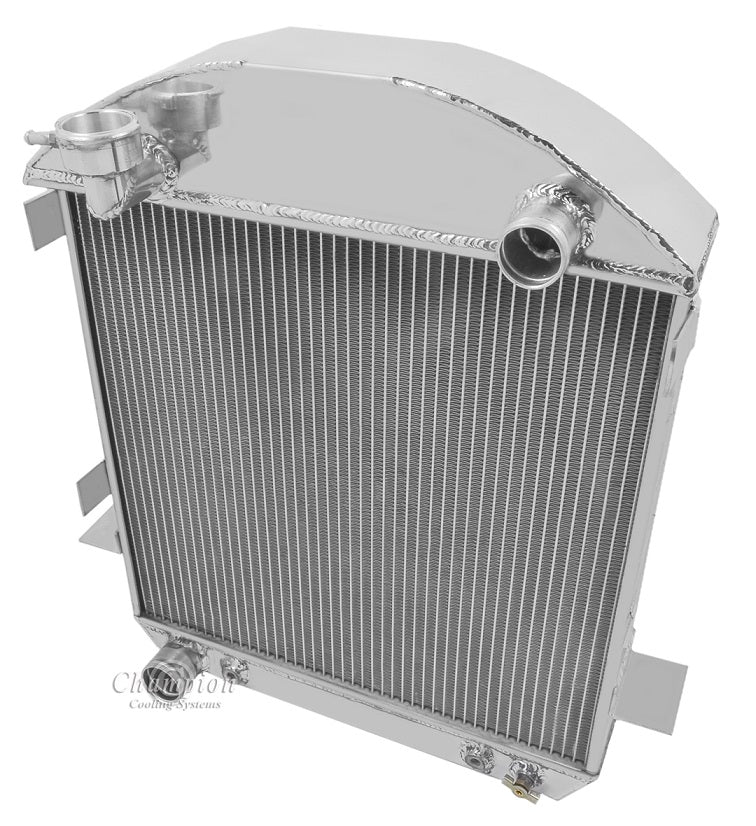

CC1009B 3 Row

All Aluminum Champion Radiator
3 Row Core | Cools up to 650hp

Radiator Dimensions:
Total: 19.75" wide (including brackets) x 22.75" tall
Core: 17.25" wide x 17" tall x 2.5" thick
Inlet: 1.5" drivers side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.75" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)

When using electric fans:
One 16" fan recommended for this core size (sold separately)

Custom shroud for electric fan(s) available upon request:
