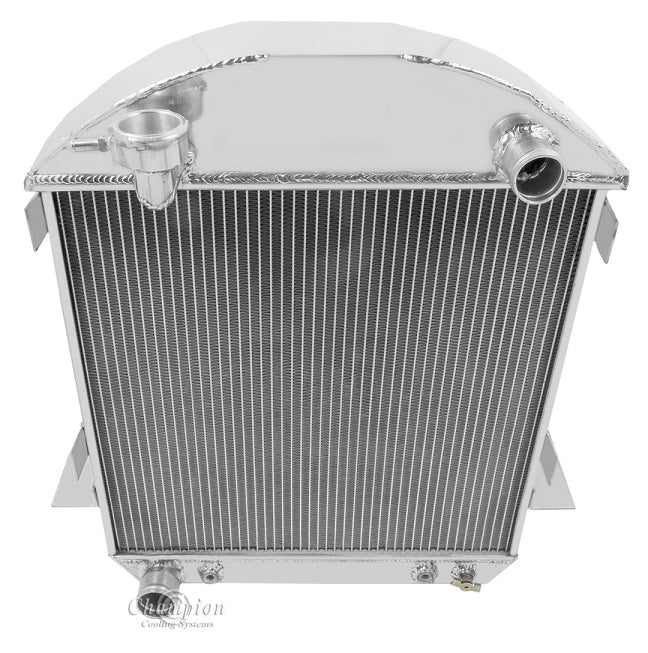

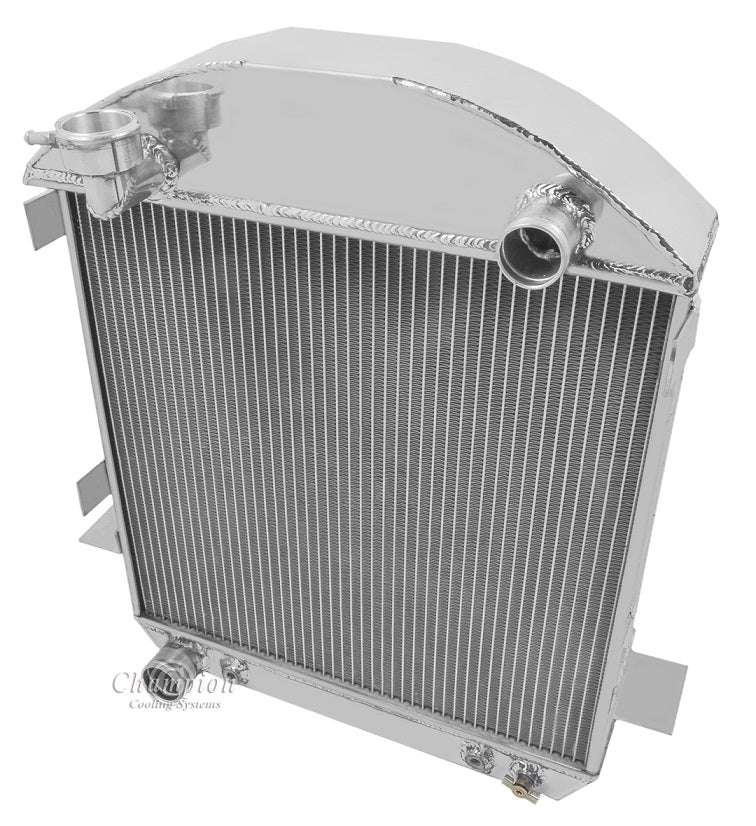

CC1007B

All Aluminum Champion Radiator
3-Row Core | Cools up to 850hp

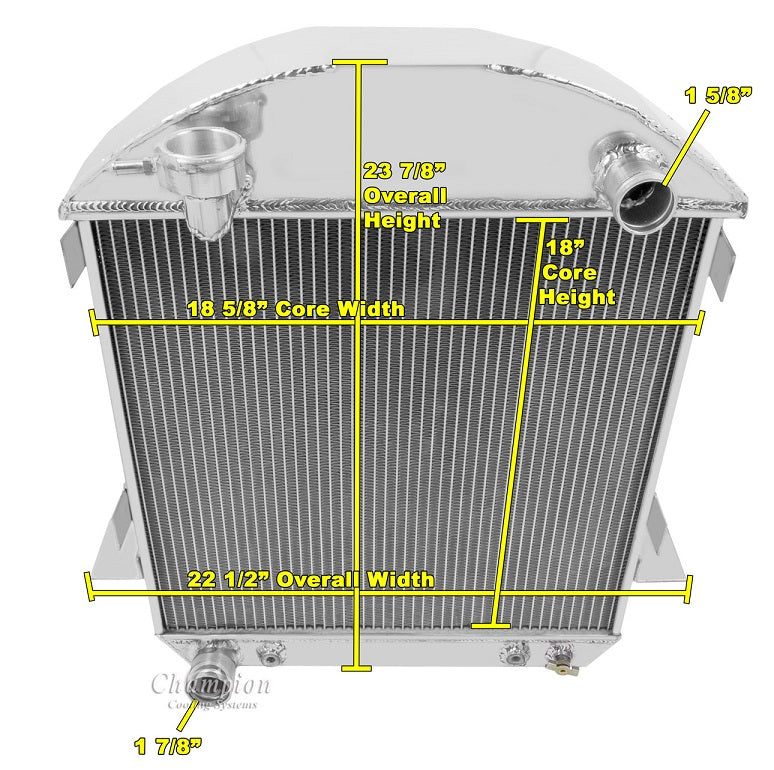

Radiator Dimensions:
Total: 23.75" tall x 22.5" wide (including brackets)
Core: 18" tall x 18.5" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: (top) 4.5" thick (bottom) 3" thick
Tubes: 0.75" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8" 27NPT)
Ford / Mopar Inlet and outlet set up

When using electric fans:
One 16" electric fan recommended for this core size (sold separately)

Custom shroud for electric fan(s) available upon request:
