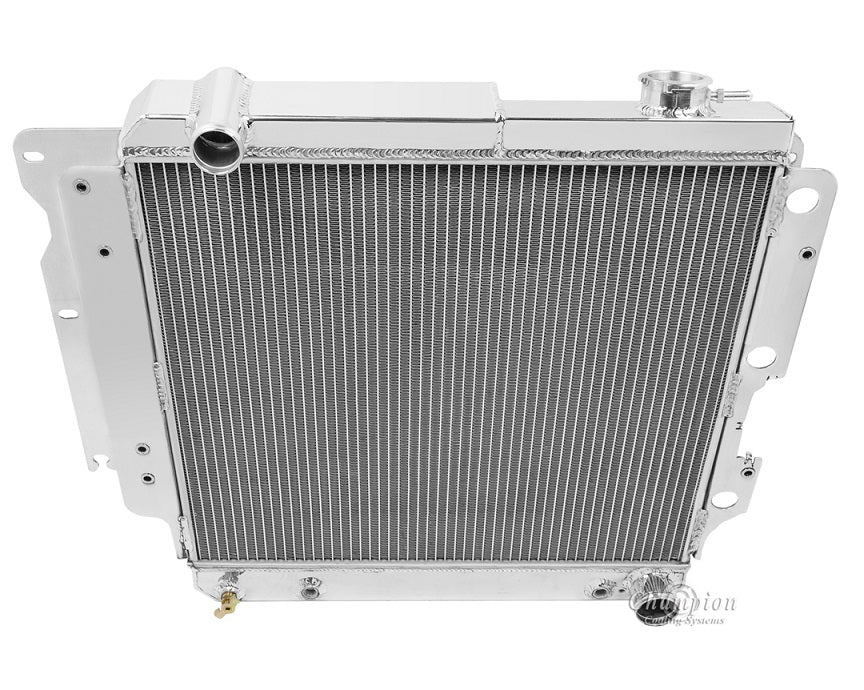

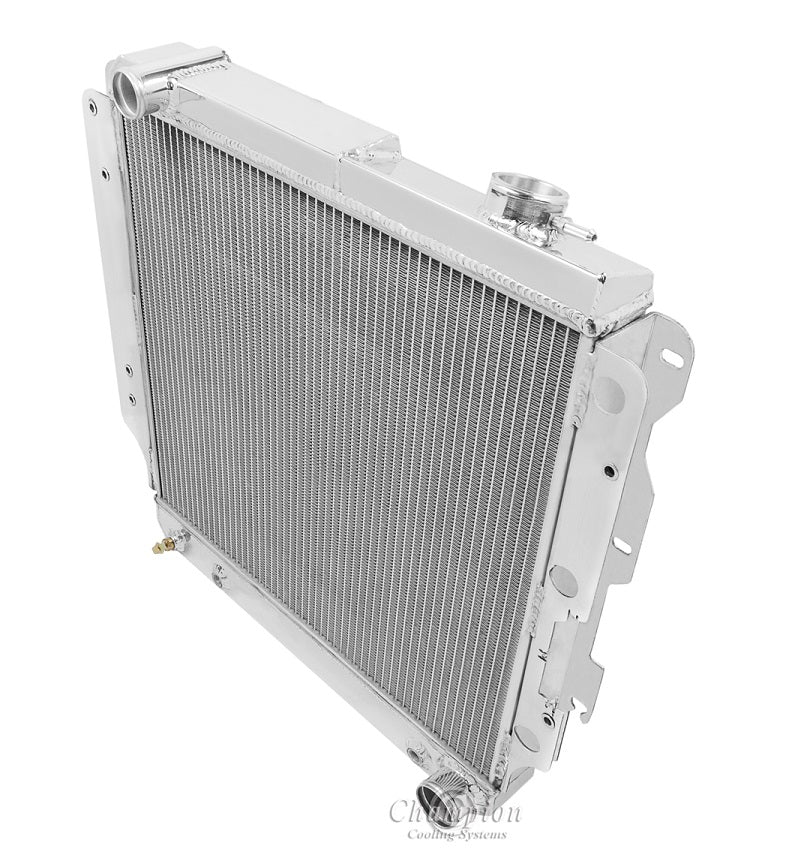

BC8101 Bar & Plate (Chevy) HD

Champion Aluminum Radiator
1-Row Core (2.38" wide) | Cools up to 550hp
For Chevy and Mopar V8 Conversions

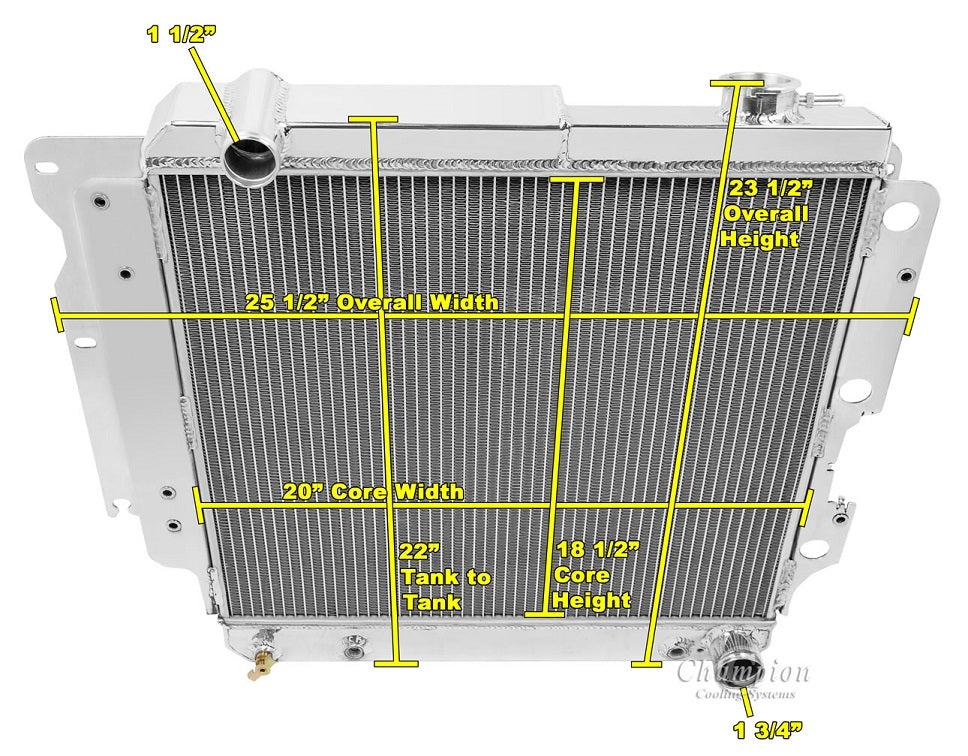

Radiator Dimensions:
Total: 23.38" tall x 25.75" wide (with brackets)
Core: 18.5" tall x 20" wide x 2.38" thick
Inlet: 1.5" Driver
Outlet: 1.75" Passenger
Tanks: 2.38" Thick
Tubes: 2.38" thick

Bracket Mounted
Rivit Nuts in shroud bracket: size M6

Transmission Cooler Included (1/2"-20 straight thread)
Radiator Cap Included

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
Aluminum Shroud is also Available - Recommended for any Off Road vehicle (sold separately)
