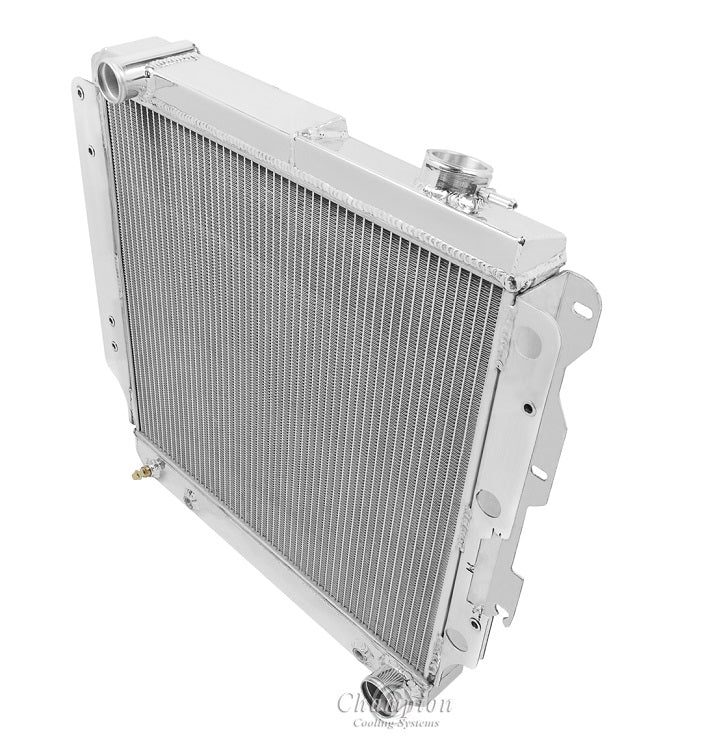

BC8101-8101FS16 Bar & Plate Combo

Champion All Aluminum Radiator PLUS

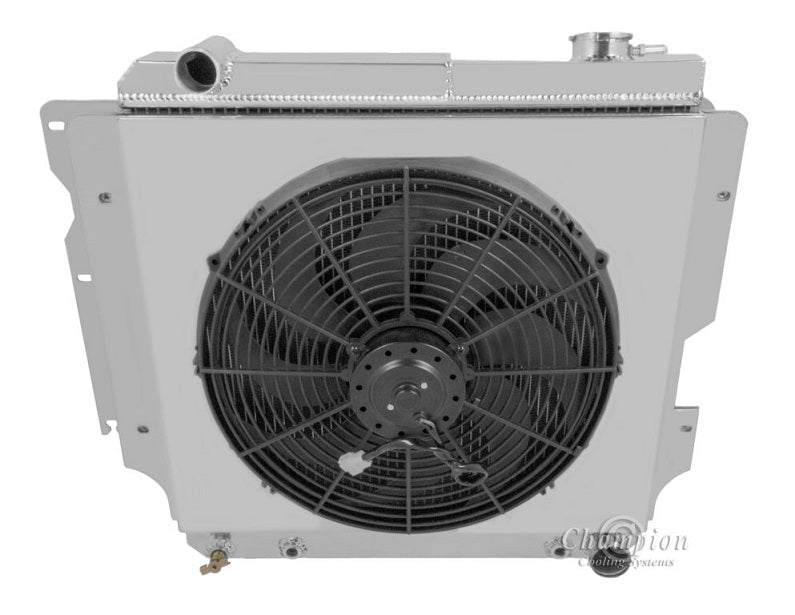

Aluminum Shroud & 16" Pro-Series Fan
Verify clearance for electric fan
Total thickness: 6" to fan motor
1-Row Bar & Plate Core | Cools up to 600hp
(For Chevy and Mopar V8 Conversions)

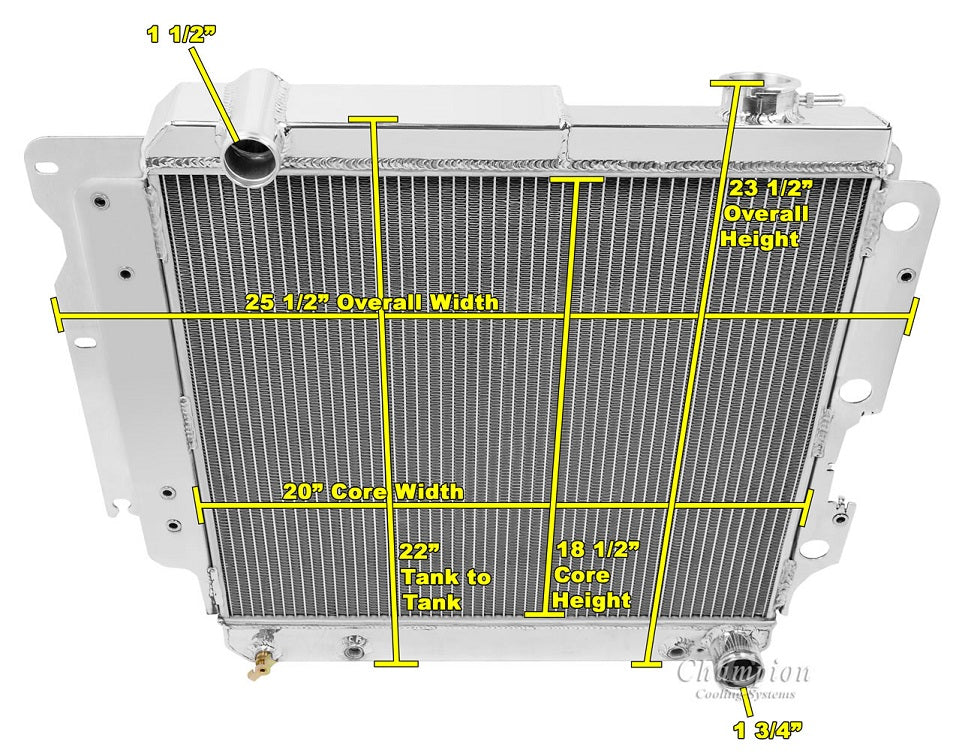

Radiator Dimensions:
Total: 23.38" tall x 25.75" wide (with brackets)
Core: 20" wide x 18.5" tall x 2.38" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 2.38" thick

Bracket Mounted
Rivit Nuts in shroud bracket: size M6

13 lb. Radiator Cap included
Transmission Cooler included (1/2"-20 sraight thread)
