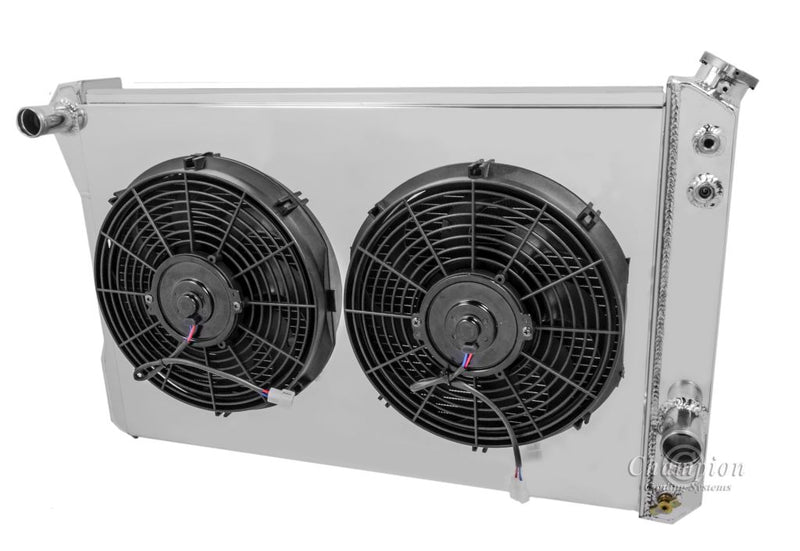

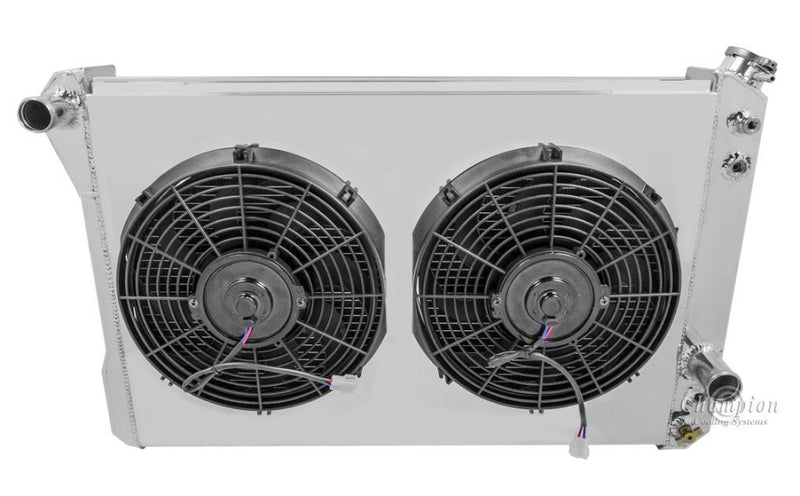

AE951-951FS12SP 2 Row 1" Tubes Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Shroud and 2-SPAL 1522 12" Fans
Fans are slightley larger than shown in photo
2-Row Core: 1" Tubes | Cools up to 700hp

Total: 18.88” Tall (20.1” Incl Cap) x 31” Wide
Core: 17” Tall x 26.25” x 2.25" Thick
Inlet: 1.5” driver side / Outlet: 1.56” pass side
Tanks: 2.75” thick
Tubes: 1" Thick

Saddle Mounted

Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)
Polished Champion 16 lb Radiator Cap included (Pictured Above)
