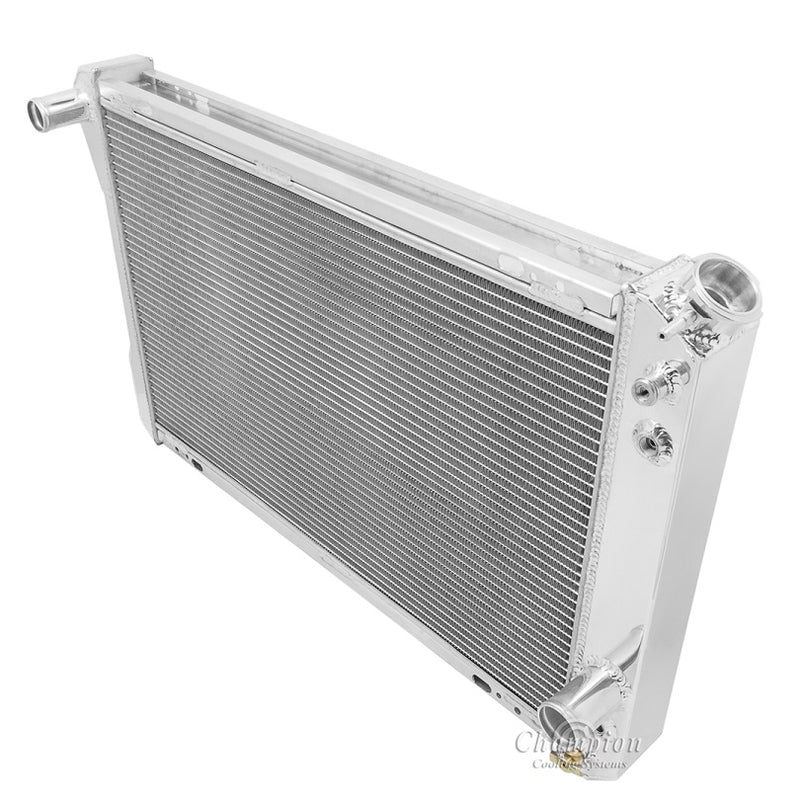

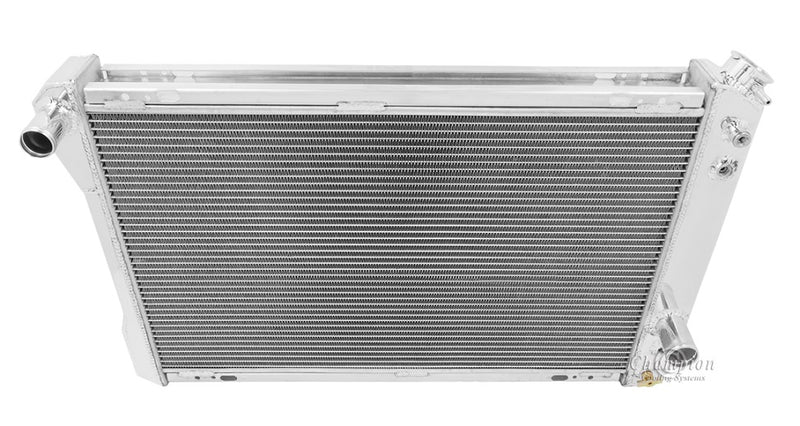

AE951 2 Row 1" Tubes

Champion All Aluminum Radiator
2-Row Core: 1" Tubes | Cools up to 700hp

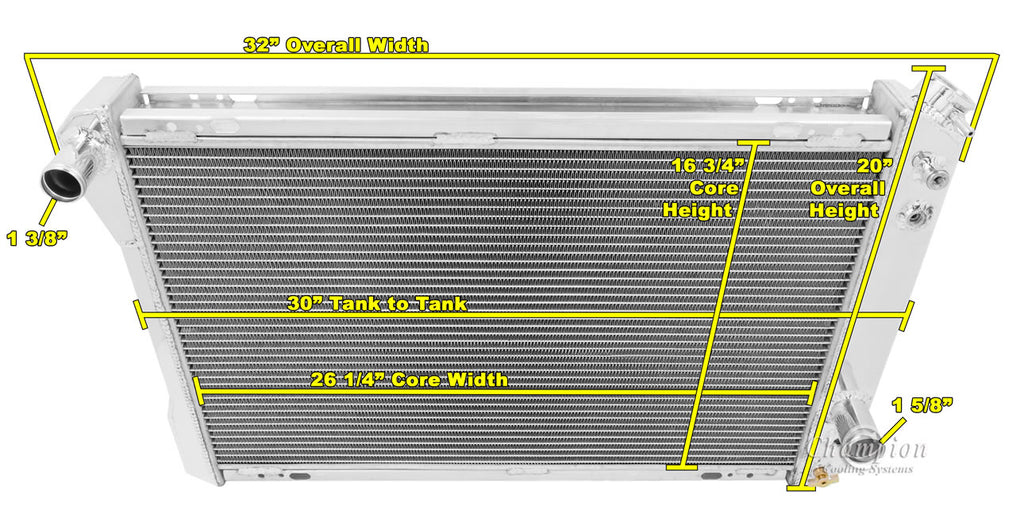

Radiator Dimensions:
Total: 18.88" tall (20.1" with cap) x 31" wide
Core: 17" tall x 26.25" x 2.25" Thick
Inlet: 1.5" driver side / Outlet: 1.56" passenger side
Tanks: 2.75” thick
Tubes: 1" Thick

Saddle Mounted

Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)
Radiator Cap Included

When using electric fans:
One 16" or Two 12" Electric fans recommended for this core size (sold separately)
Aluminum Shroud for a 16" fan is also Available (sold separately)
