AE829 2 Row 1" Tubes

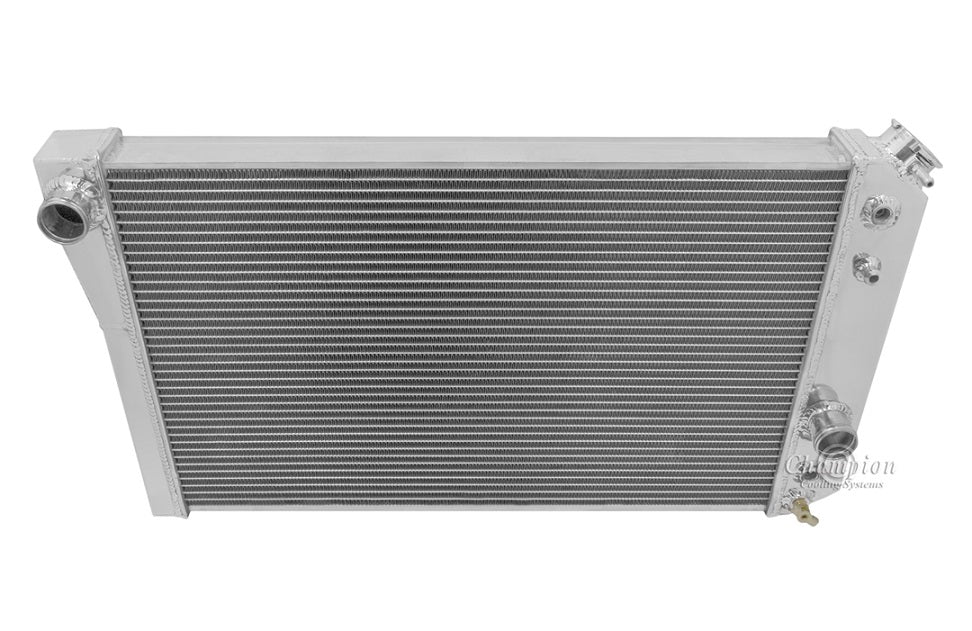

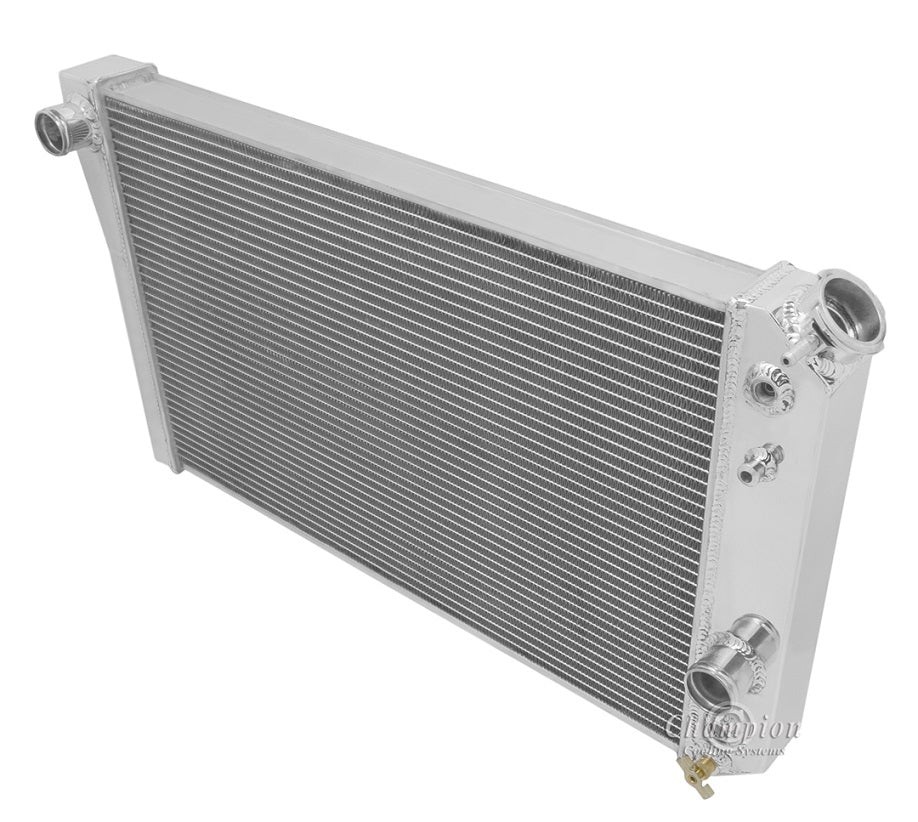

Champion All Aluminum Radiator
2-Row Core: 1" thick tubes | Cools up to 600hp

Radiator Dimensions:
Total: 16.5" tall x 28.5" wide
Core: 15" tall x 23.63" wide x 2.25" thick
Inlet: 1.5" driver
Outlet: 1.5" Pass
Tanks: 2.5" thick
Tubes: 1" thick

Saddle Mounted

Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)
Radiator Cap Included

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
