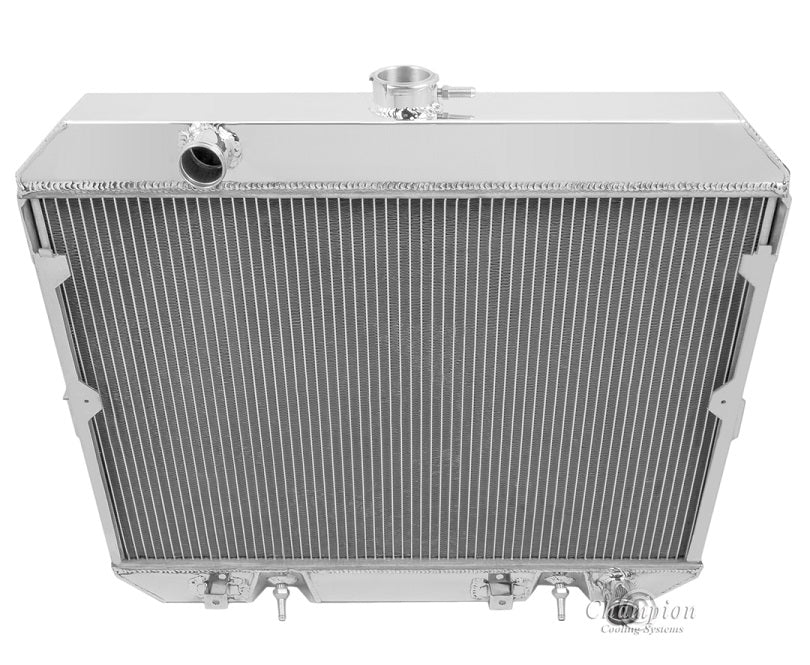

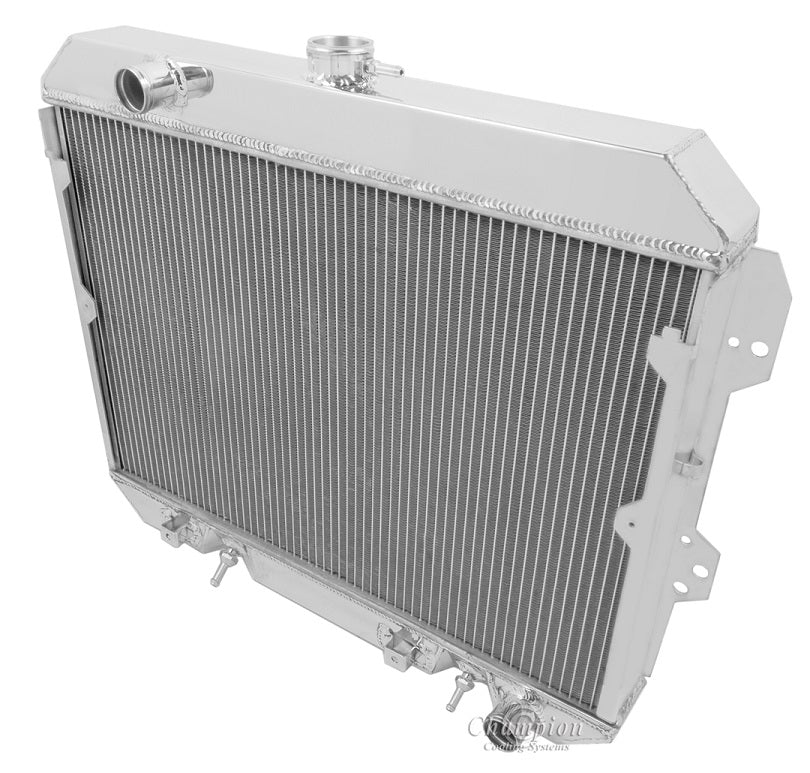

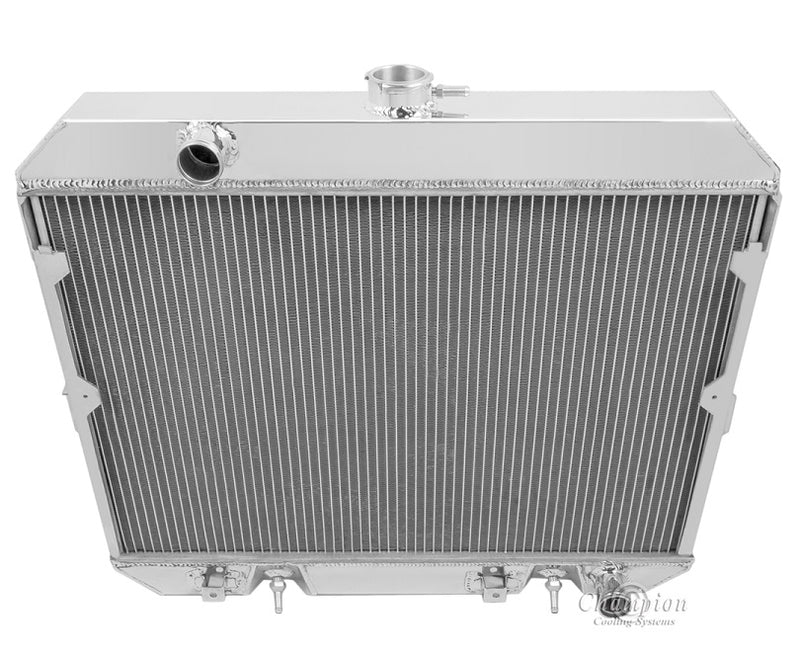

AE800 2 Row 1" Tubes

All Aluminum Champion Radiator
2-Row Core: 1" Tubes | Cools up to 550hp

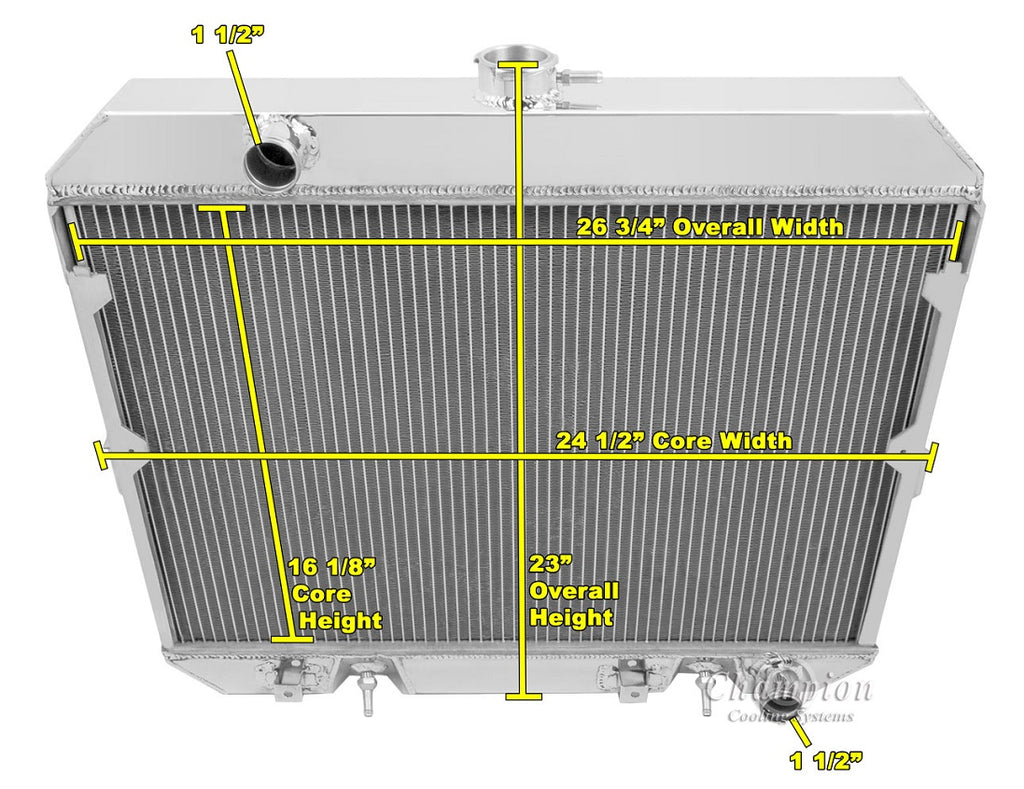

Radiator Dimensions:
Total: 23" (with cap) x 26.75" (including brackets)
Core: 16.125" tall x 24.5" wide x 2.25" thick
Inlet: 1.5" drivers side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included ( Metric 12-1.25)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
