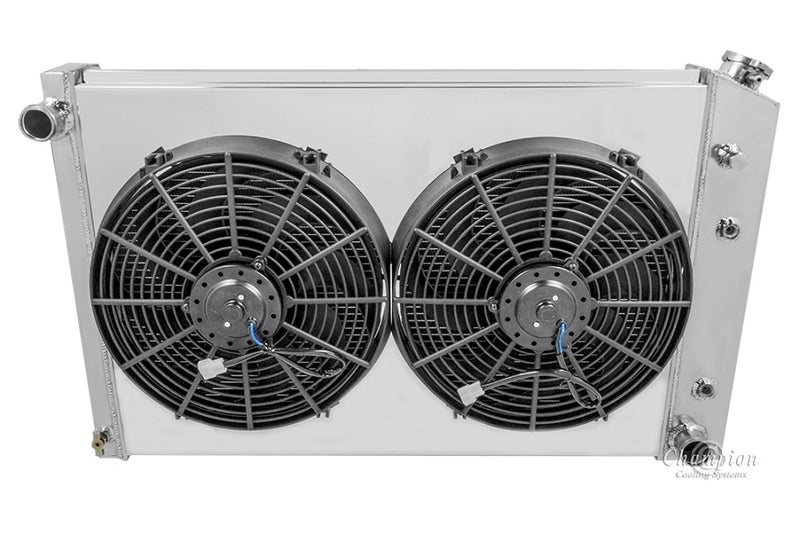

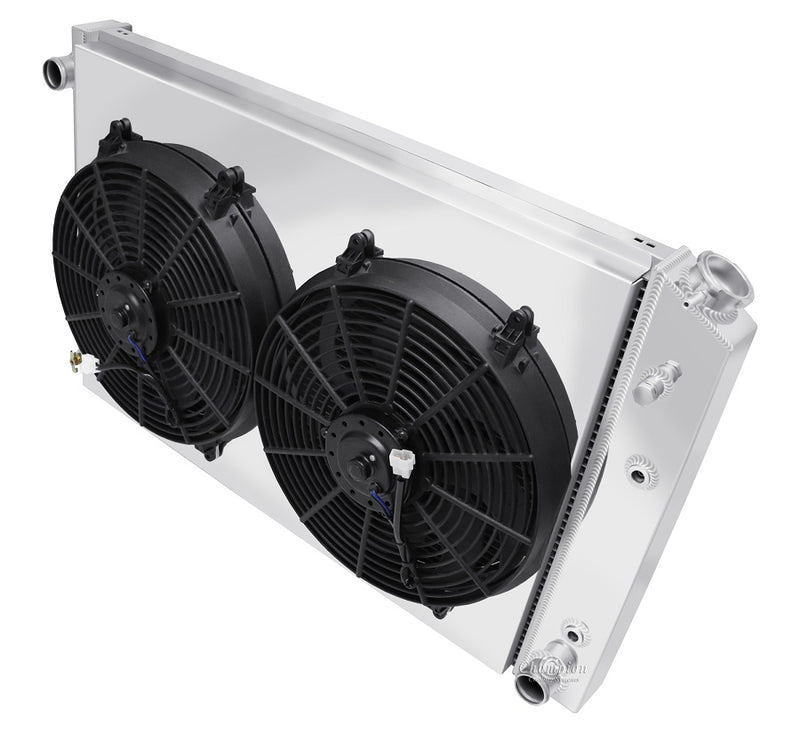

AE716-716FS14 2 Row 1" Tubes 19" Tall Core

Champion All Aluminum Radiator PLUS
Aluminum Shroud & Two 14" Pro-Series Fans
Verify clearance for electric fan
Total thickness: 6" to fan motor
2-Row Core | Cools up to 850hp | 1" Thick Tubes

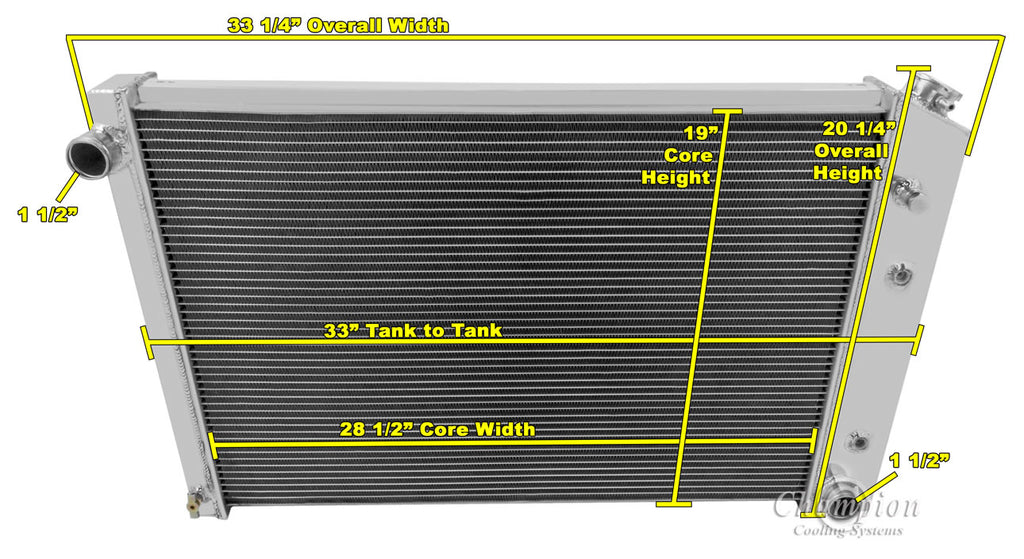

Radiator Dimensions:
Total: 20.5" tall (21.13" with cap) x 33" wide
Inlet: 1.5" driver side
Outlet: 1.5" pass side
Core: 19" tall x 28.25" wide x 2.25" thick
Tanks: 2.75" thick
Tubes: 1" thick

Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)
Polished Champion 16 lb Radiator Cap included

Saddle Mounted

Entire set up is about 6.5" thick to back of fans
5.25" Thick in the center around the edge of the fans.
