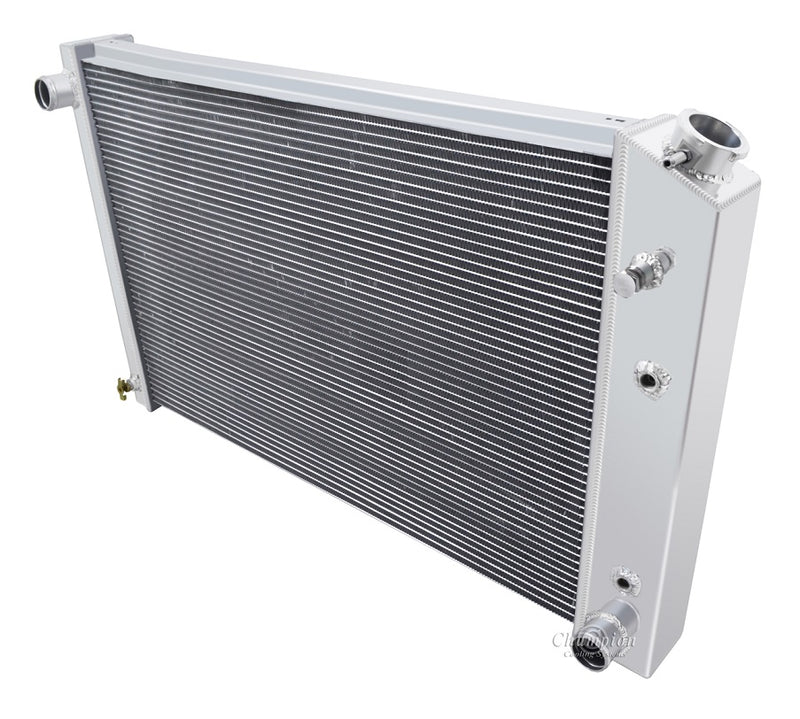

AE716 2 Row 1" Tubes 19" Tall Core

Champion All Aluminum Radiator
2-Row Core | Cools up to 850hp | 1" Thick Tubes

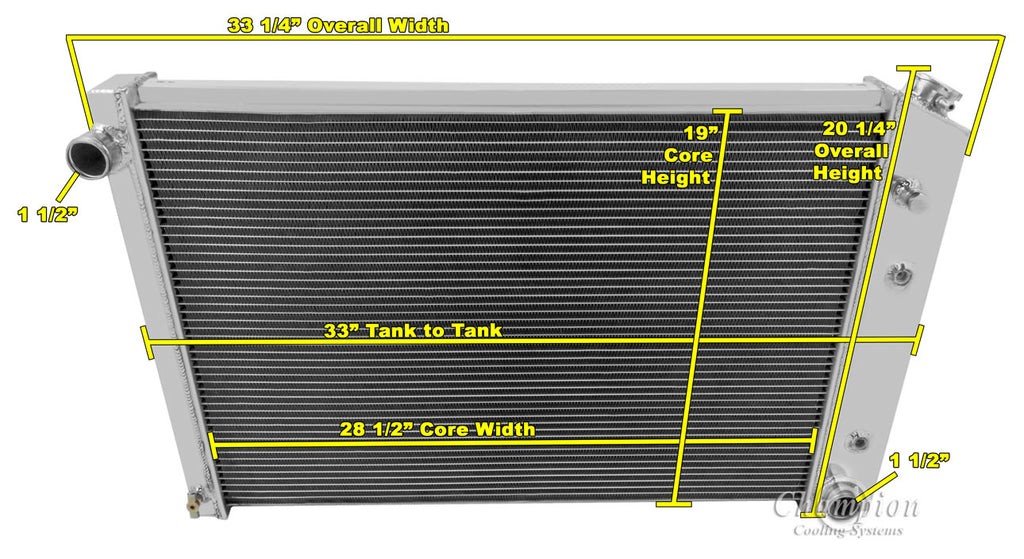

Radiator Dimensions:
Total: 20.5" tall (21.13" with cap) x 33.13" wide
Core: 19" tall x 28.25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 1" thick

16 lb. Radiator Cap Included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)

Saddle Mounted

When using electric fans:
One 16" or two 14" Electric fans recommended for this core size (sold separately)
