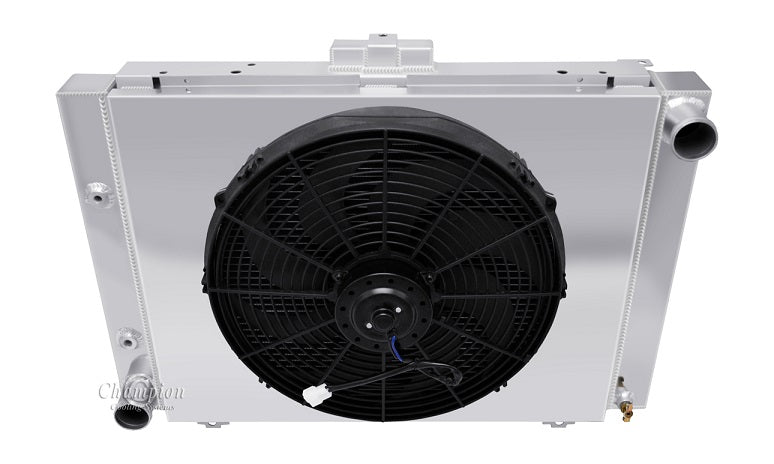

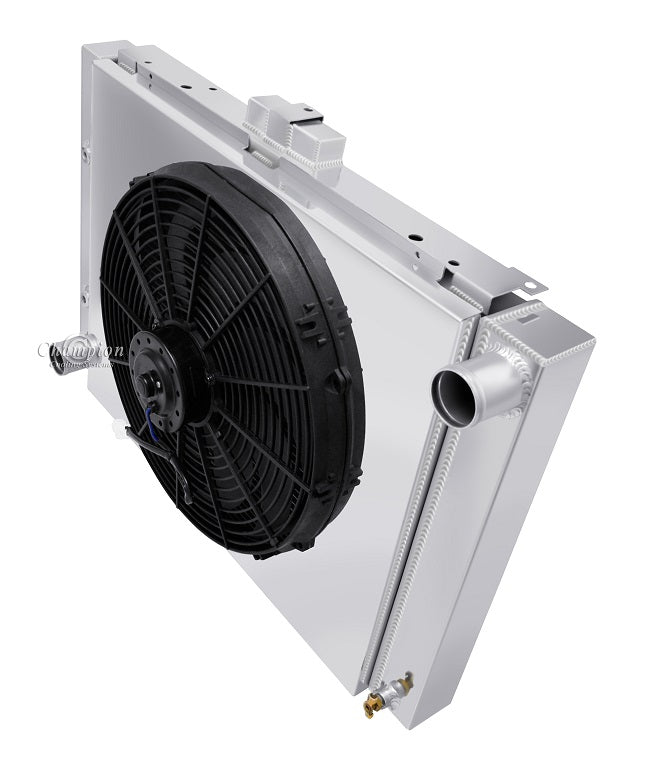

AE64GL-64GLFS16 2 Row 1" Tubes

Champion All Aluminum Radiator
Includes Ledfoot Racing Aluminum Shroud and 16" Electric Fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
2-Row Core | Cools up to 600hp | 1" Thick Tubes

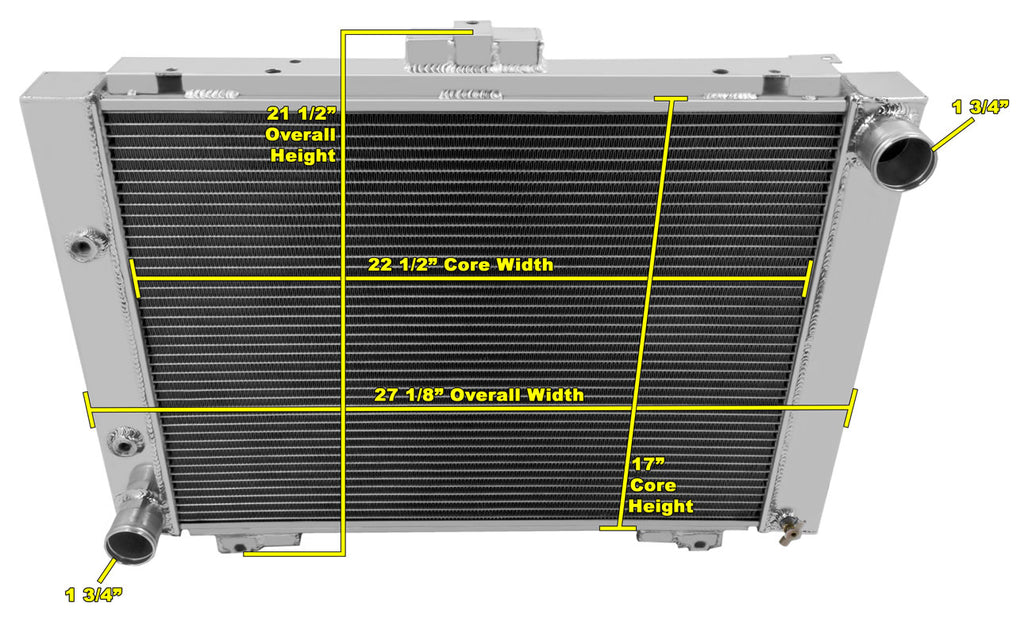

Radiator Dimensions:
Total: 21" x 27" wide
Core: 17.25" tall x 22.5" wide x 2.2" thick
Inlet: 1.75" passenger
Outlet: 1.75" driver
Tanks: 2.5" thick
Tubes: 1" thick

Saddle Mounted
Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler included (1/8" 27npt)
