AE64GL 2 Row 1" Tubes

Champion All Aluminum Radiator
2-Row Core | Cools up to 600hp | 1" Thick Tubes

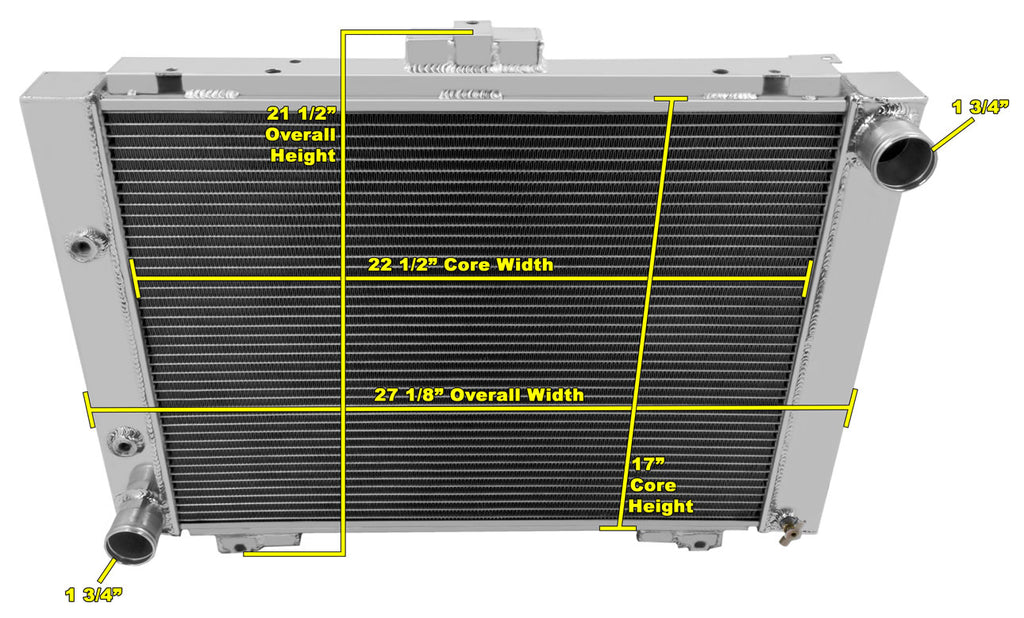

Radiator Dimensions:
Total: 21.5" tall (with cap) x 27.1" wide
Core: 17" tall x 22.5" wide x 2.25" thick
Inlet: 1.75" Passenger side
Outlet: 1.75" Driver side
Tanks: 2.75" thick
Tubes: 1" thick

Saddle Mounted

Transmission Cooler included (1/8" 27npt)
