Description
Champion All Aluminum Radiator Plus
Ledfoot Racing Shroud & (2) SPAL 11" Fans
Verify clearance for electric fan
Total thickness: 5" to fan motor
2-Row 1" Core | Cools up to 600hp

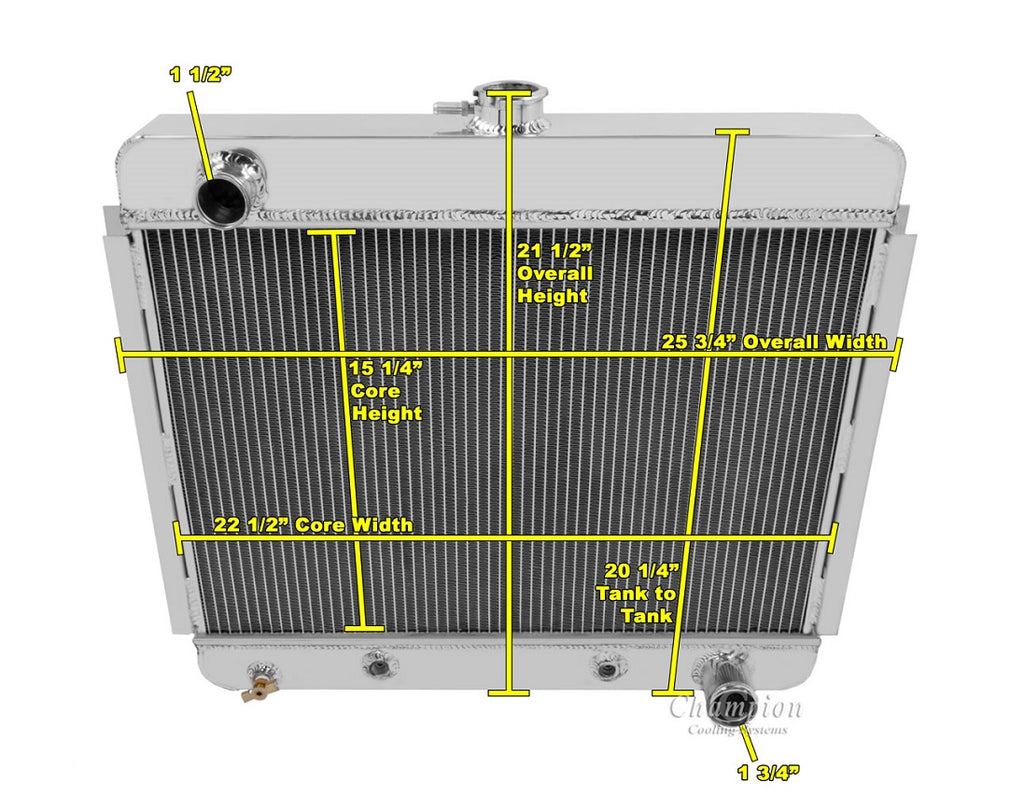

AE6267 Radiator Dimensions:
Total: 21.25" tall (with cap) x 25.5" wide (including brackets)
Core: 15.25" tall x 22" wide x 2.25" thick
Inlet: : 1.5" Driver side
Outlet: 1.75” Passenger side
Tanks: 2.75" thick
Tubes: 1" thick
Bracket Mounted
Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler Included (1/2"- 20 straight thread)

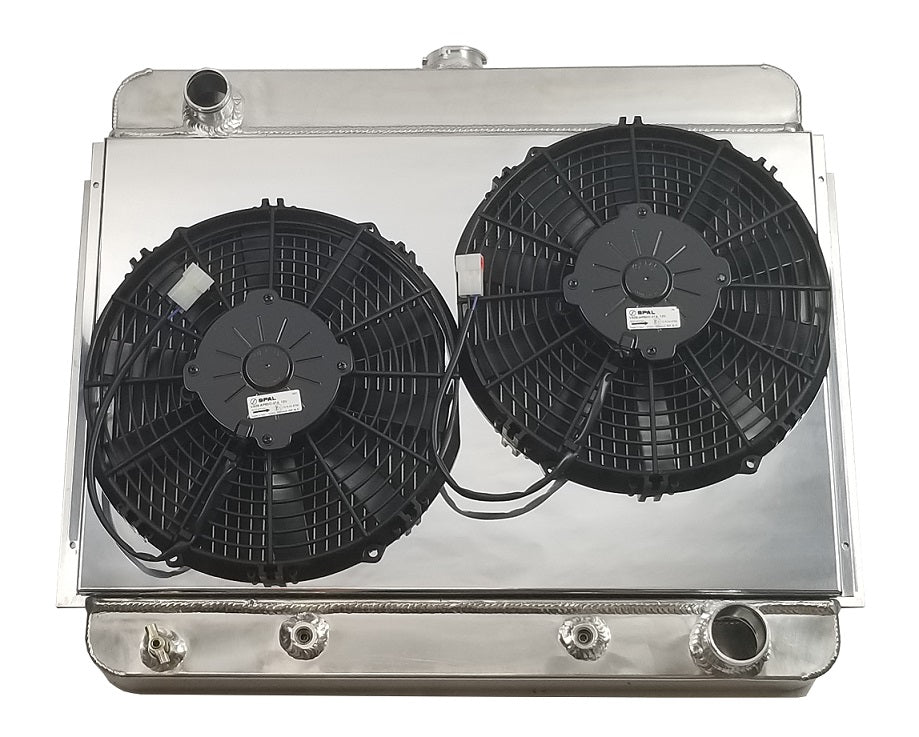

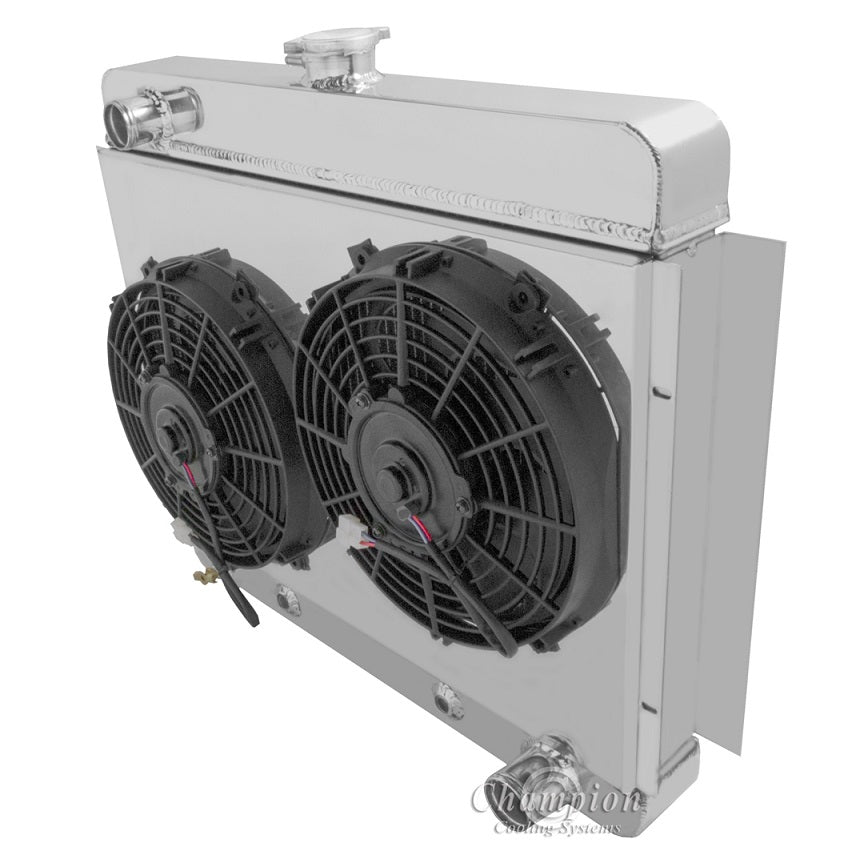

Ledfoot Racing Shroud & (2) SPAL 11" Fans
Verify clearance for electric fan
Total thickness: 5" to fan motor
2-Row 1" Core | Cools up to 600hp
AE6267 Radiator Dimensions:
Total: 21.25" tall (with cap) x 25.5" wide (including brackets)
Core: 15.25" tall x 22" wide x 2.25" thick
Inlet: : 1.5" Driver side
Outlet: 1.75” Passenger side
Tanks: 2.75" thick
Tubes: 1" thick
Bracket Mounted
Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler Included (1/2"- 20 straight thread)
