AE6267 2 Row 1" Tubes

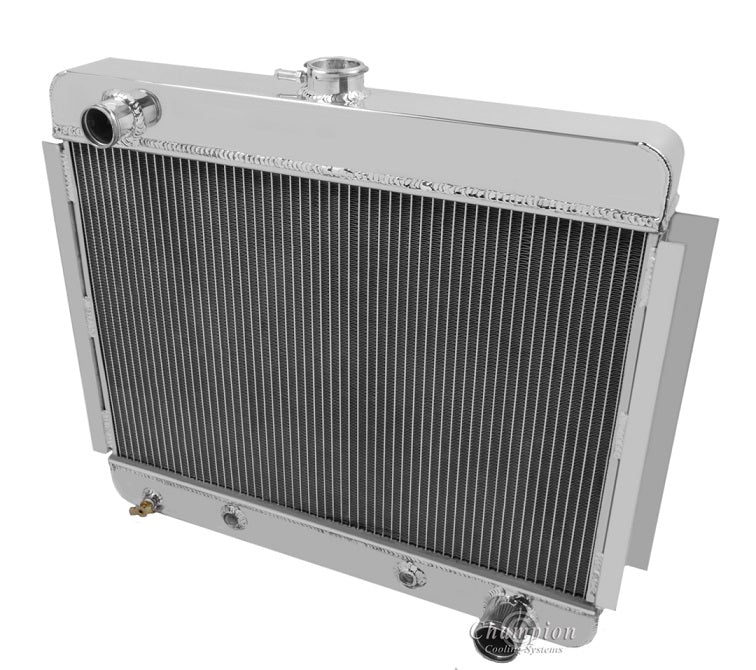

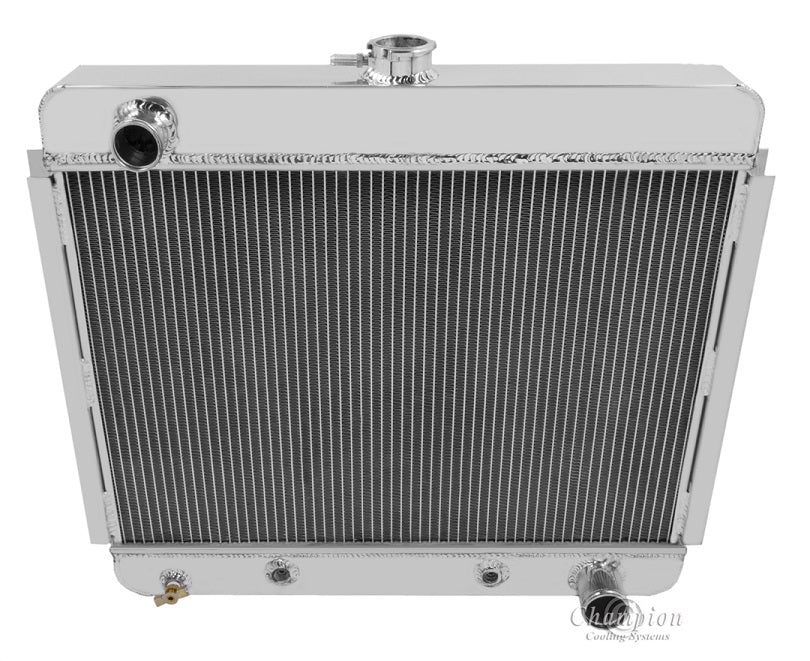

Champion All Aluminum Radiator
2-Row Core with 1"tubes | Cools up to 500hp

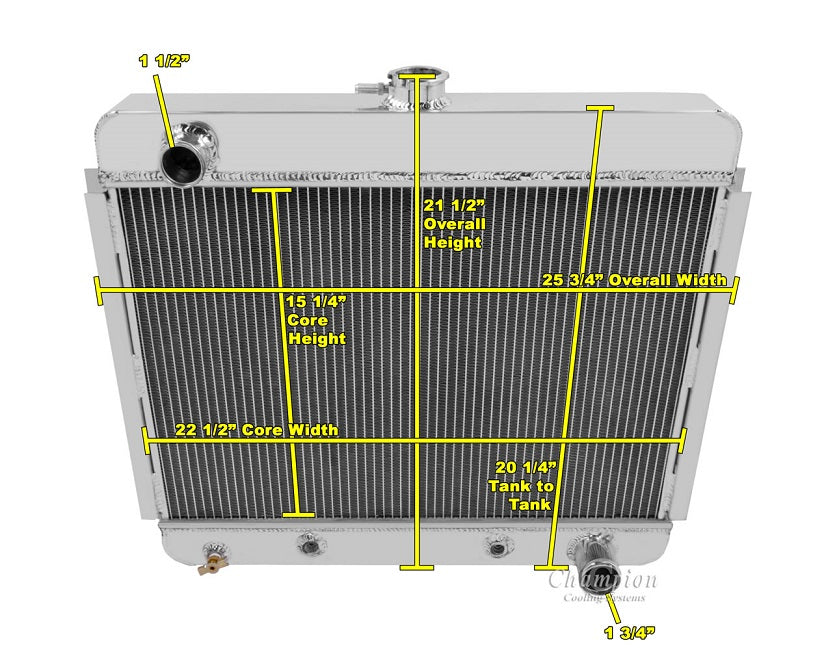

AE6267 Radiator Dimensions:
Total: 21.25" tall (with cap) x 25.5" wide (including brackets)
Core: 15.25" tall x 22" wide x 2" thick
Inlet: : 1.5" Driver side
Outlet: 1.75” Passenger side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mounted

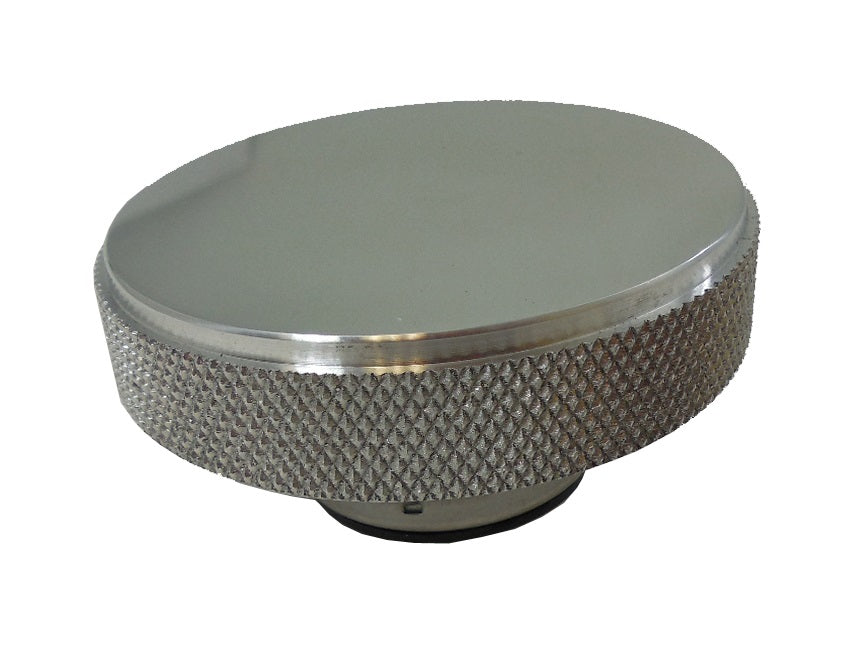

Billet Aluminum Radiator Cap Included
Transmission Cooler Included (1/2"- 20 straight thread)
