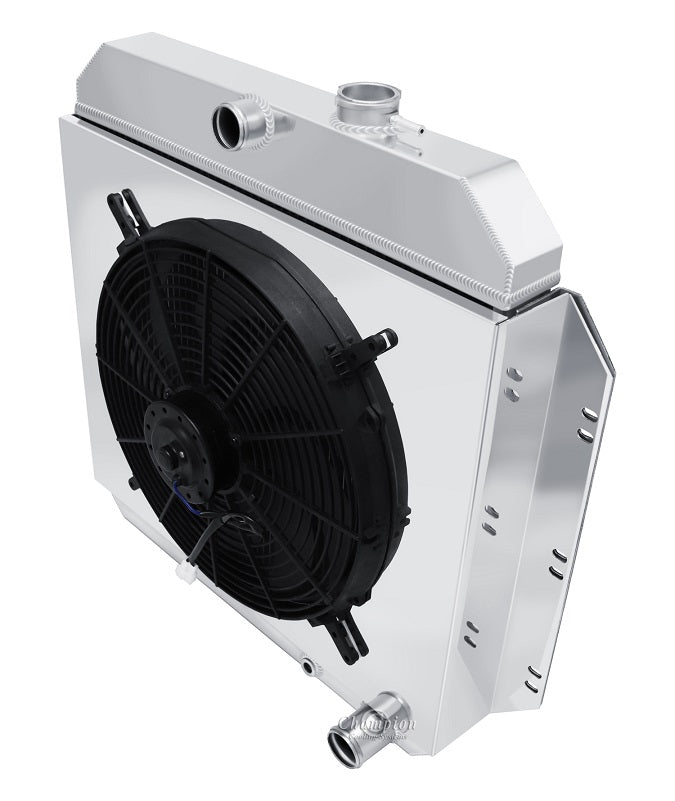

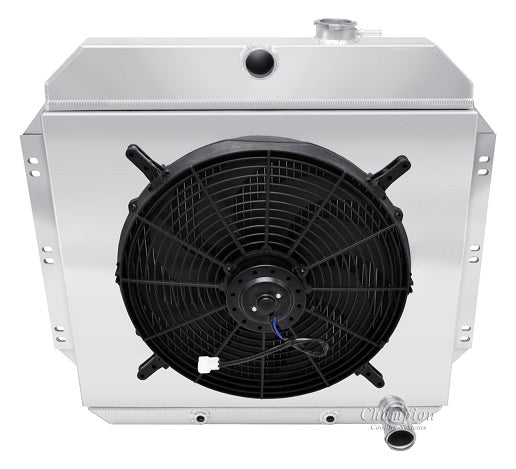

AE6062-6062FS16 2 Row 1" Tubes

Champion All Aluminum Radiator
Plus Ledfoot Racing Shroud and 16" fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
2-Row Core: 1" Thick Tubes | Cools 600hp
($20 Discount)

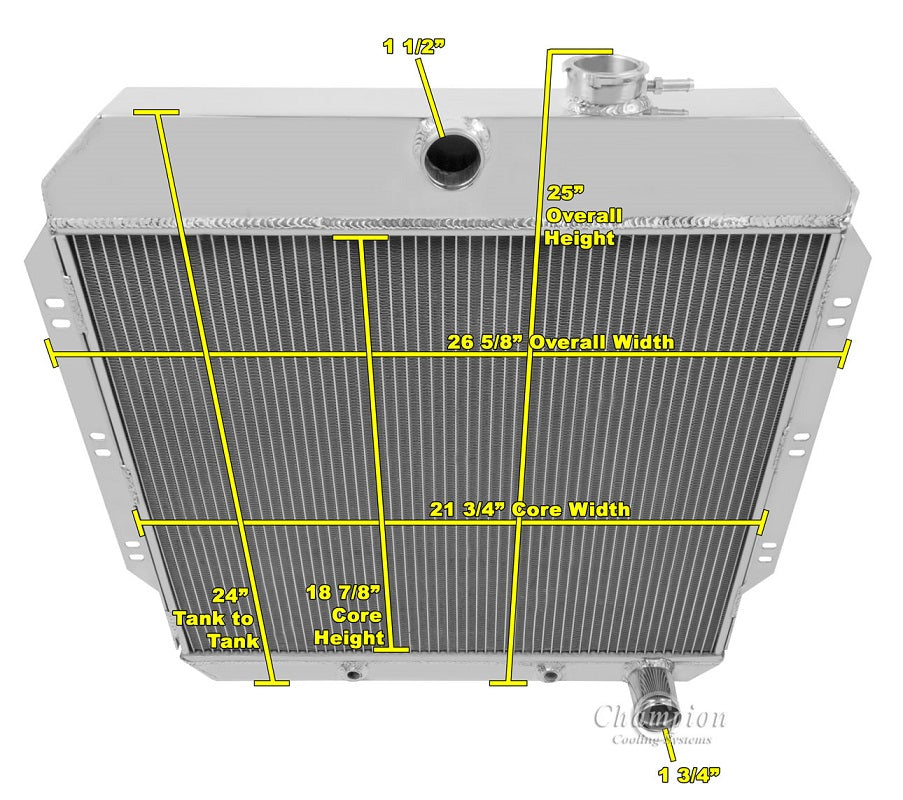

Radiator Dimensions:
Total: 25" tall (with cap) x 26.63" (with brackets)
Core: 18.88" tall x 21.75" wide x 2.25" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.75" thick

Bracket Mounted

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler Included (1/2"-20 straight thread)
