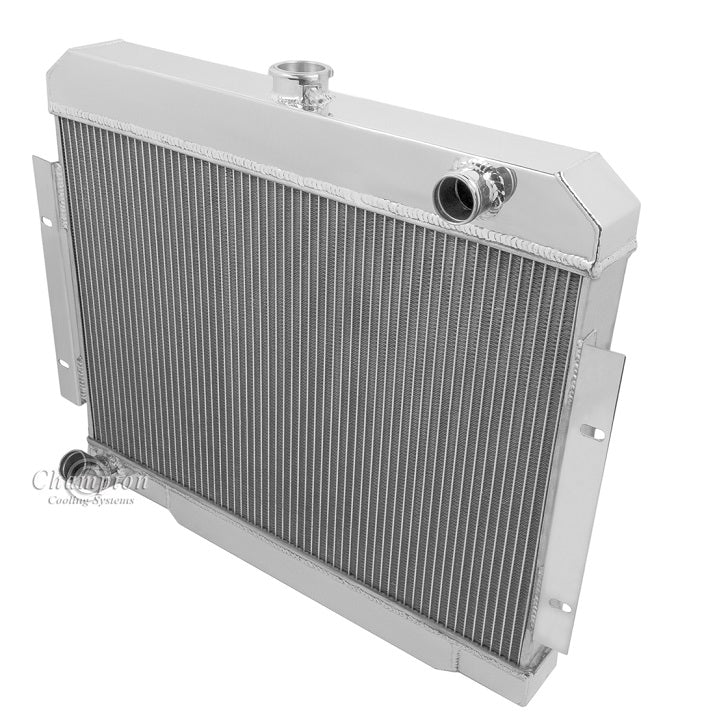

AE583 2 Row 1" Tubes

Champion All Aluminum Radiator
2-Row Core 1 " Tubes | Cools up to 600hp

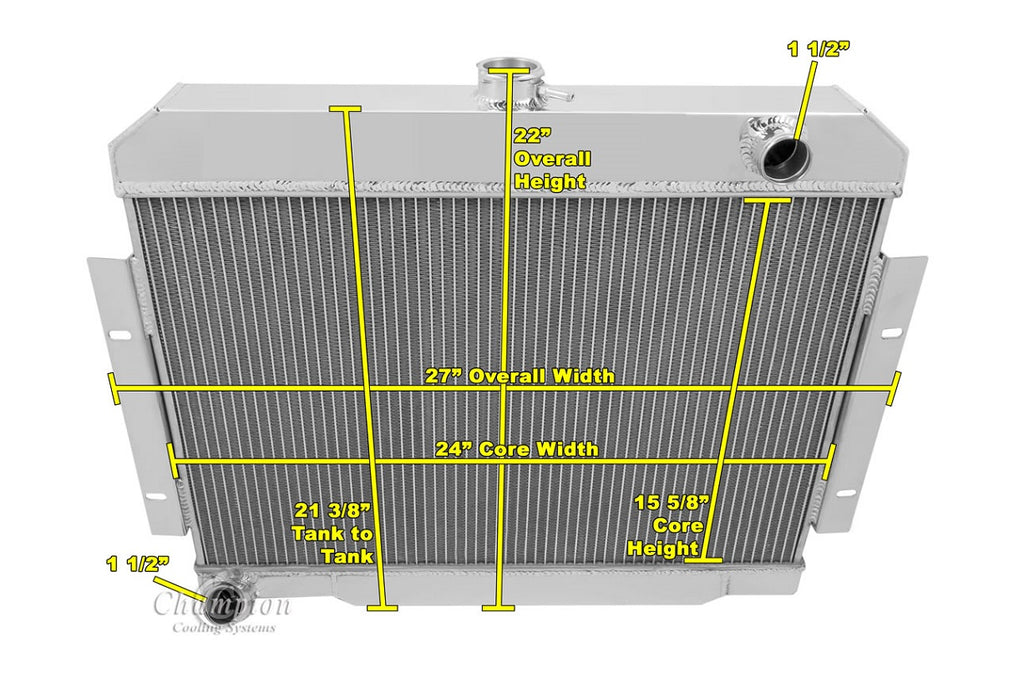

Radiator Dimensions:
Total: 22" tall x 27" wide (including brackets)
Core: 15.63" tall x 24" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet 1.5" driver side
Tanks: 2.5" thick
Tubes: 1" thick

Bracket Mounted

Radiator Cap included
Transmission Cooler included (1/8"-27npt)

When using electric fans:
One 16" fan recommended for this core size (sold separately)
