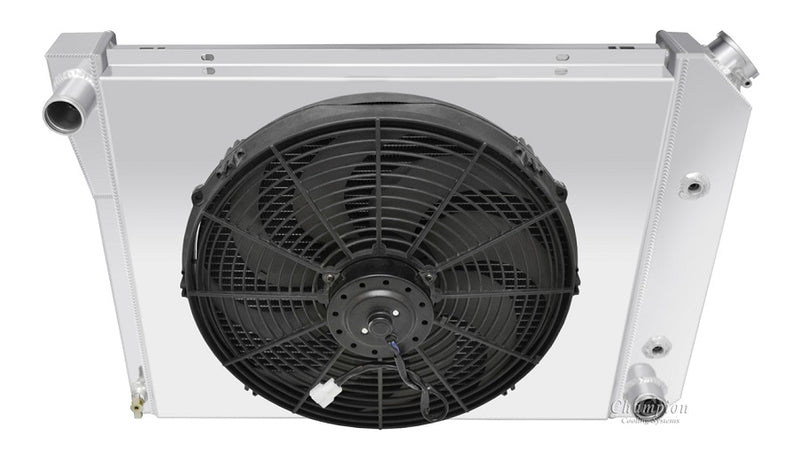

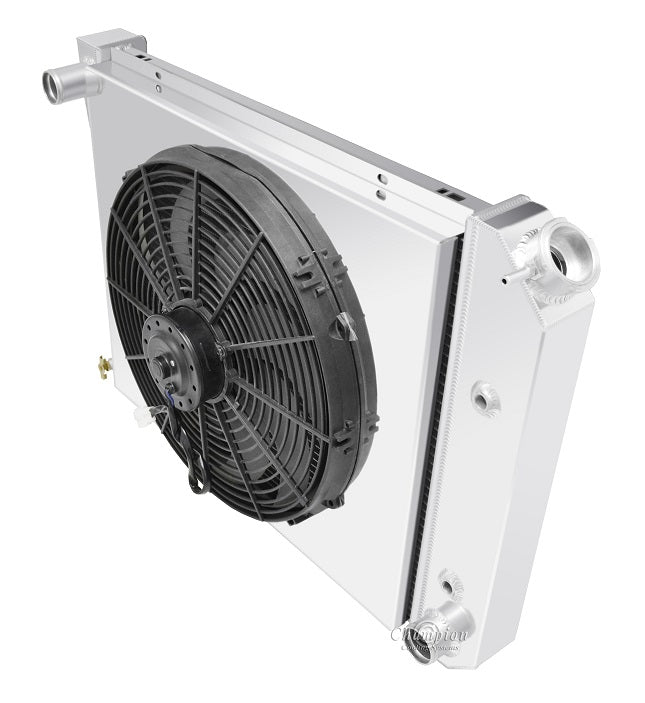

AE571-571FS16 2 Row 1" Tubes

Champion All Aluminum Radiator
Plus Ledfoot Racing Custom Shroud and 16" Fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
2-Row Core: 1" Thick Tubes | 500hp Rating
($20 Discount)

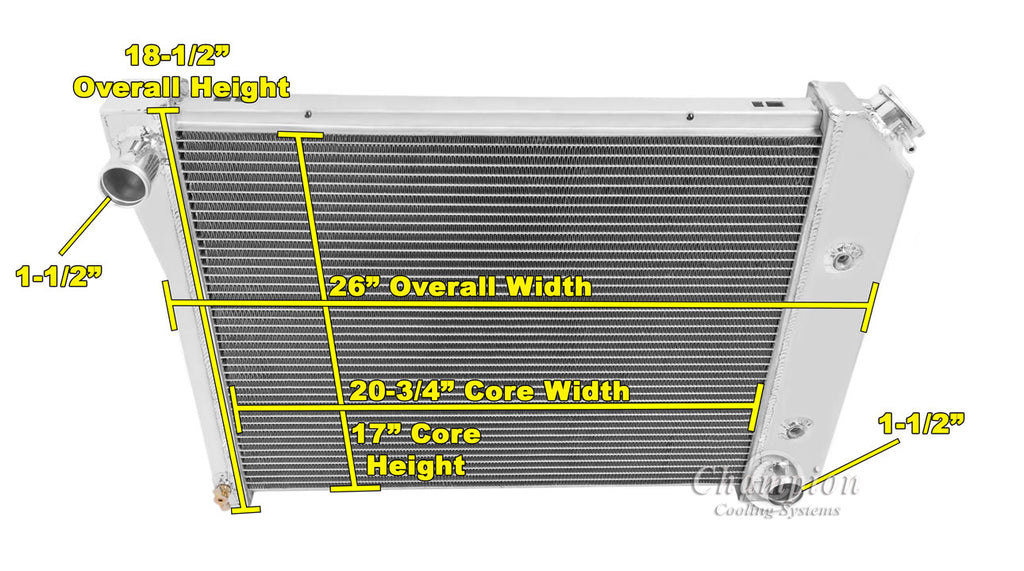

Total: 18.5" tall (18.75" with cap) x 27" wide
Core: 16.75" tall x 21.25" wide x 2.25" thick
Inlet: 1.5” driver side / Outlet: 1.5” pass side
Tanks: 2.5” thick
Tubes: 1" thick

Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)
Polished Champion 16 lb Radiator Cap included (Pictured Above)

Saddle Mounted
