AE5356-5356FS16 2 Row 1" Tubes

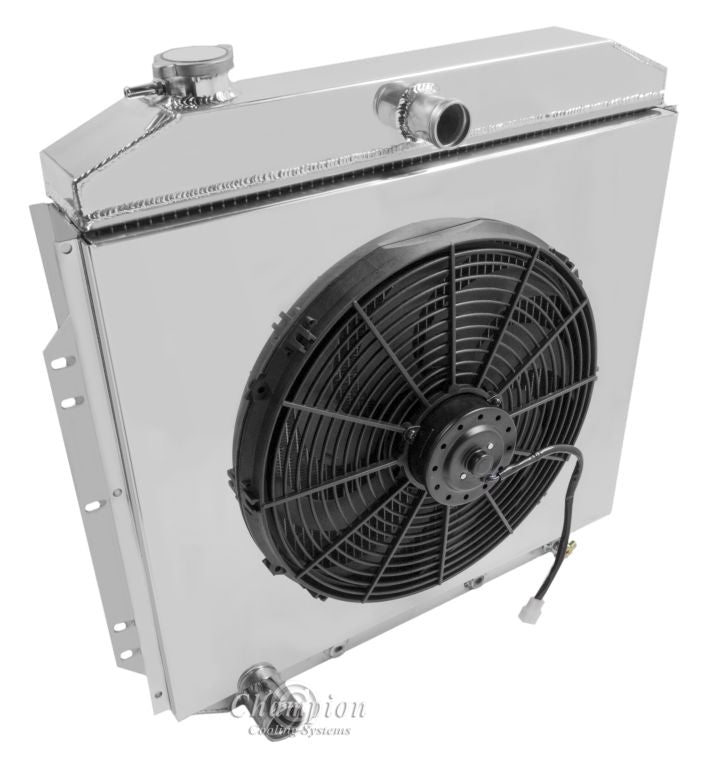

Champion All Aluminum Radiator PLUS

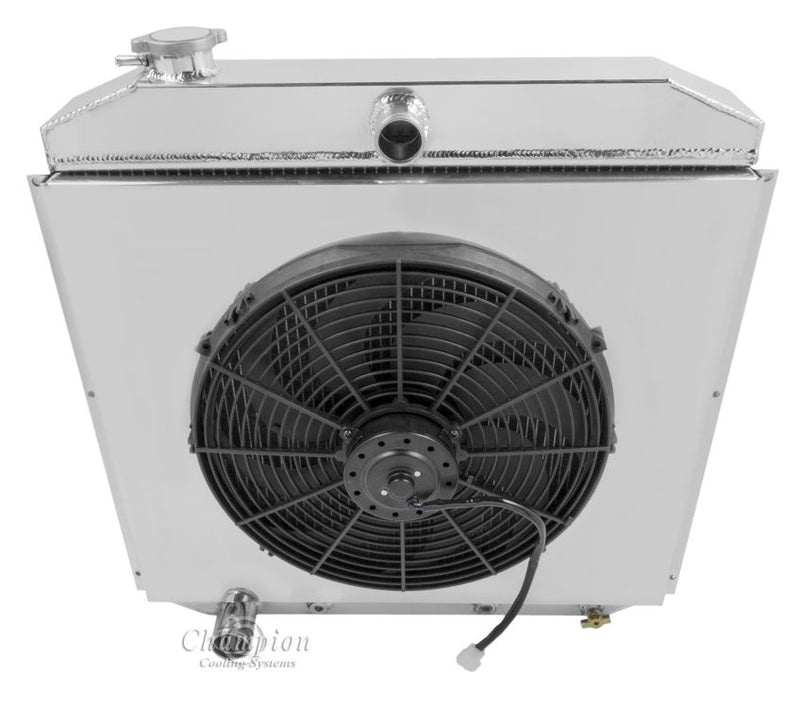

Ledfoot Racing Aluminum Shroud & 16" Pro-Series Fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
2-Row Core; 1" Thick tubes | 600hp Rating

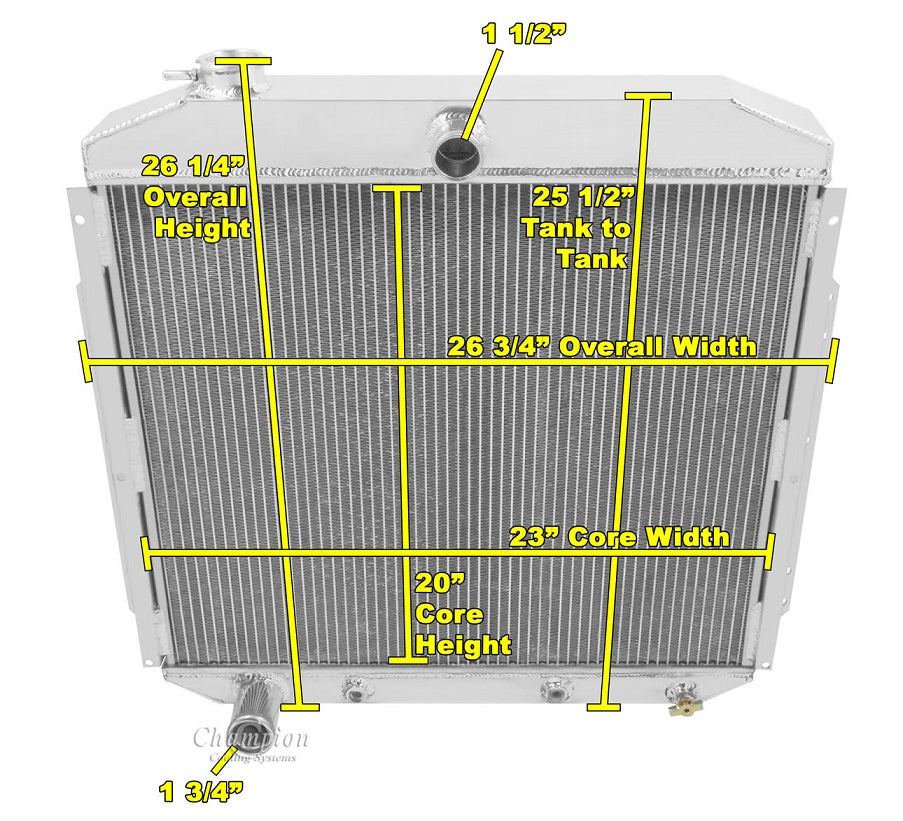

Radiator Dimensions:
Total: 26.25" tall (with cap) x 26.75" wide (with brackets)
Core: 20" Tall x 23" Wide x 2.25" Thick
Inlet: 1.5"
Outlet: 1.75"
Tanks: 2.75” Thick
Tubes: 1" thick

Bracket Mounted

Transmission Cooler Included (1/8-27 NPT)

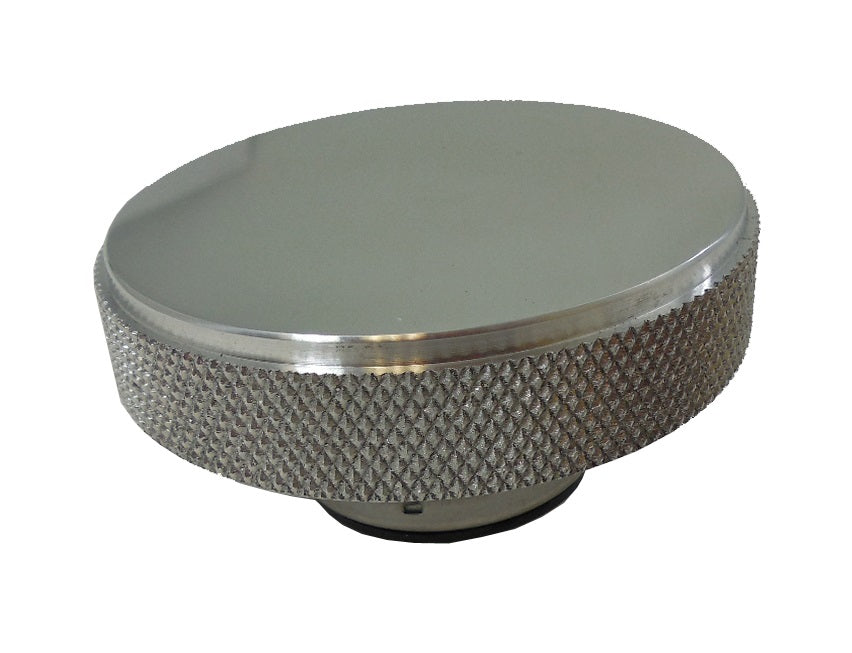

Polished Champion 16 lb Radiator Cap included (Pictured Above)

Bracket Specs: Vert - 18.5" Hor - 24.88"
