AE522-522FS16 2 Row 1" Tubes

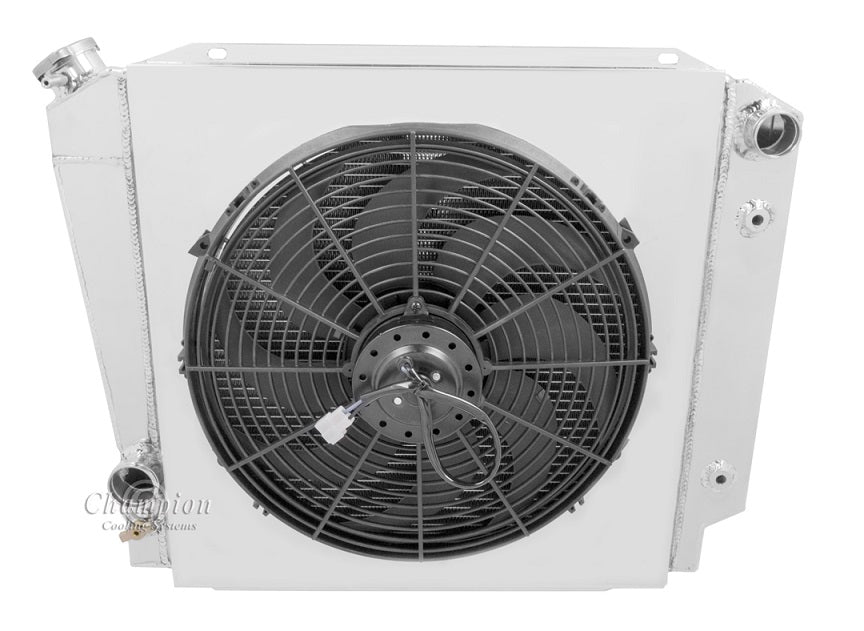

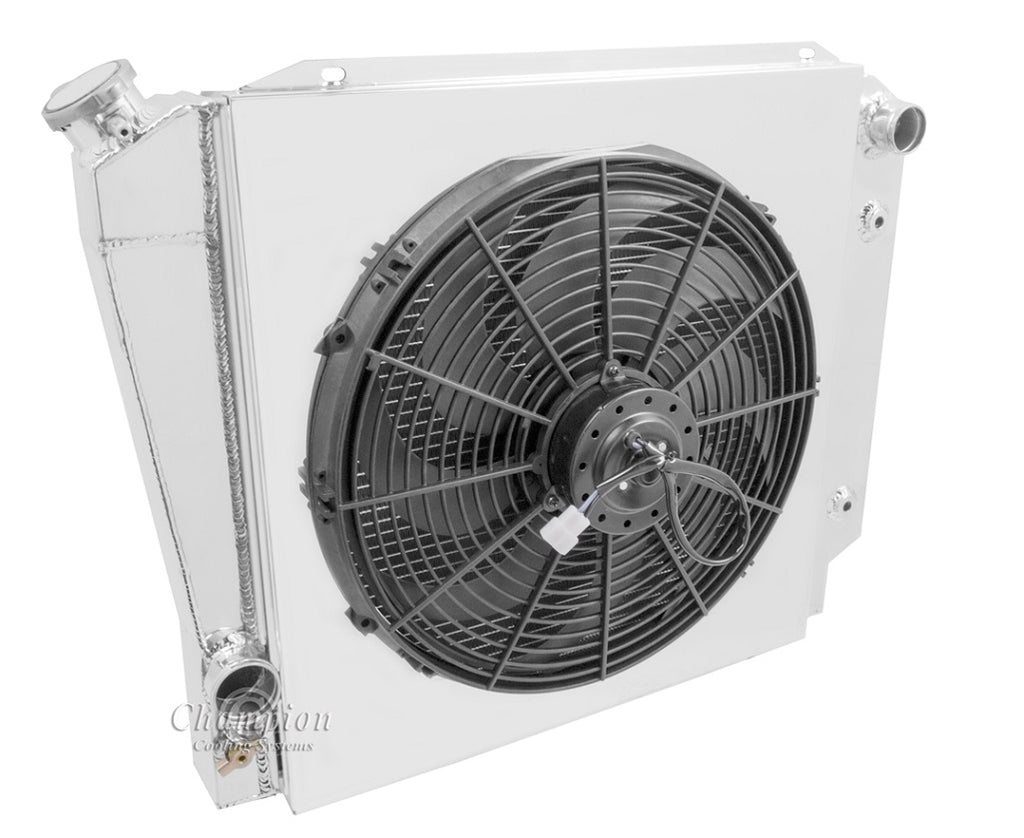

Champion All Aluminum Radiator Plus
Ledfoot Racing Aluminum Shroud and 16" Pro-Series Fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor

Conversion Style radiator
2-Row Core, 1" thick tubes | Cools 600hp

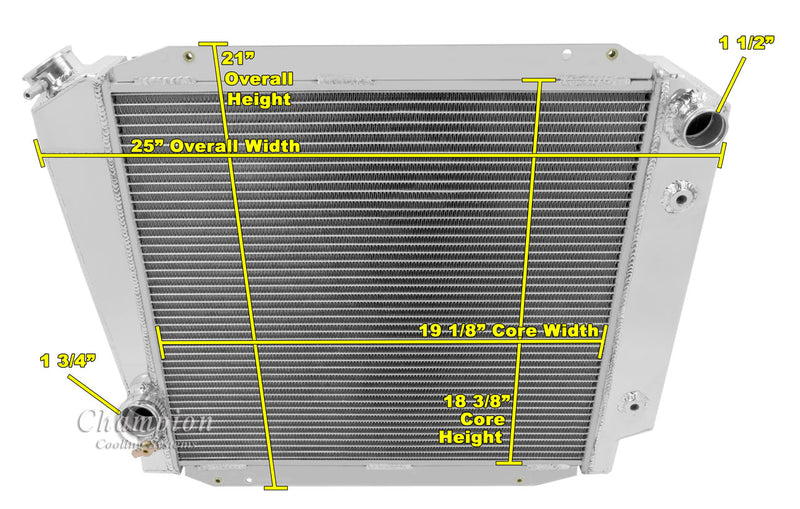

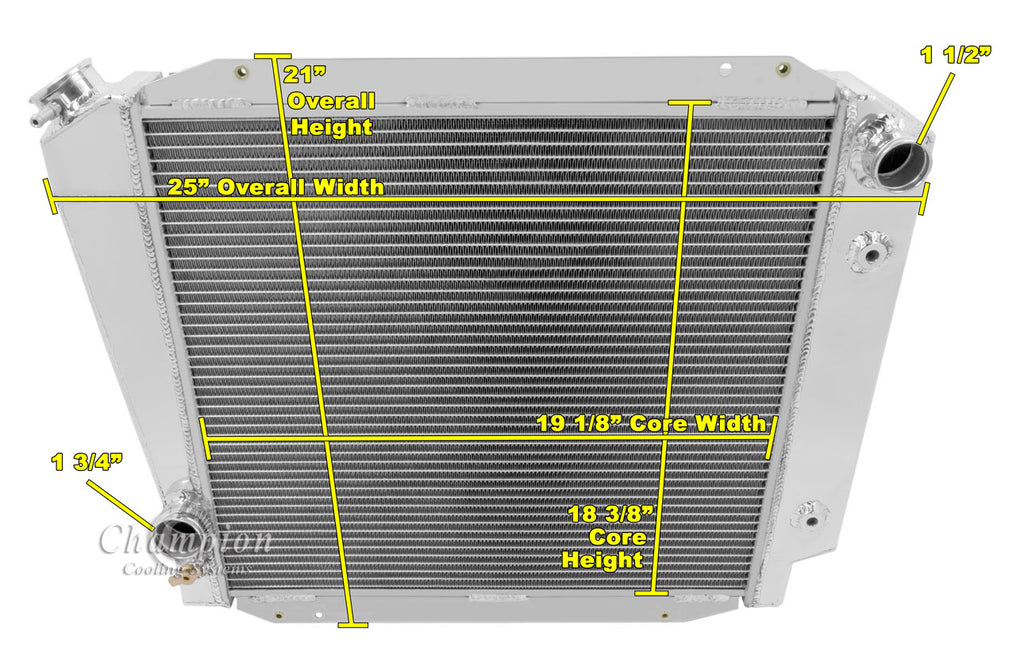

Radiator Dimensions:
Total: 21" tall x 25" wide
Core: 19" tall x 19" wide x 2.25" thick
Inlet: 1.5” driver side / Outlet: 1.75” pass side
Tanks: 2.5" thick
Tubes: 1" thick

Saddle Mounted

Transmission Cooler included (1/8-27NPT)

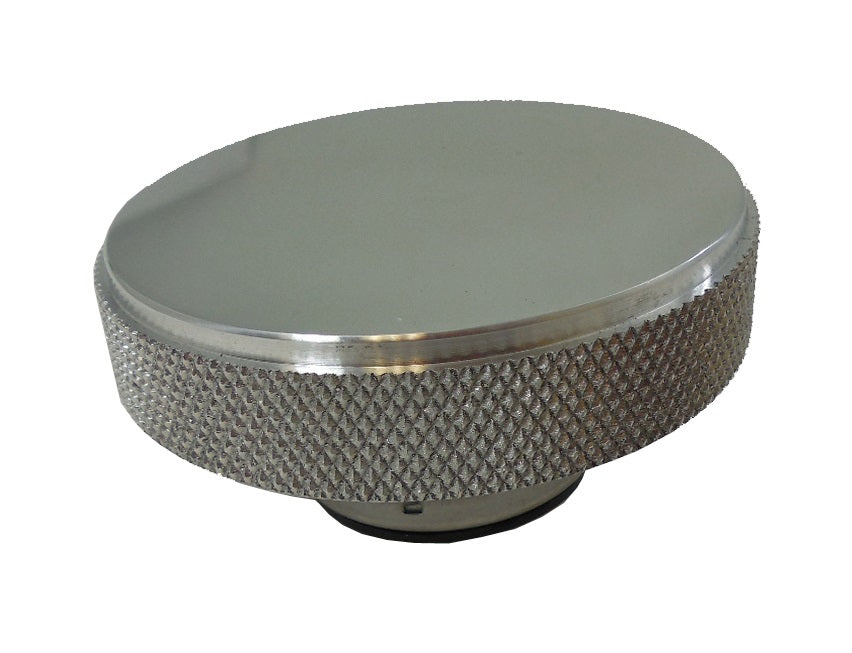

Polished Champion 16 lb Radiator Cap included (Pictured Above)

4-Row Mounts needed for this thicker Radiator
