AE5100-5100FS16 2 Row 1" Tubes

Champion All Aluminum Radiator

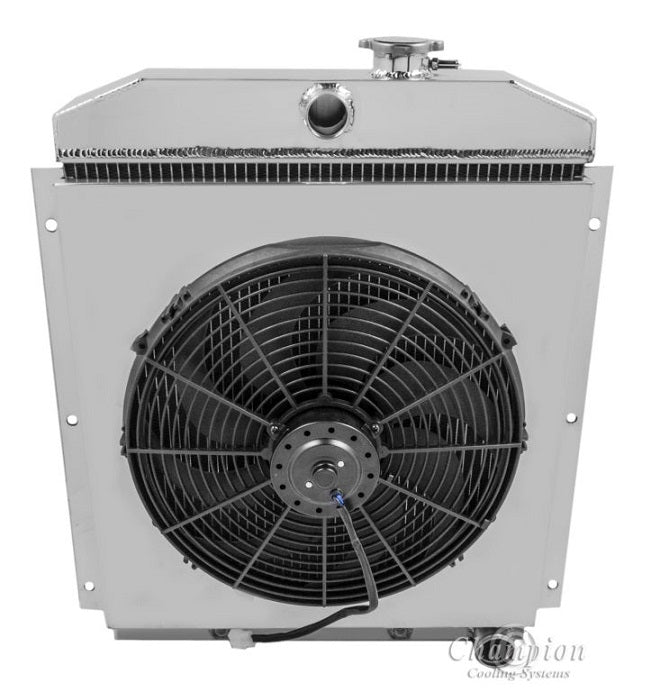

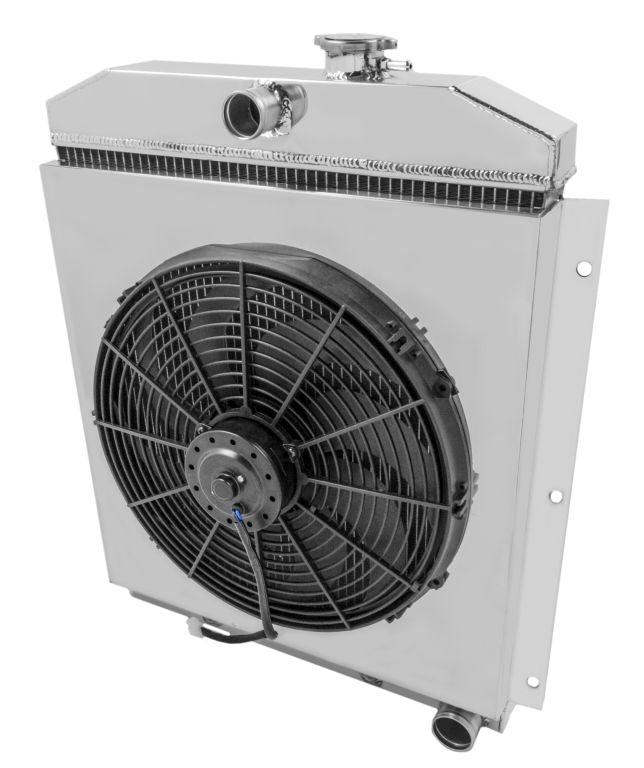

Plus Ledfoot Racing Shroud and 16" fan
Verify clearance for electric fan (3.5" thick)
Total thickness: 6.25" to fan motor
2-Row Core 1" Tubes | Cools up to 650hp

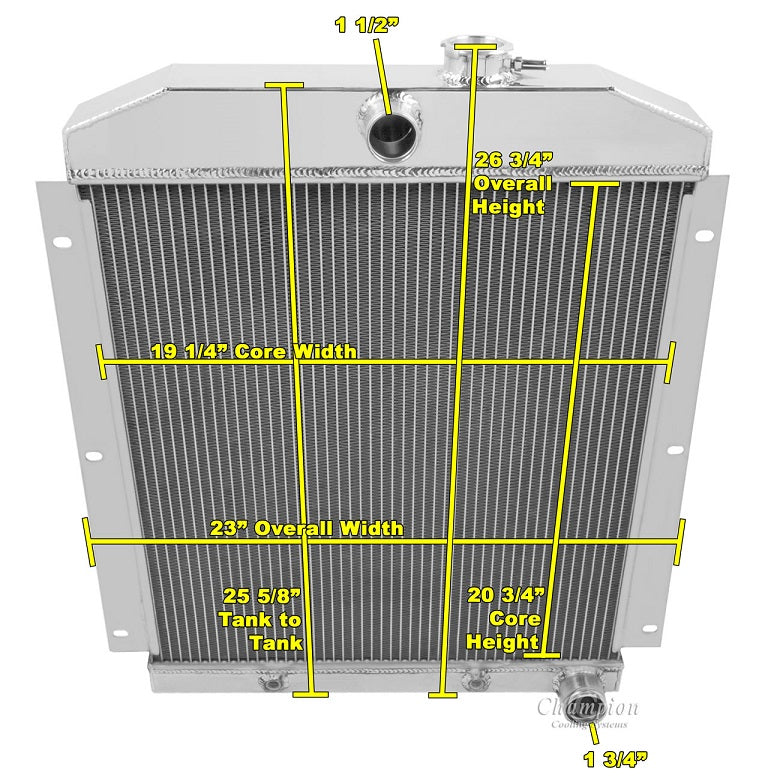

Radiator Dimensions:
Total: 25.5" (26.5" Incl Cap) Tall x 22.75" Wide (Incl Brackets)
Core: 20.75” Tall x 19.5” Wide x 2.25" thick
Inlet: 1.5” center / Outlet 1.75” Pass side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mounted

Transmission Cooler Included (1/2"- 20 straight thread)
Polished Champion 16 lb Radiator Cap included (Pictured Above)

Angled Brackets match OEM
