AE5100 2 Row 1" Tubes

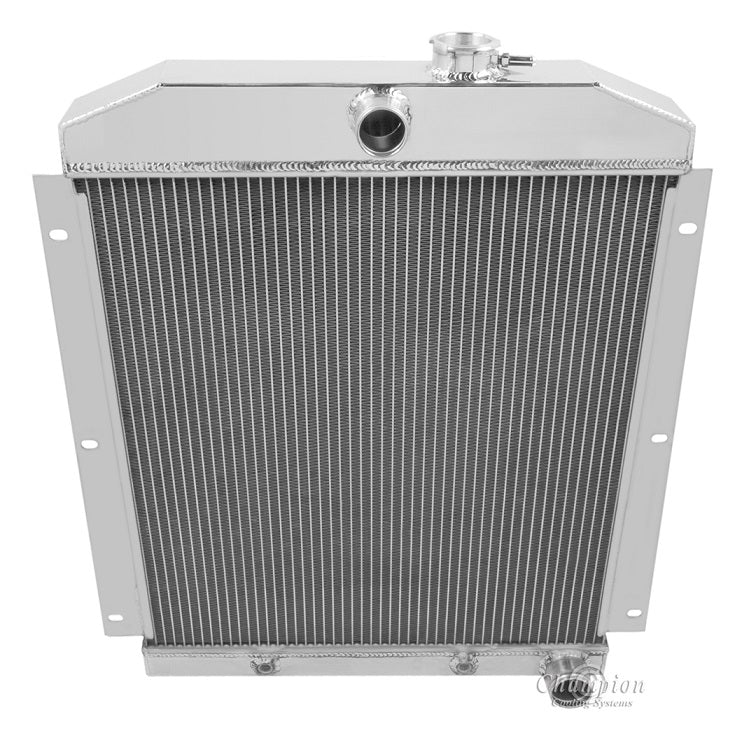

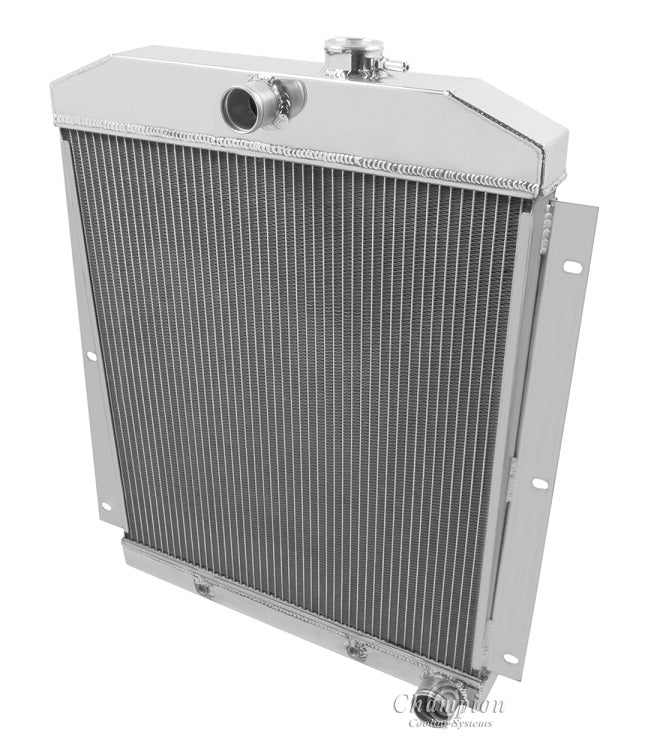

Champion All Aluminum Radiator
2-Row Core, 1" Tubes | Cools up to 650hp

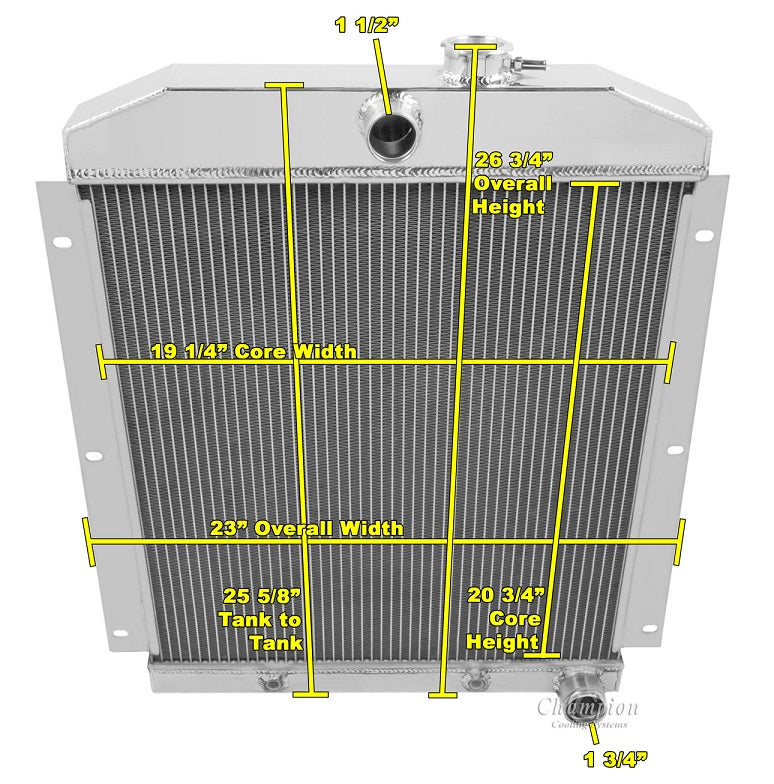

Radiator Dimensions:
Total: 25.5" tall (26.5" with cap) x 22.75" wide (with brackets) x 2.75" deep
Core: 20.75" tall x 19.5" wide x 2.25" thick
Tanks: 2.75" thick
Inlet: 1.5" center
Outlet: 1.75” passenger side
Tubes: 1" thick

Bracket Mounted
Note: Angled Brackets match OEM

Radiator Cap included
Transmission Cooler included (1/2"- 20 straight thread)
Aluminum Shroud is also available (sold separately)

When using electric fans (sold separately):
One 16" Electric fan is recommended for this core size
