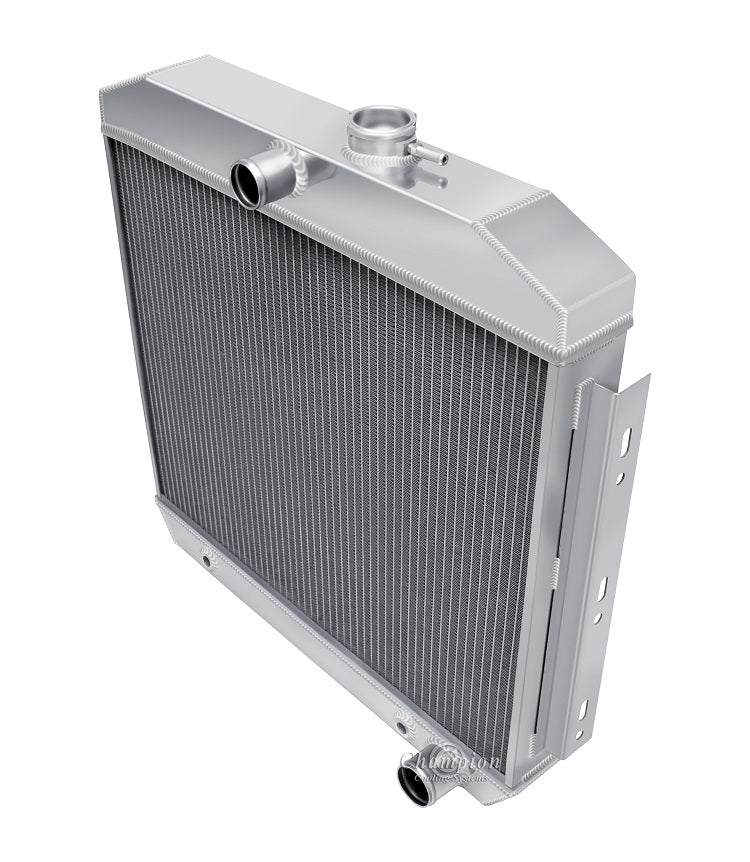

AE5057 2 Row 1" Tubes

Champion All Aluminum Radiator
2-Row Core, 1" Tubes | Cools up to 600hp

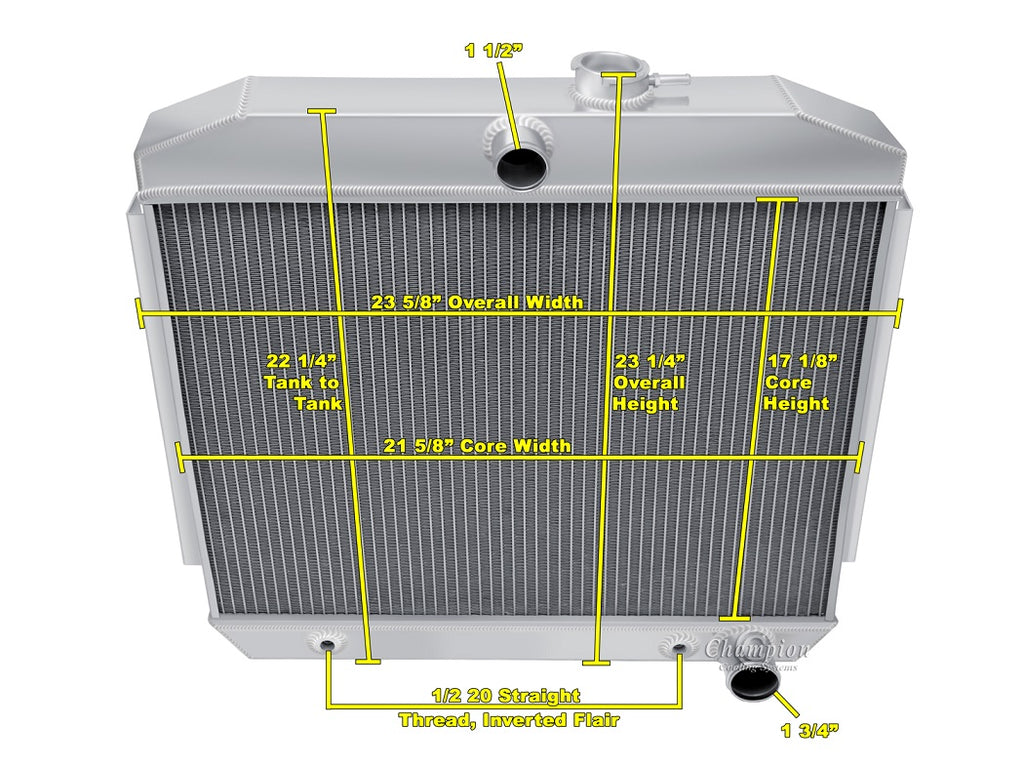

Radiator Dimensions:
Total: 22.25" tall (23.5" with cap) x 23.5" wide (with brackets)
Core: 17.25" tall x 21.5" wide x 2.1" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 1" thick

Direct Fit Replacement
Note: Mounts on the engine side of the core support (V8 mounts)

Transmission Cooler included (1/2"- 20 straight thread)
Radiator Cap included

When using electric fans:
One 16" or two 10" Electric fans recommended for this core size (sold separately)
