AE5056-5056FS16 2 Row 1" Tubes

Champion All Aluminum Radiator PLUS

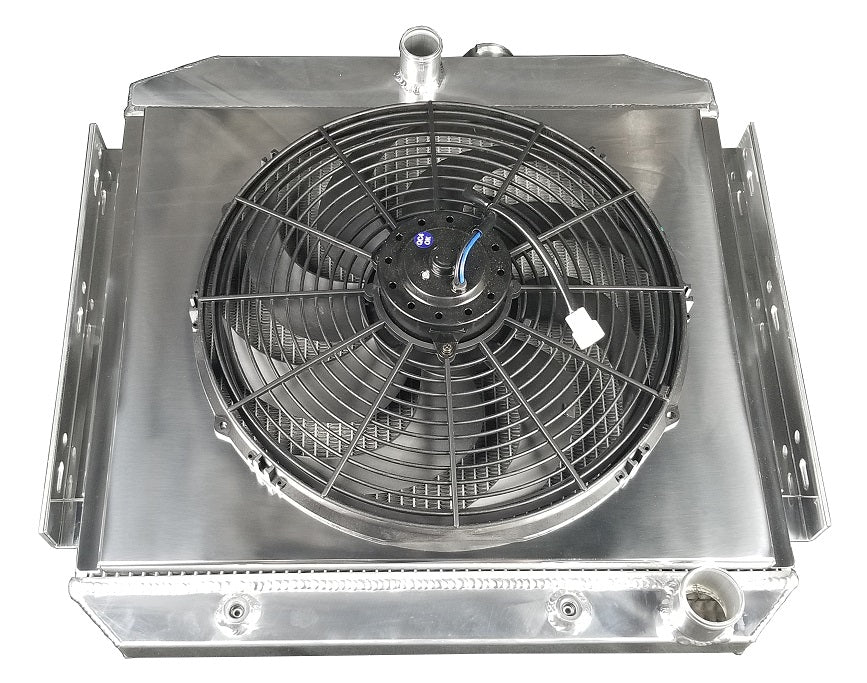

Aluminum Shroud & 16" Pro-Series Fan
Verify clearance for electric fan
Total thickness: 6.5" to fan motor
6 cyl Mounts, attaches to the bumper side of the core support
ONLY FITS 1955-1956 DOES NOT FIT 1957
2-Row Core 1" Tubes | Cools 550hp

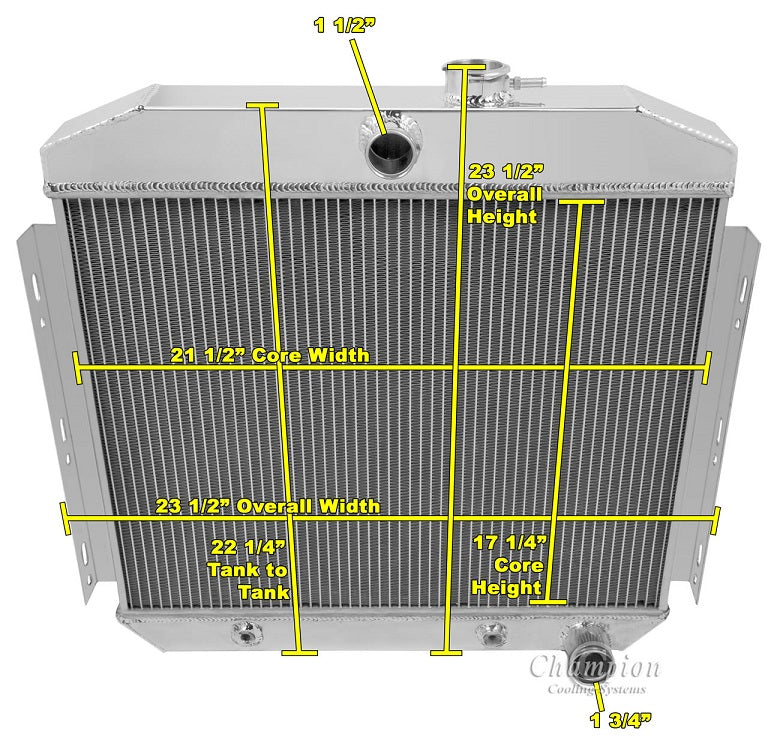

CC5056 Radiator Dimensions:
Total: 23" tall (24.5" with cap) x 23.5" (including brackets)
Core: 17.25" tall x 21.5" wide x 2.5" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 1" thick

Bracket Mounted

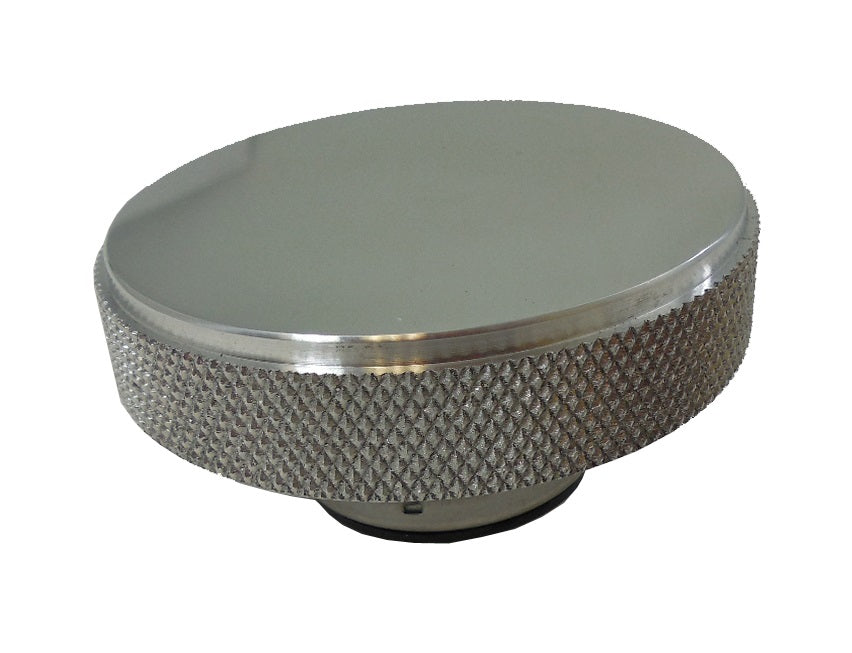

13 lb. Polished Radiator Cap included
Transmission Cooler included (1/2"- 20 straight thread)
No Petcock
