AE5056 2 Row 1" Tubes

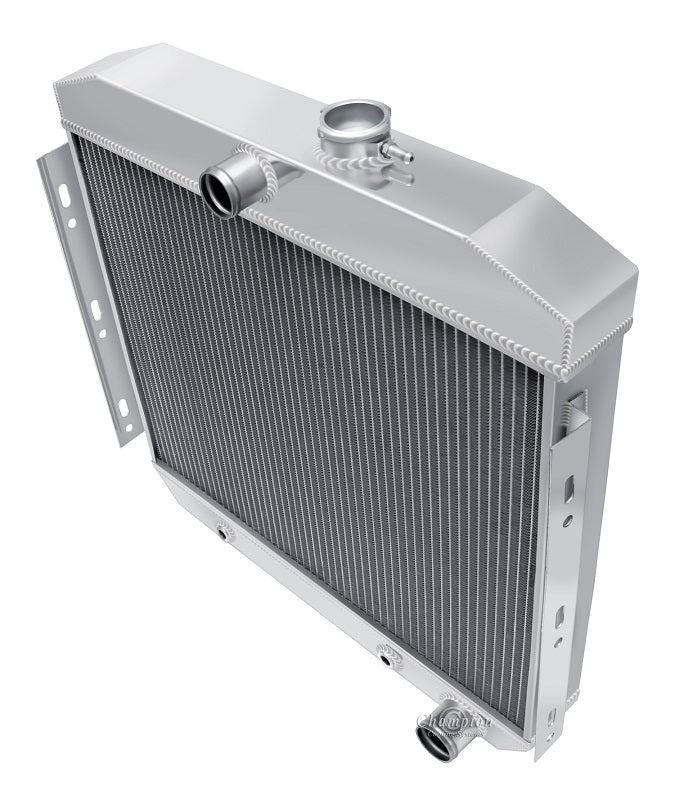

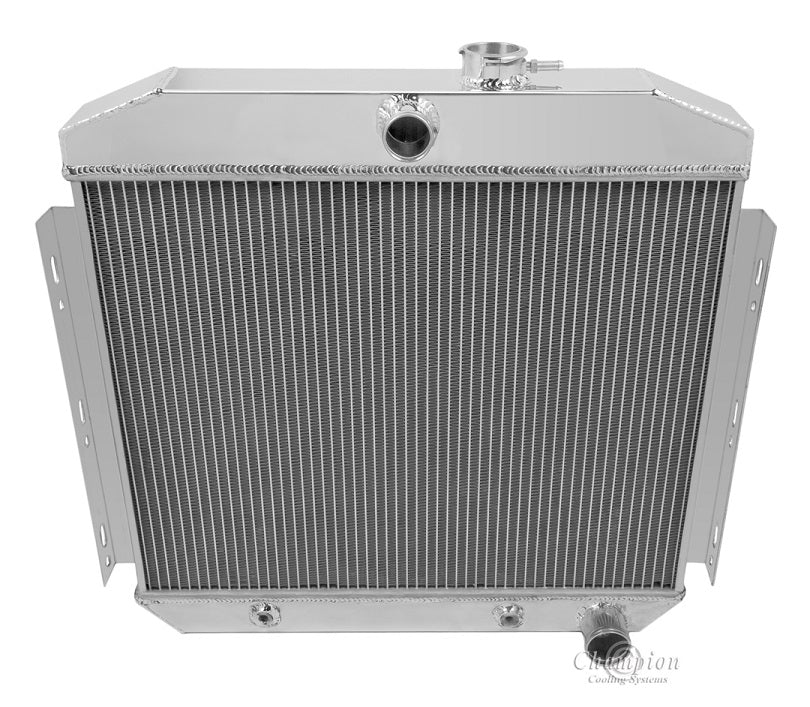

Champion All Aluminum Radiator
6 cyl Mounts, attaches to the bumper side of the core support
ONLY FITS 1955-1956 DOES NOT FIT 1957
2-Row Core 1" Tubes | Cools up to 550hp

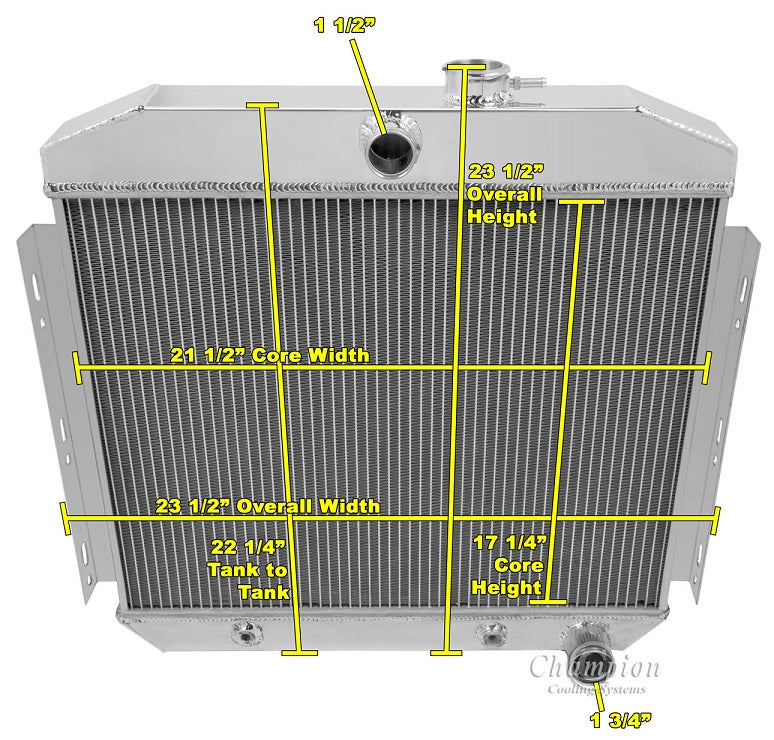

AE 5056 Radiator Dimensions:
Total: 23" tall (24.5" with cap) x 23.5" wide (with brackets)
Core: 17.25" tall x 21.5" wide x 2.25" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 1" thick

Bracket Mounted

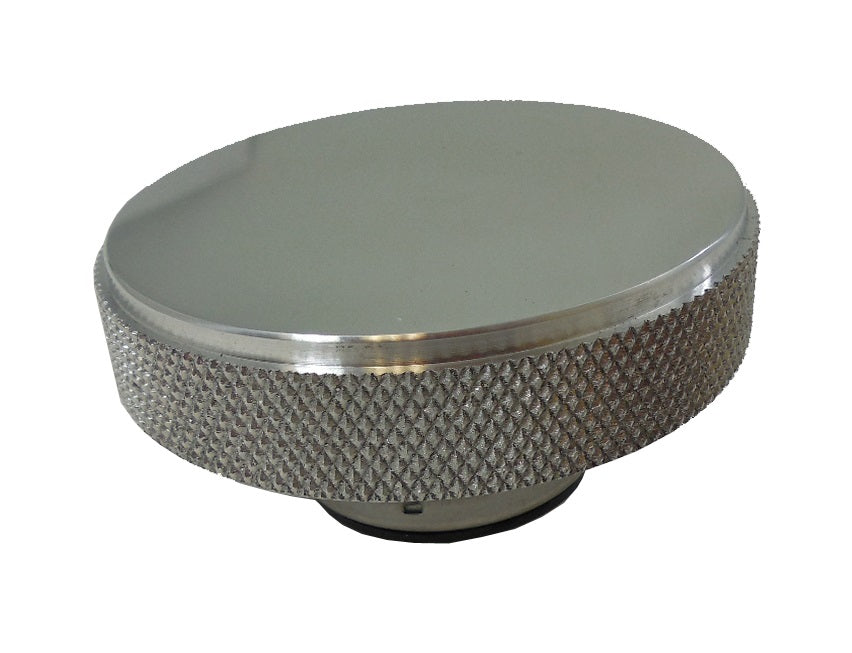

Radiator Cap Included
Transmission Cooler Included (1/2"- 20 straight thread)
No Petcock

Note: 6 Cyl mounts

When using electric fans:
One 16" or two 10" Electric fans recommended for this core size (sold separately)
