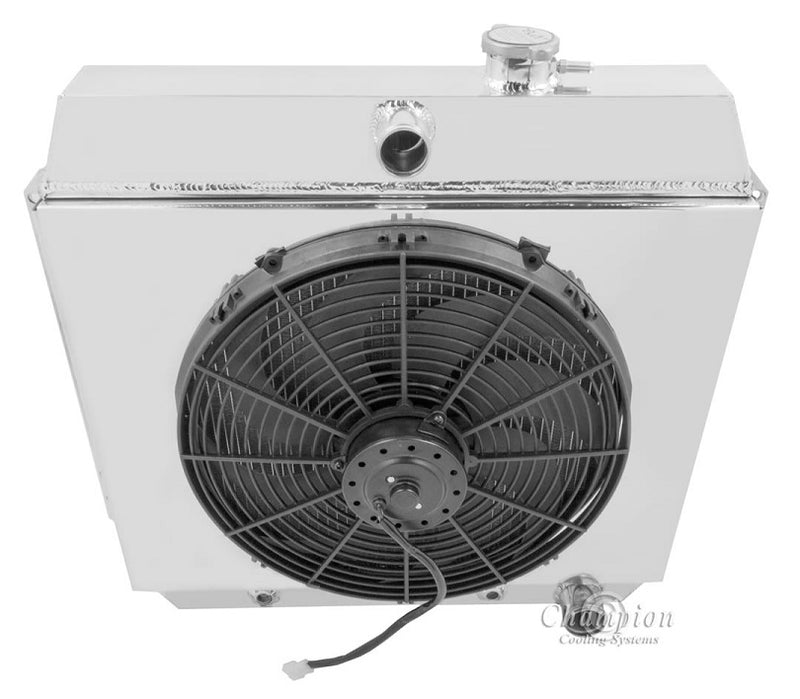

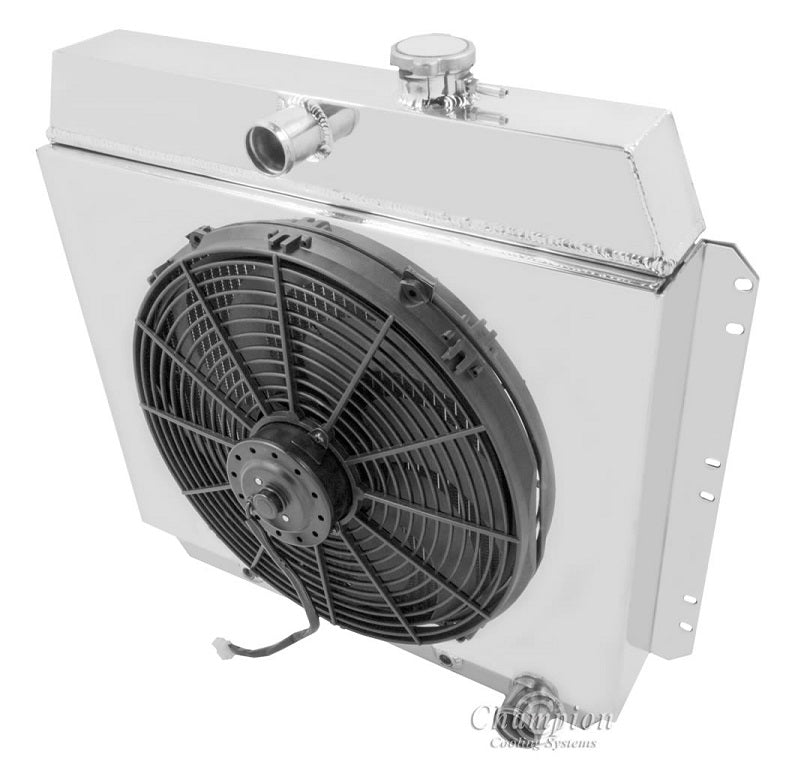

AE4954-4954FS16 2 Row 1" Tubes

Champion All Aluminum Radiator
Plus Shroud and 16" Pro-Series Fan
Verify clearance for electric fan
Total thickness: 6.25" to fan motor
2-Row Core 1" Tubes | Cools up to 600hp
**Note: For V8's Only**

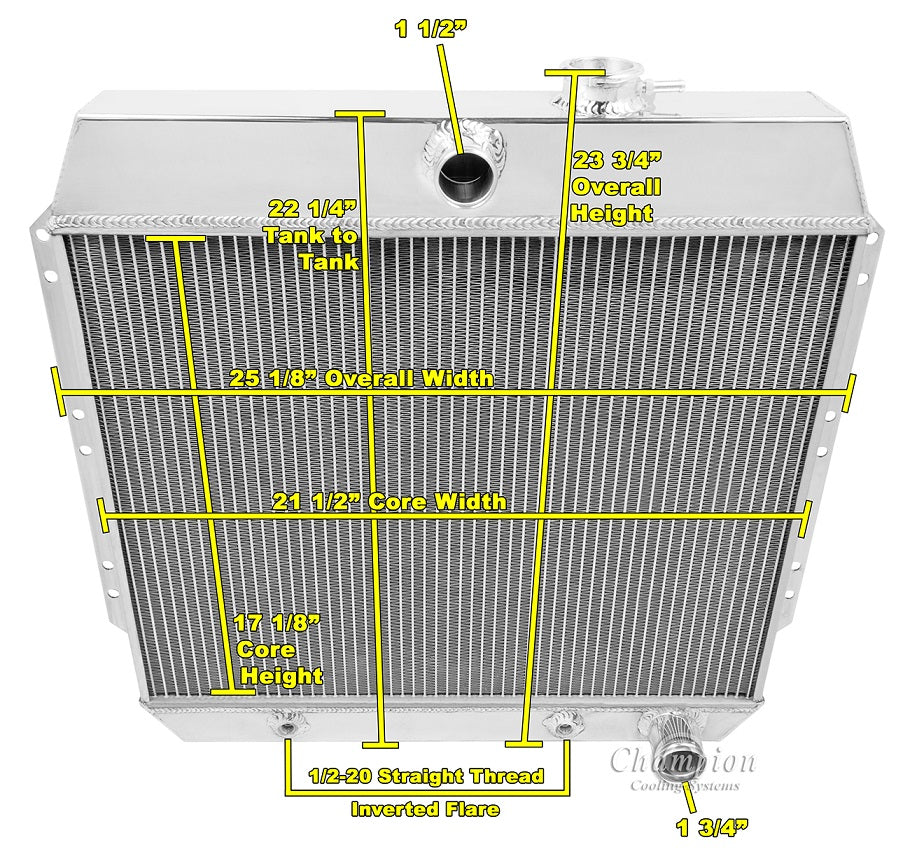

CC4954 Radiator Dimensions:
Total: 23.63" tall (Incl Cap) x 25.25" wide (Including Brackets)
Core: 17.13" tall x 21.75" wide x 2.25" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 1" thick

Bracket Mounted

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler Included (1/2"- 20 straight thread)

Note: Petcock on grill side of radiator
