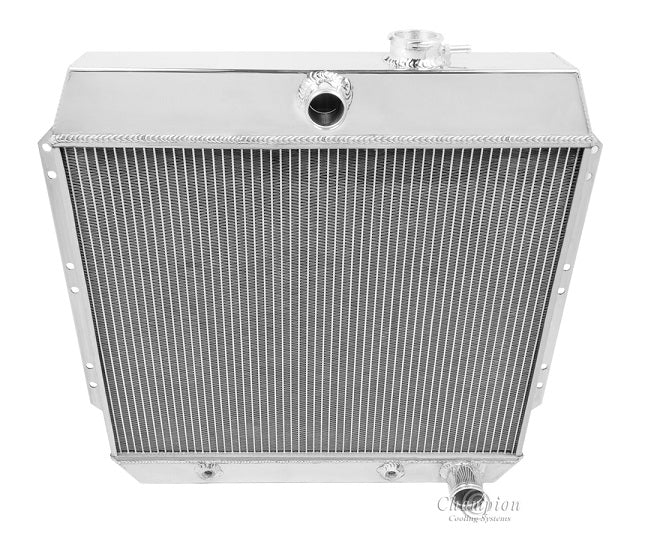

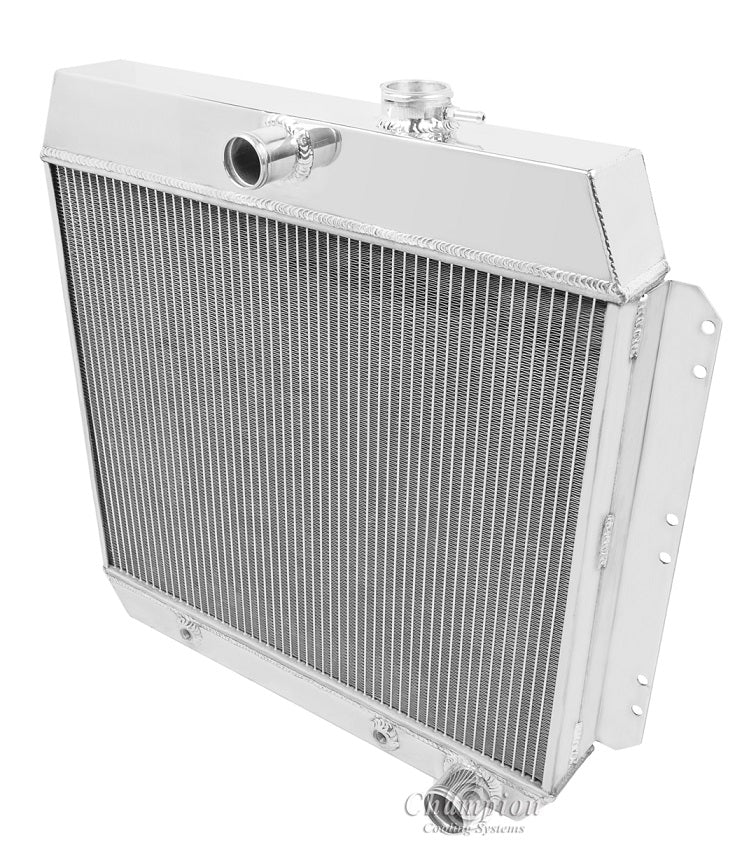

AE4954 2 Row 1" Tubes

Champion All Aluminum Radiator
2-Row Core | Cools up to 450hp
Note: For V8 engines only, too thick for 6 cyl

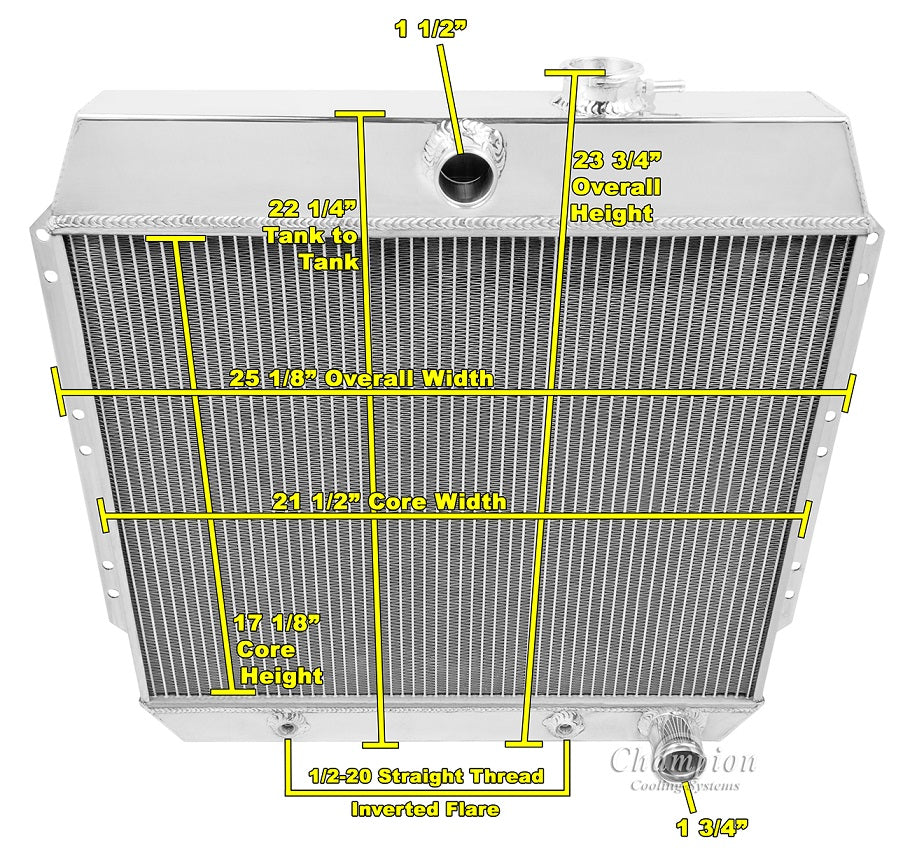

Radiator Dimensions:
Total: 23.63" tall (with cap) x 25.25" wide (with brackets)
Core: 17.13" tall x 21.75" wide x 2.25" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 1" thick

Bracket Mounted

16lb. Radiator Cap included
Transmission Cooler included (1/2"- 20 straight thread)

Petcock on back side
