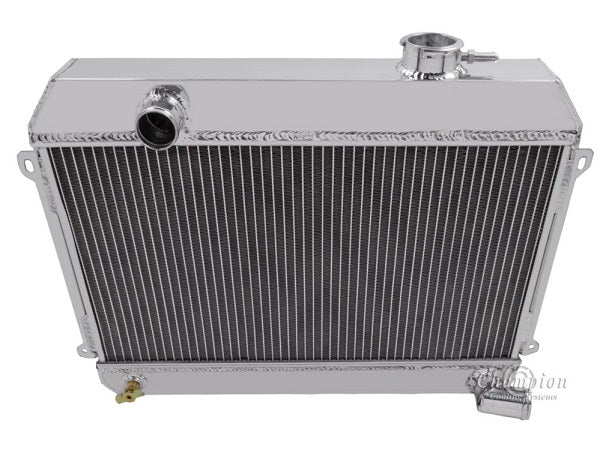

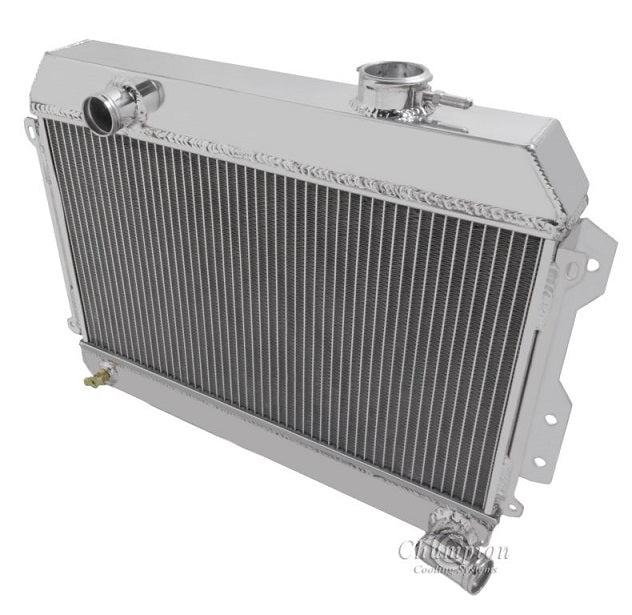

AE487-1 Large 1.25" Tube

Champion All Aluminum Radiator
1-Row Core 1" Tubes | Cools up to 250hp

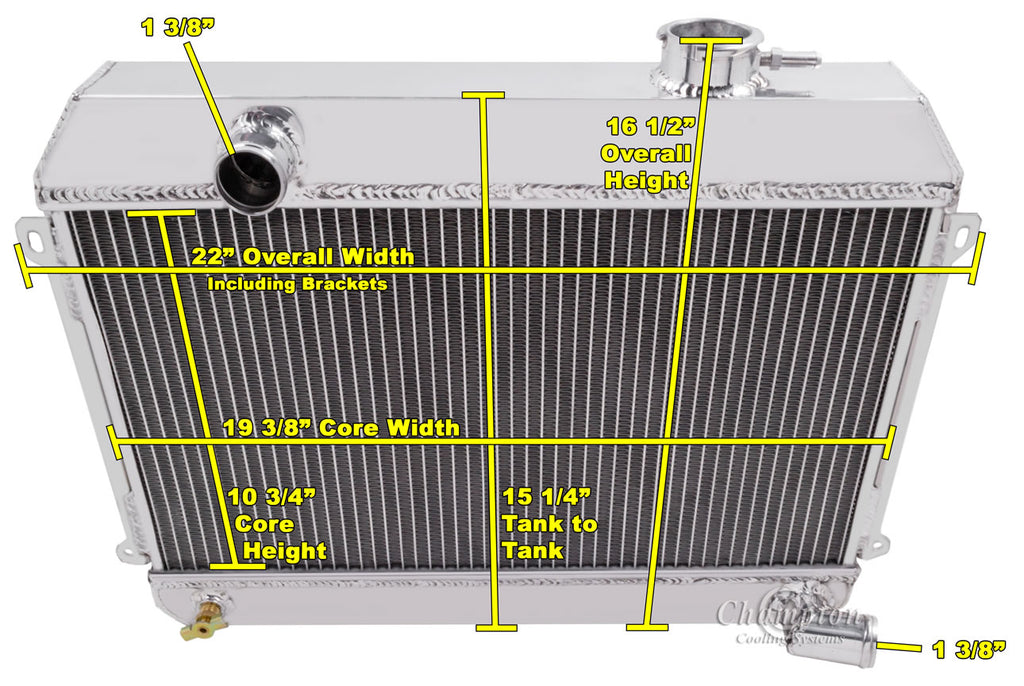

AE487 Radiator Dimensions:
Total: 16.5" tall (with cap) x 22" wide (with brackets)
Core: 10.63" tall x 19.36" wide x 1.25" thick
Inlet: 1.38" driver side
Outlet: 1.38" passenger side
Tanks: Top 2" thick, Bottom 1.5"
Tubes: 1.25" thick

Bracket Mounted

16 lb. Radiator Cap included
Transmission Cooler NOT included
