AE478-478FS12SPF 2 Row 1" Tubes

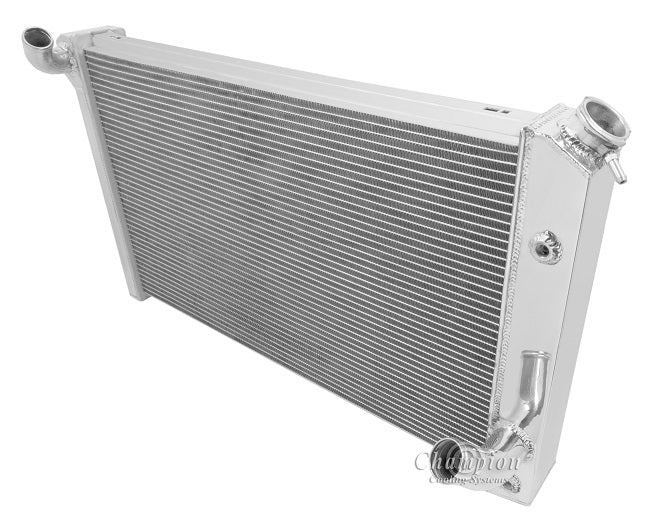

Champion All Aluminum Radiator

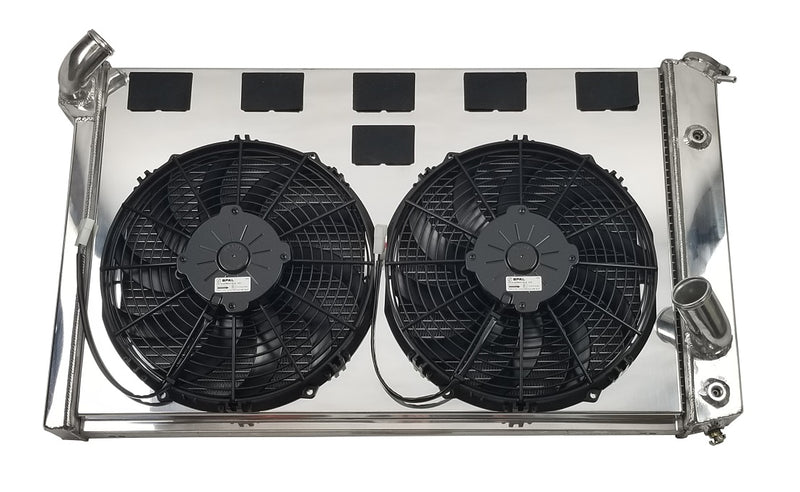

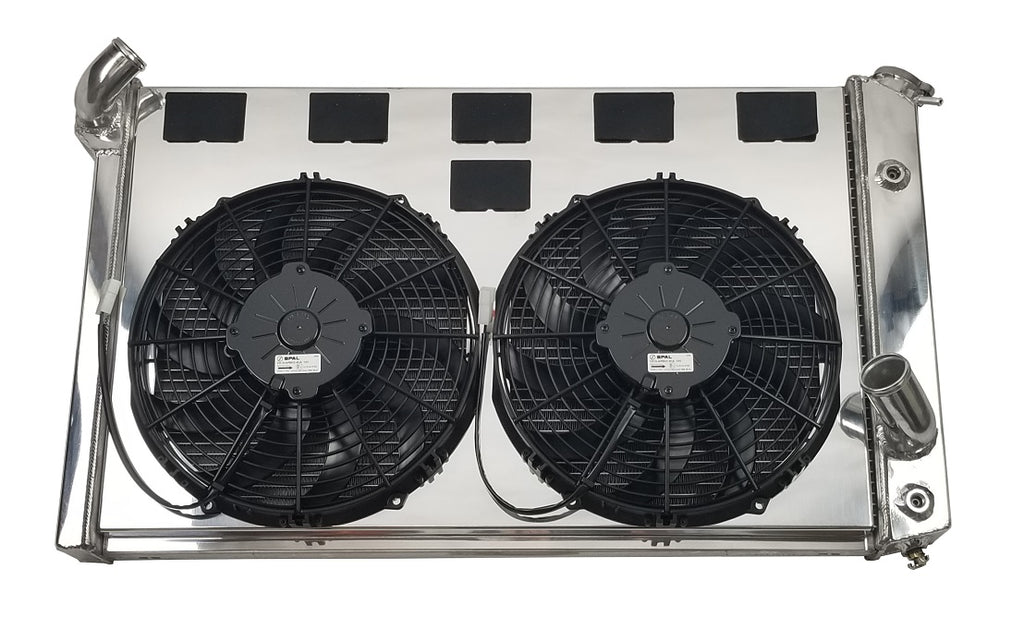

Plus Ledfoot Racing Shroud & 2-12" SPAL 1522 Fans
2-Row 1" Core | Cools 650hp

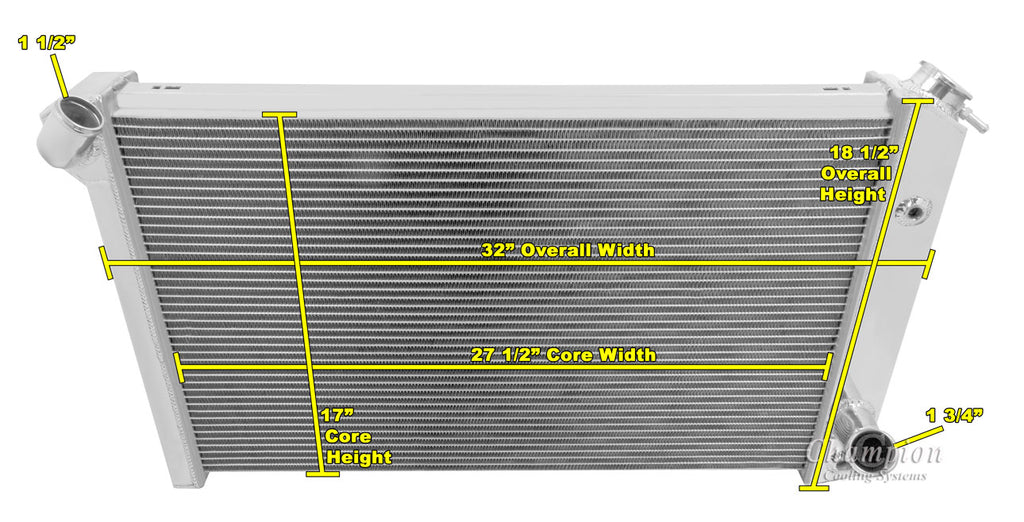

Radiator Dimensions:
Total: 18.5" tall (19.5" with cap) x 32.5" wide (top) 31.5"(bottom)
Core: 16.5" tall x 27.5" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 1" thick

Saddle Mounted

(6) Rubber flaps for high speed airflow included
Transmission Cooler included (1/2- 20 STRAIGHT THREAD)

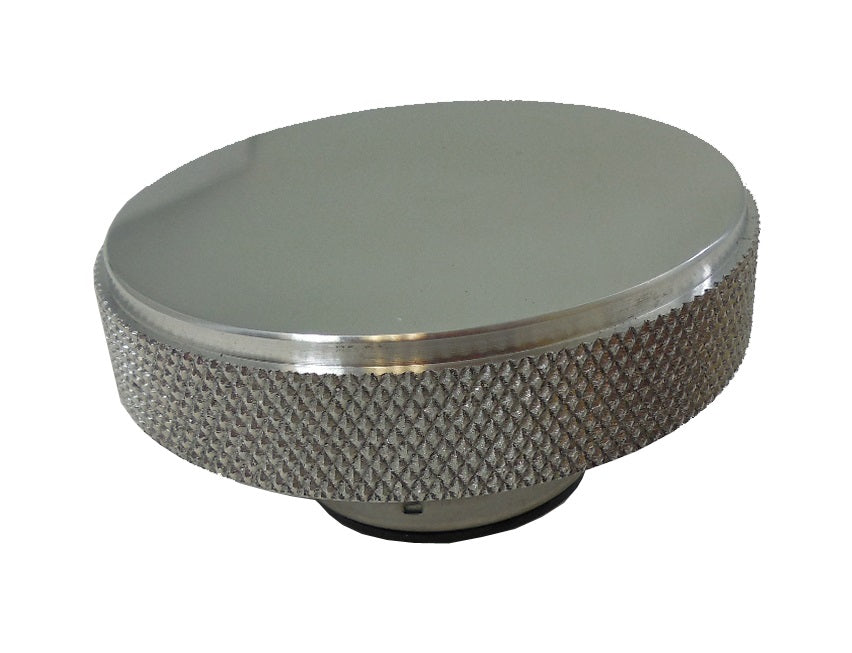

Polished 16 lb Radiator Cap included
