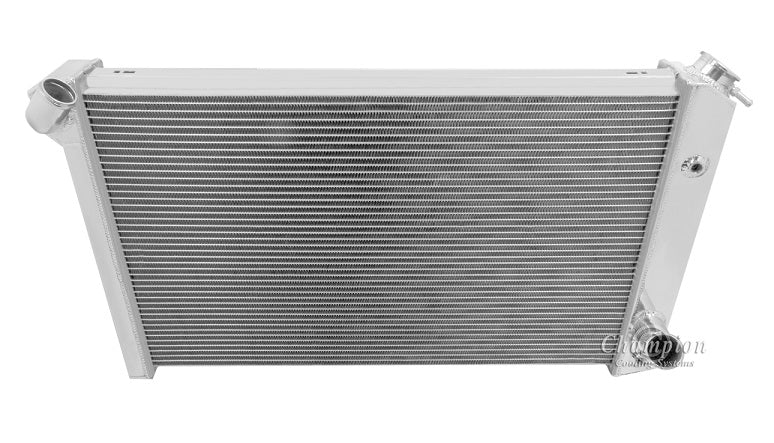

AE478 2 Row 1" Tubes

Champion All Aluminum Radiator
2-Row Core: 1" Thick Tubes | Cools up to 700hp

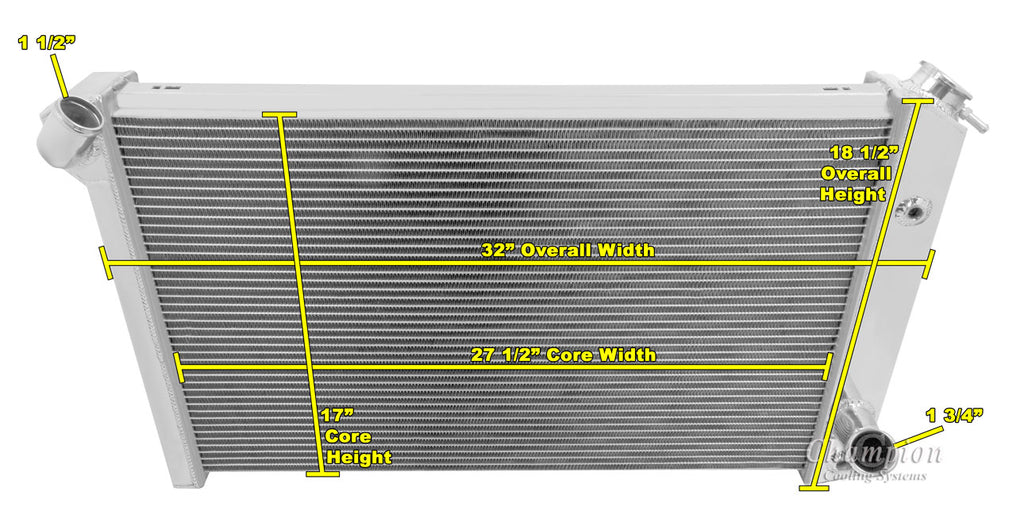

Radiator Dimensions:
Total: 18.5" tall (19.5" with cap) x 32.5" wide (top); 31.5" wide (bottom)
Core: 16.5" tall x 27.5" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 1" thick

Saddle mounted

16 lb. Radiator Cap included
Transmission Cooler included (1/2- 20 STRAIGHT THREAD)

When using electric fans:
16" Electric fan recommended for this core size (sold separately)
