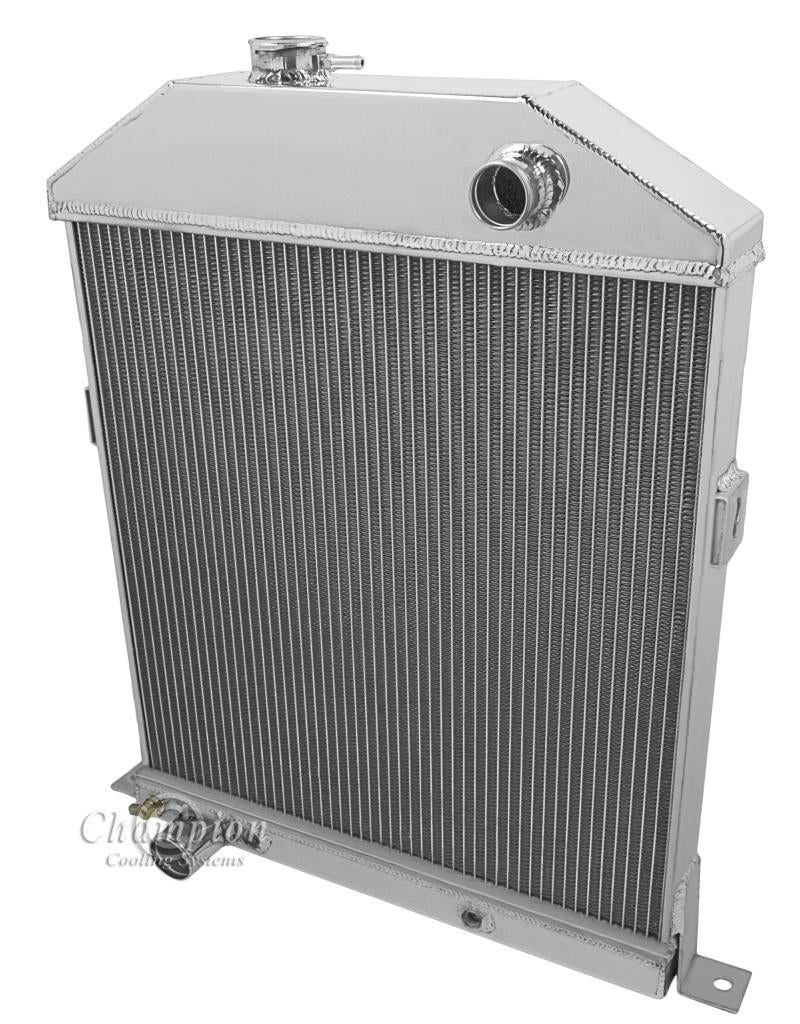

AE46FD 2 Row 1" Tubes

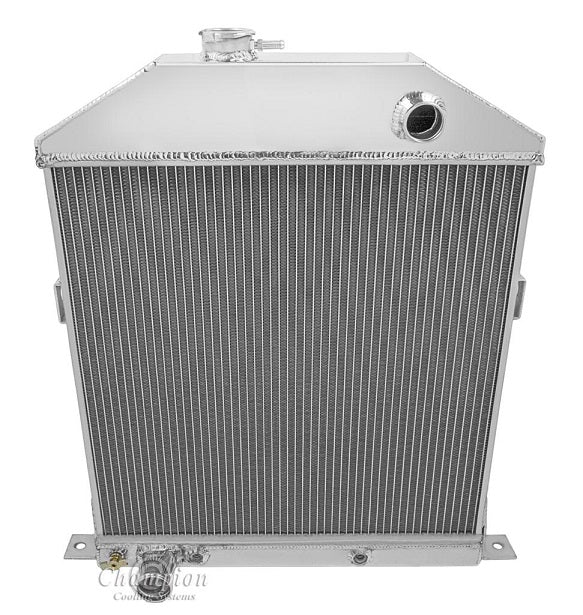

Champion All Aluminum Radiator
2-Row Core 1" thick tubes | Cools up to 500hp

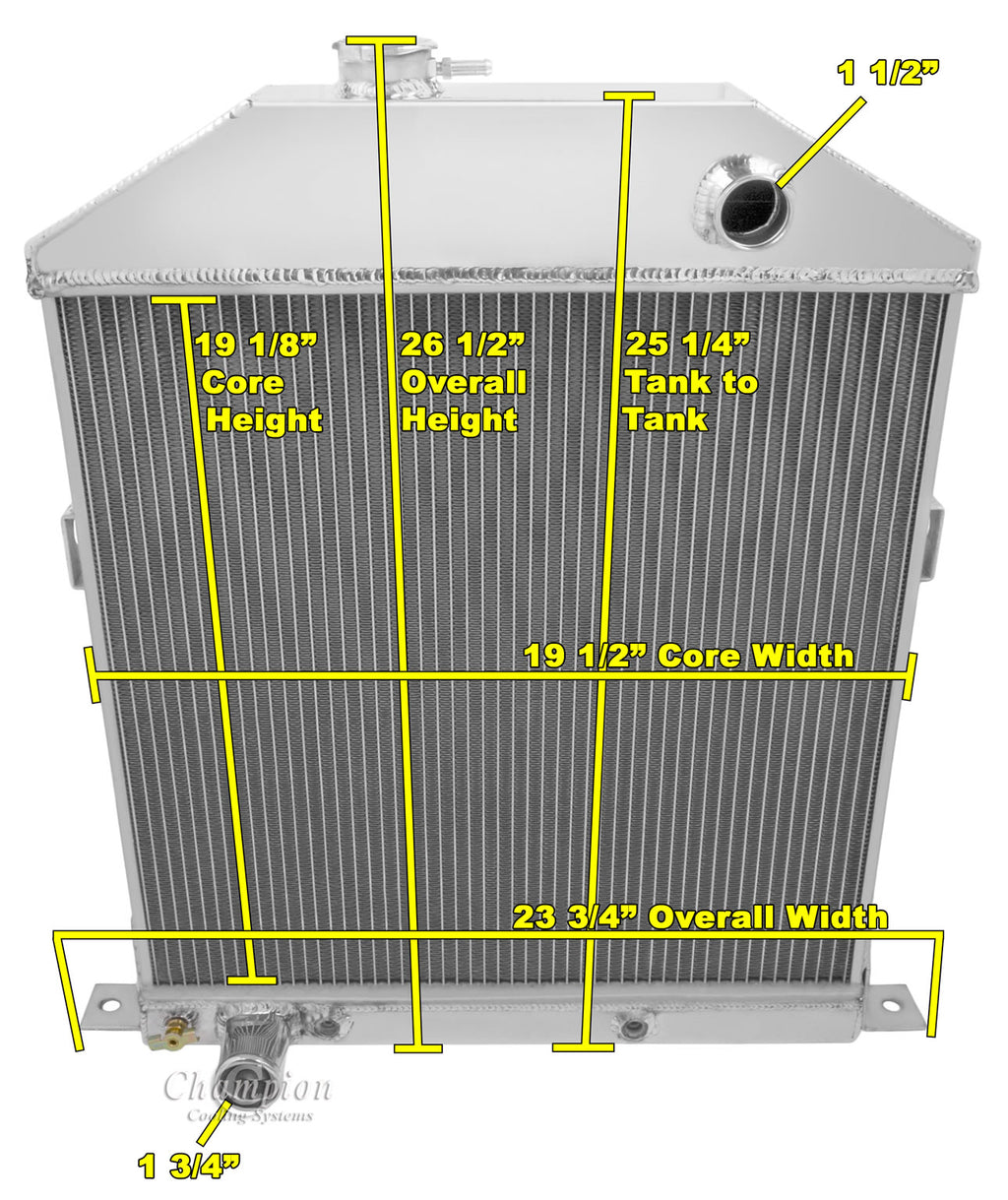

Radiator Dimensions:
Total: 26.5" tall (26.38" with cap) x 23.75"
Core: 19" tall x 19.5" wide x 2.25" thick
Inlet: 1.75" driver side
Outlet: 2" passenger side
Tanks: 2.5" thick
Tubes: 1" thick

Flange Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8"-27 NPT)
