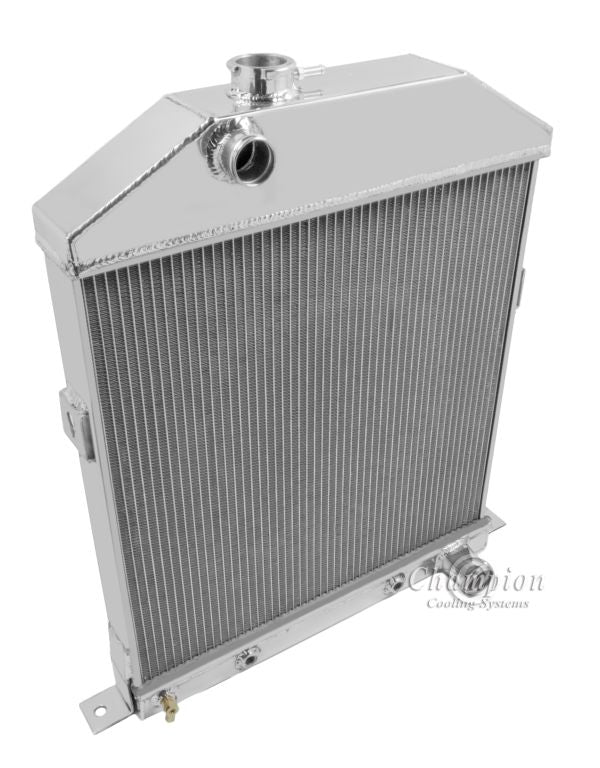

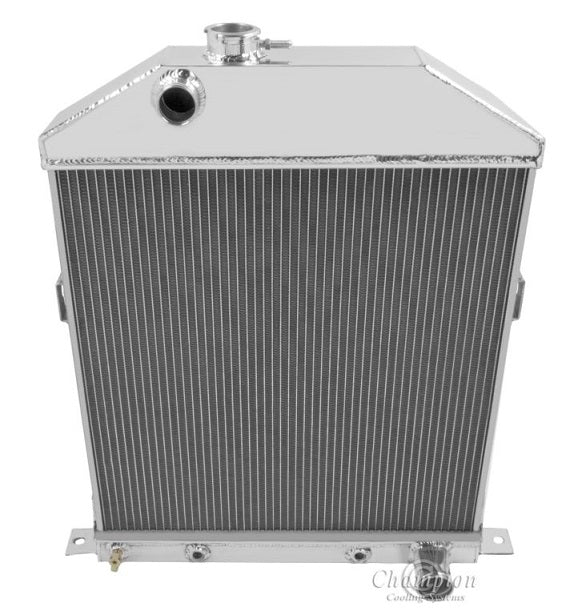

AE46CH 2 Row 1" Tubes

All Aluminum Champion Radiator
2-Row Core 1" Tubes | Cools up to 550hp
For Chevy Engines

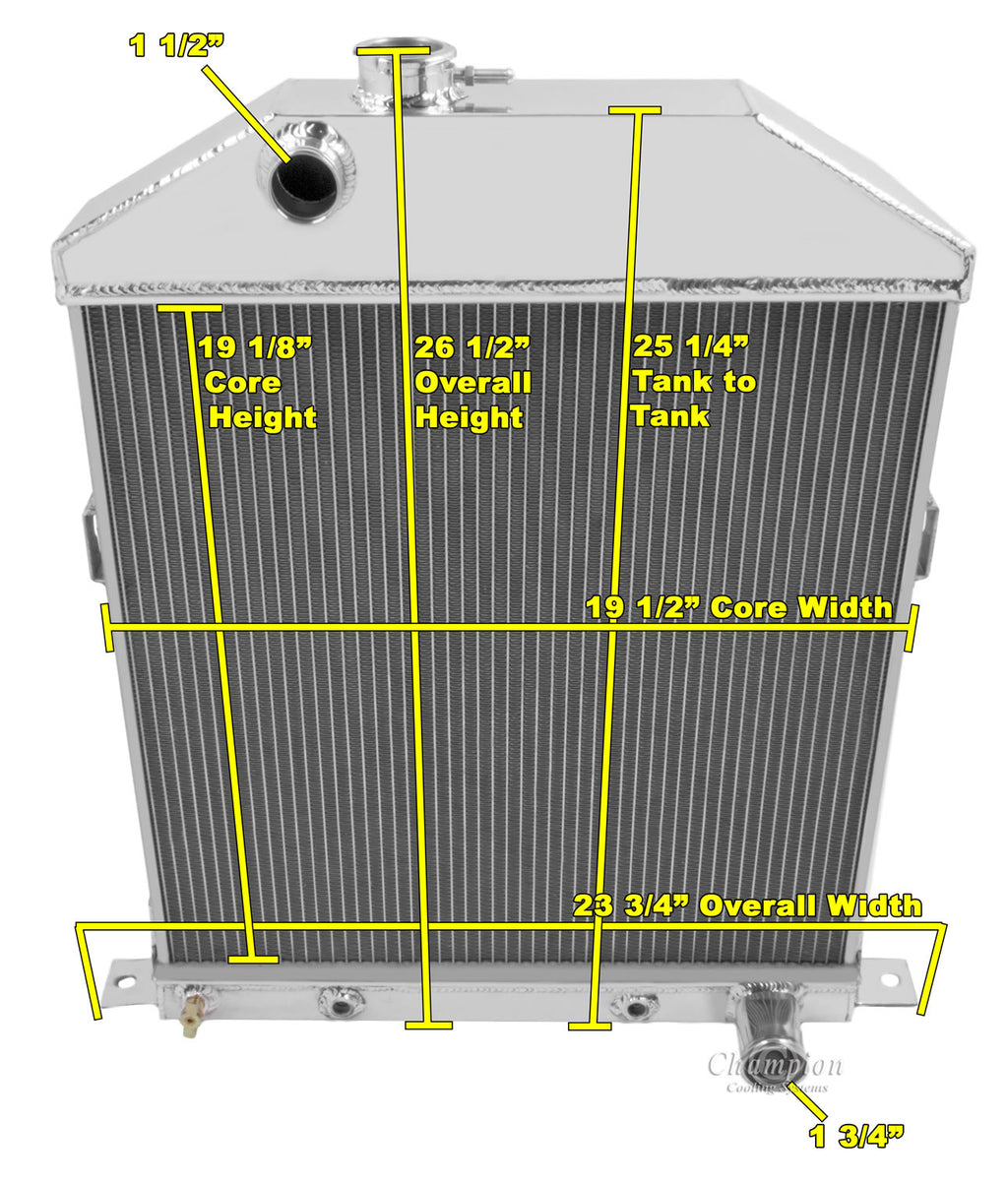

Radiator Dimensions:
Total: 26.5" tall x 23.75" wide (lower bracket)
Core: 19.88" tall x 19.75" wide x 2.13" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.63" thick

Flange Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)

When using electric fans:
One 16" fan recommended for this core size
