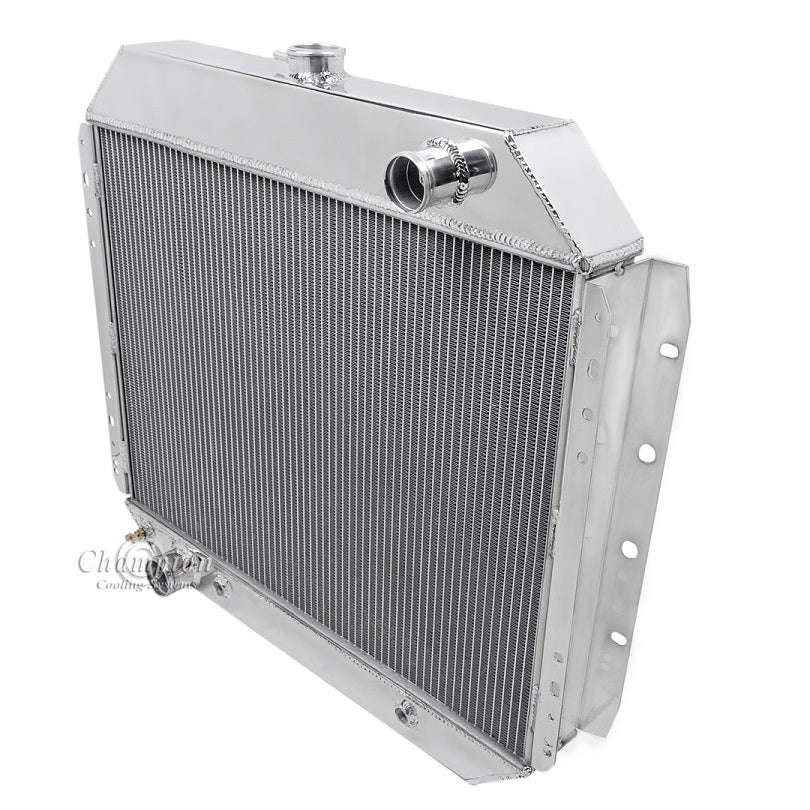

AE433-433FS12FSP 2 Row 1" Tubes

Champion All Aluminum Radiator

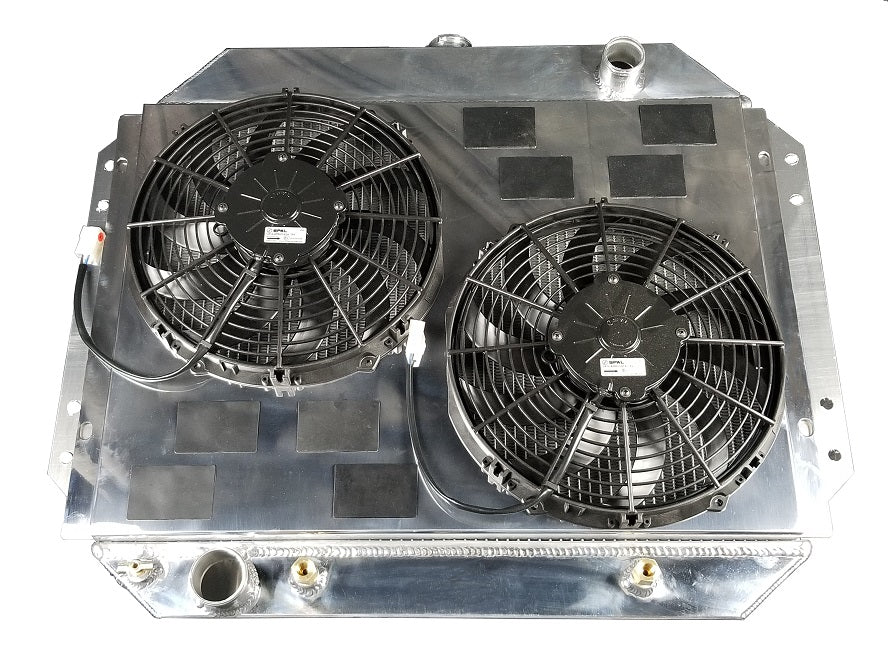

plus Ledfoot Racing Aluminum Shroud
with eight (8) rubber air flow flaps
and Two 12" SPAL-1522 Fans "SAVE $40"
2-Row Core: 1" Thick Tubes | Cools up to 650hp
Note: Uses Grill Side Mounting Brackets
Engine Side Brackets available with part # CC444

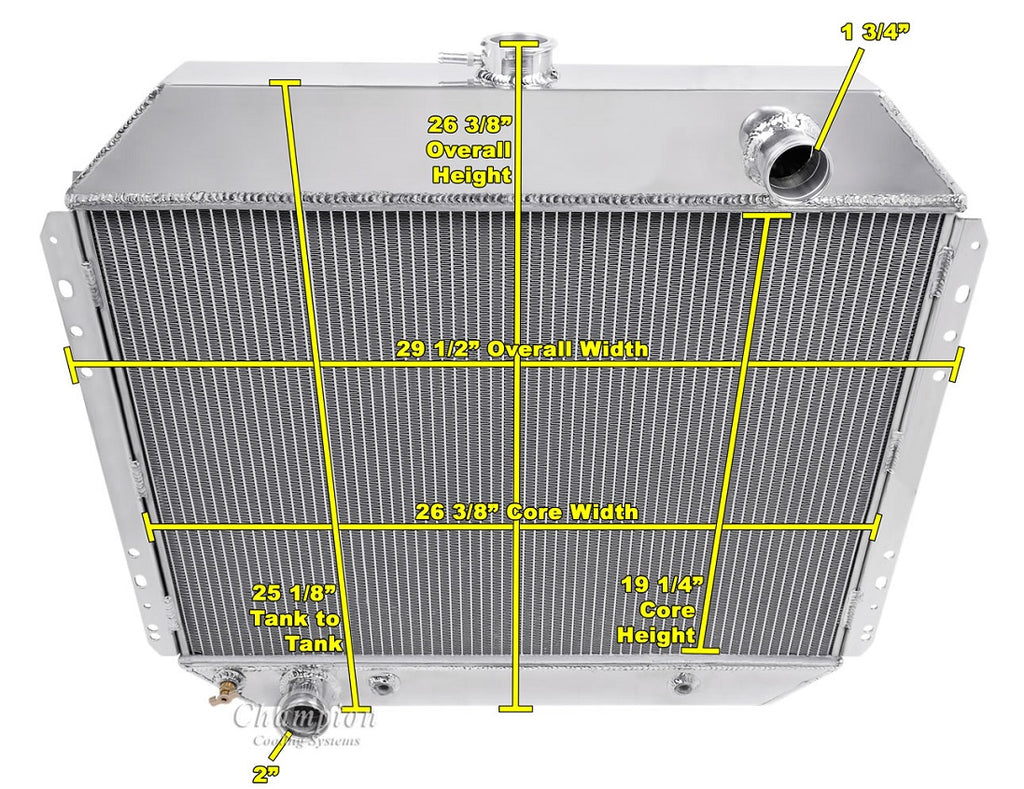

Radiator Dimensions:
Total: 25.13" tall (26.38" with cap) x 29.13" (including brackets)
Core: 19.25" tall x 26.38" wide x 2.25" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 2.5" thick
Tubes: 1" thick

Bracket Mounted

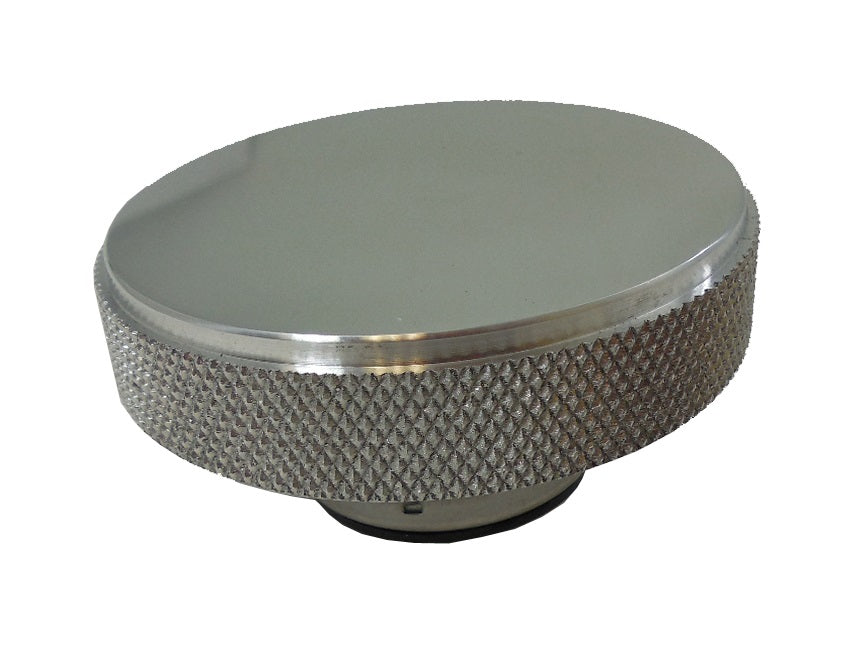

Polished 16 lb Radiator Cap included
Transmission Cooler included (1/8-27NPT)
