Description

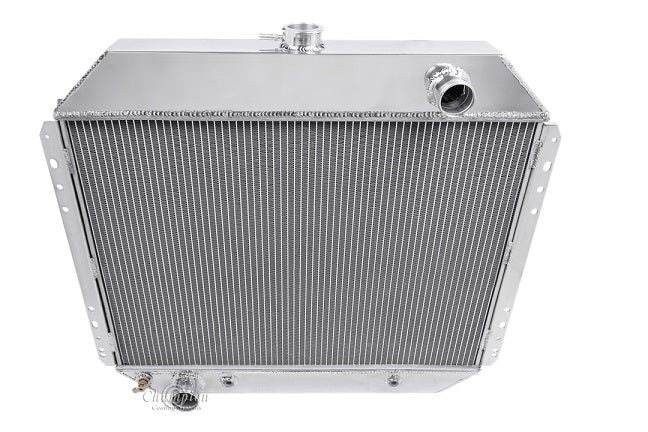

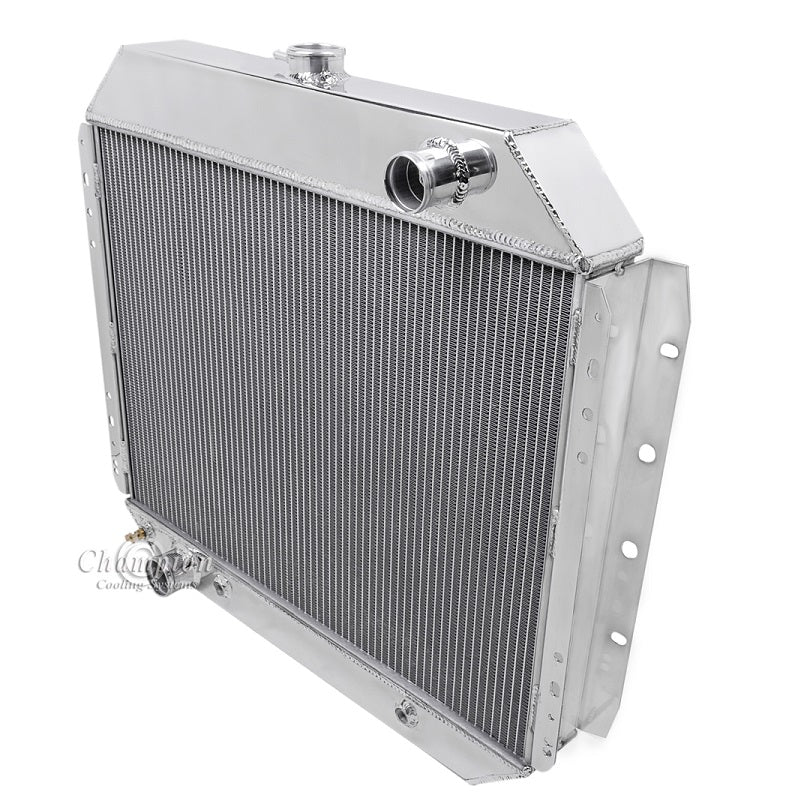

Champion All Aluminum Radiator
2-Row Core, 1" thick tubes | Cools up to 650hp
Note: Uses Grill Side Mounting Brackets
Engine Side Brackets available with part # CC444

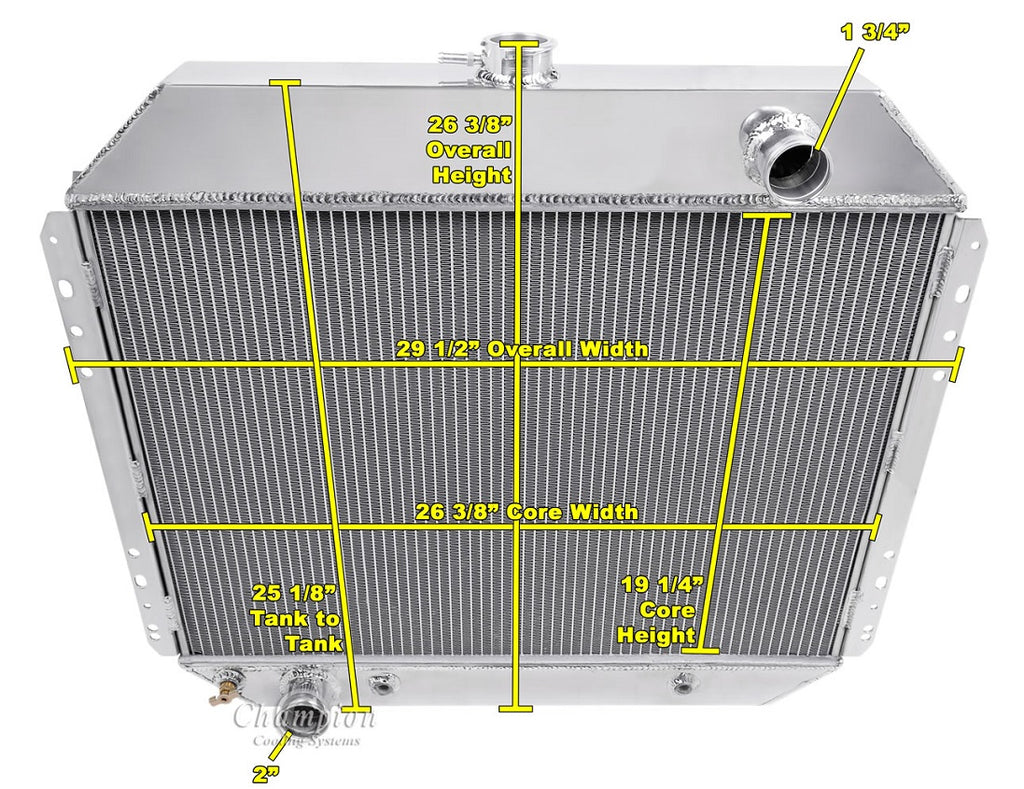

Radiator Dimensions:
Total: 25.13" tall (26.38" with cap) x 29.13" (including brackets)
Core: 19.25" tall x 26.38" wide x 2.25" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 2.5" thick
Tubes: 1" thick
Bracket Mounted
16 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also available (sold separately, for 12" fans)
When using electric fans (sold separately):
Two 12" SPAL Electric fans recommended for this core size
2-Row Core, 1" thick tubes | Cools up to 650hp
Note: Uses Grill Side Mounting Brackets
Engine Side Brackets available with part # CC444
Radiator Dimensions:
Total: 25.13" tall (26.38" with cap) x 29.13" (including brackets)
Core: 19.25" tall x 26.38" wide x 2.25" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 2.5" thick
Tubes: 1" thick
Bracket Mounted
16 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also available (sold separately, for 12" fans)
When using electric fans (sold separately):
Two 12" SPAL Electric fans recommended for this core size
