AE4146CH 2 Row 1" Tubes V8's

Champion All Aluminum Radiator
Fot V8 applications, does not fit 6 cyl
2-Row Core 1" thick tubes | Cools up to 550hp

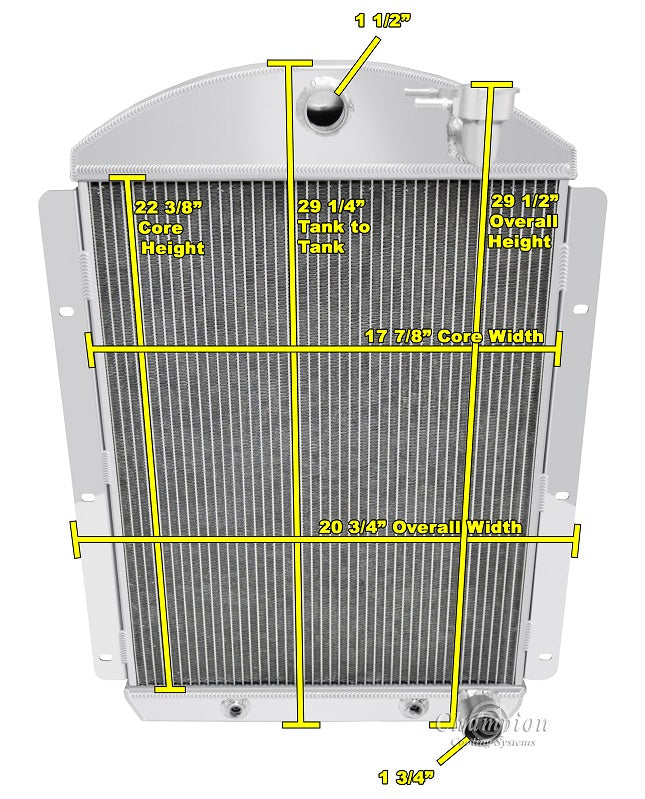

Radiator Dimensions:
Total: 28.25" tall (with cap) x 20.75" wide (including brackets)
Core: 22.25" tall x 18" wide x 2.25" thick
Inlet: 1.5" center of top tank
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 1" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
