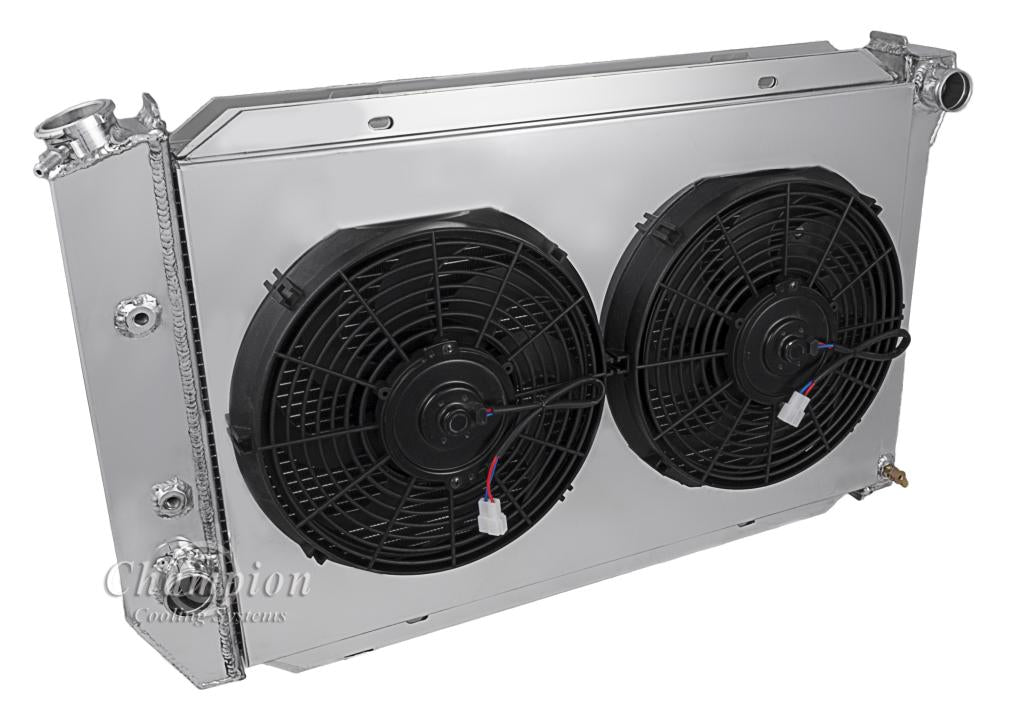

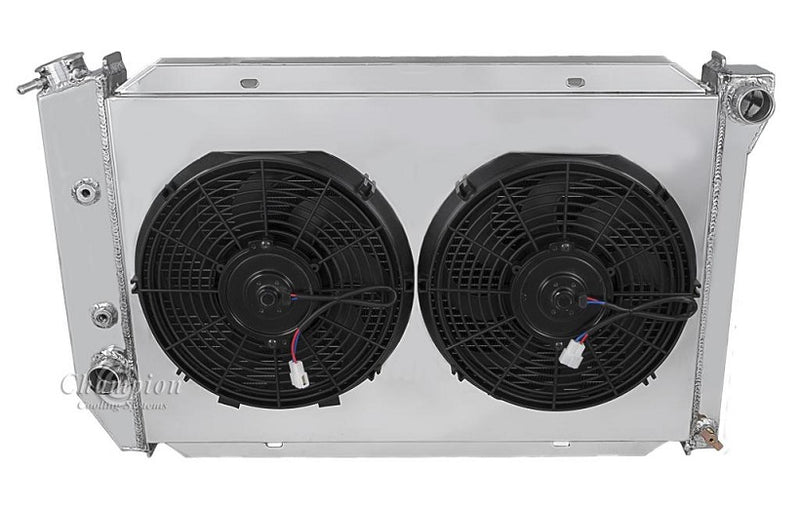

AE381-381FS12SP 2 Row 1" Tubes

Champion All Aluminum Radiator Plus
Ledfoot Racing Shroud & SPAL-1522 12" fans
2-Row Core: 1" Tubes | Cools up to 650hp

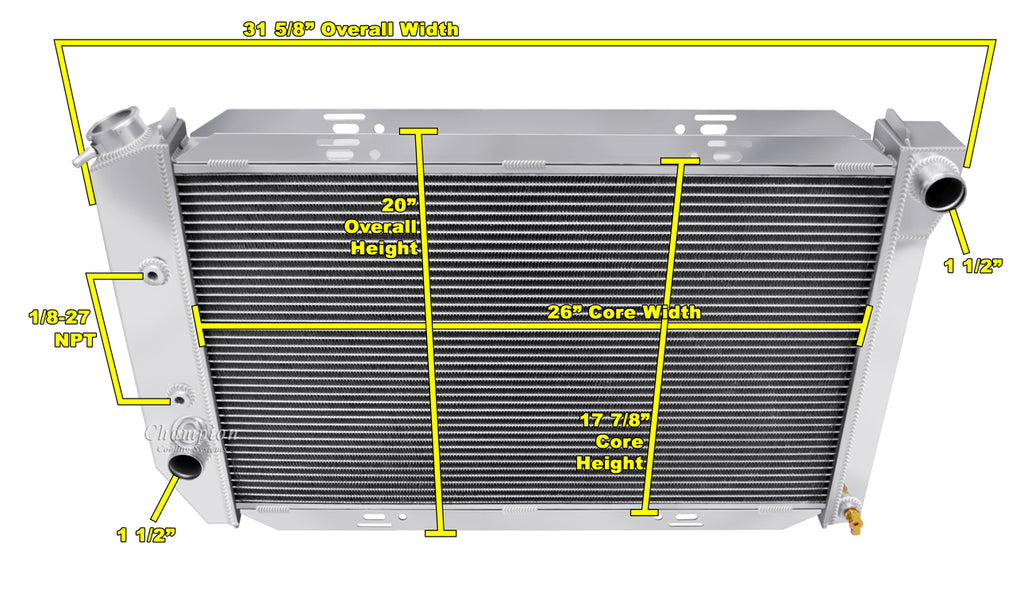

Radiator Dimensions:
Total: 20" tall (with cap) x 32" wide
Core: 17.5" tall x 26” wide x 2.13" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 3" thick
Tubes: 1" thick

Total to back of fans: 5.5" Thick
Between fan motors: 4.5" Thick

Saddle Mounted

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler included (1/8-27NPT)
