AE381 2 Row 1" Tubes

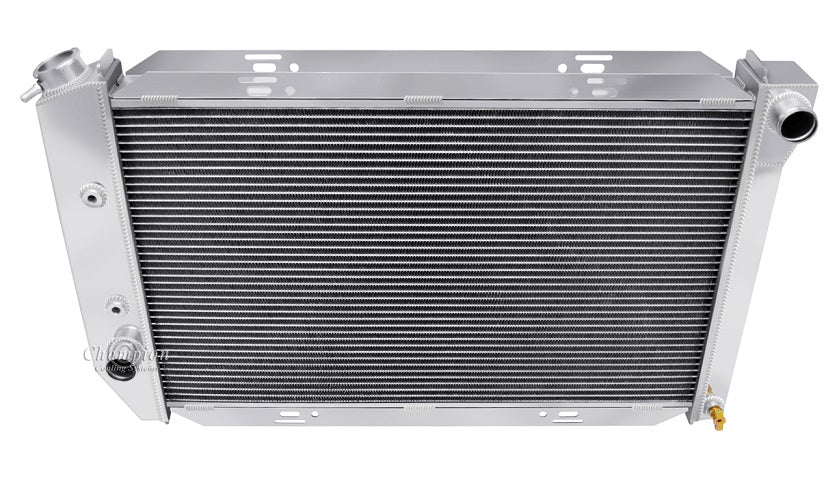

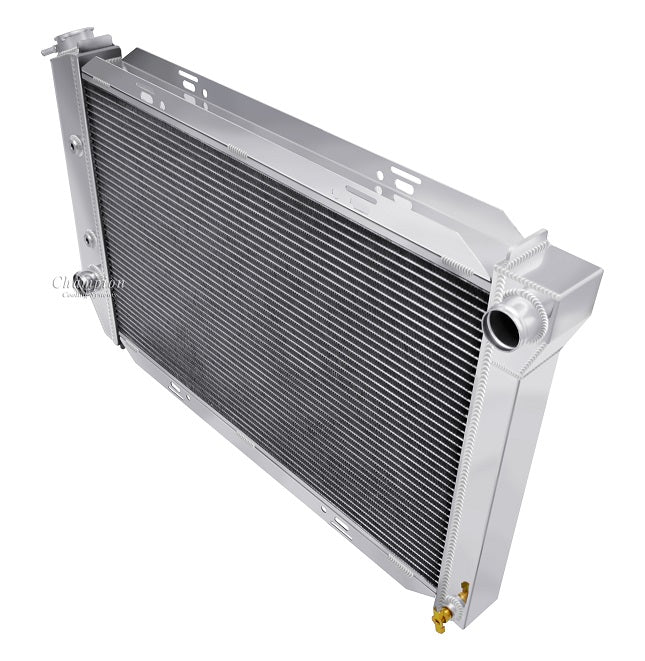

Champion All Aluminum Radiator
2-Row Core | 1" Thick Tubes | Cools up to 600hp

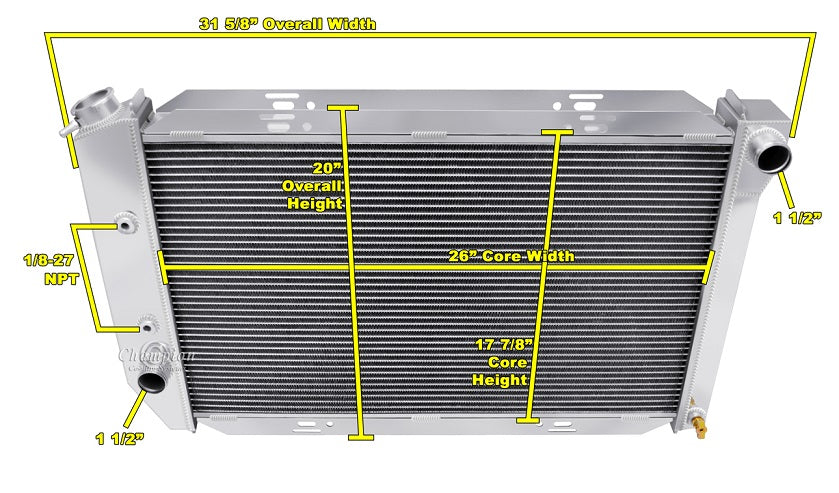

Radiator Dimensions:
Total: 20" tall (with cap) x 31.63" wide
Core: 17.88" tall x 26" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.5" Driver side
Tanks: 2.75" thick
Tubes: 1" thick

Saddle Mounted

16 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also Available (sold separately)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
