Description

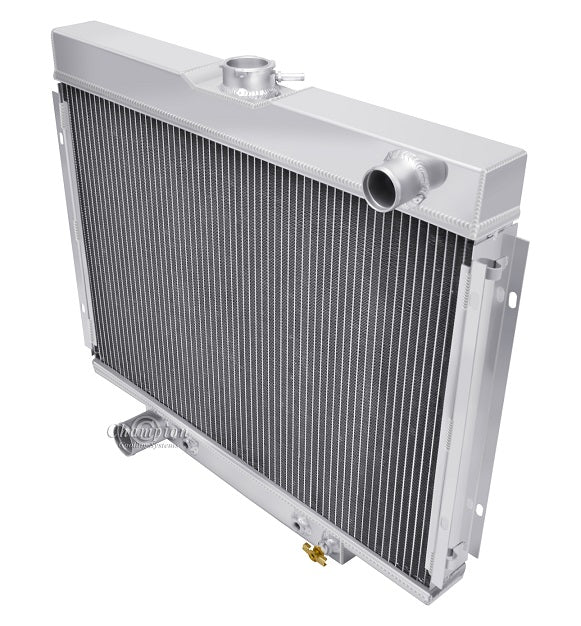

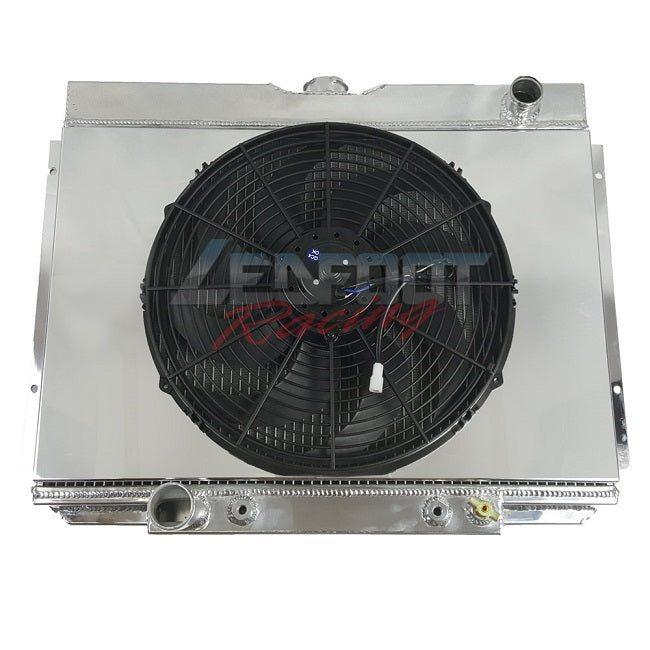

Champion Aluminum Radiator Plus Ledfoot Racing
Shroud and SPAL-1516 Medium Profile 16" Fan
The SPAL fan (2.5" thick) unually fits in front of the water pump
Please confirm your available room to the Total Thickness below
2-Row Core; 1" Thick Tubes | Cools up to 550hp
Usually For Big Blocks

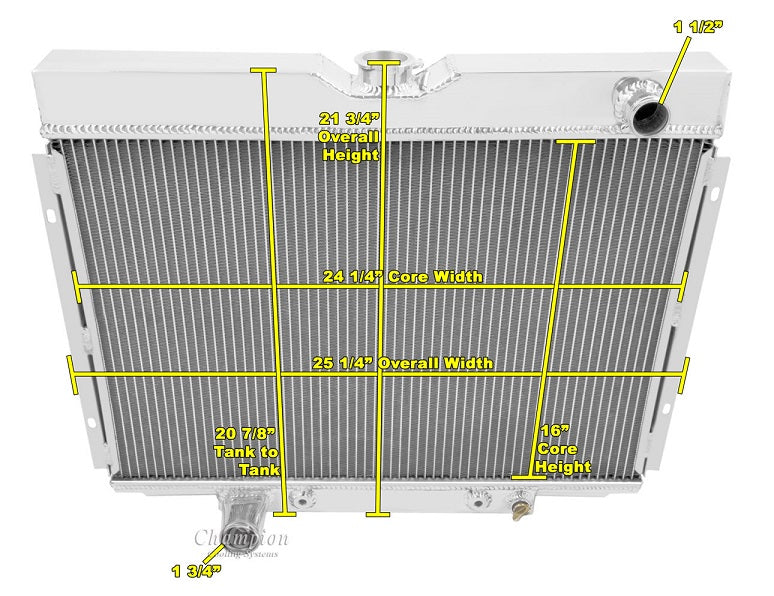

Radiator Dimensions:
Total: 20.88" tall (21.5" with cap) x 25.75" wide (including brackets)
Core: 16.5" tall x 24.25" wide x 2.13" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 1" thick
Total Thickness: 5.5" thick
Typically Saddle mounted, does have Bracket Mounts

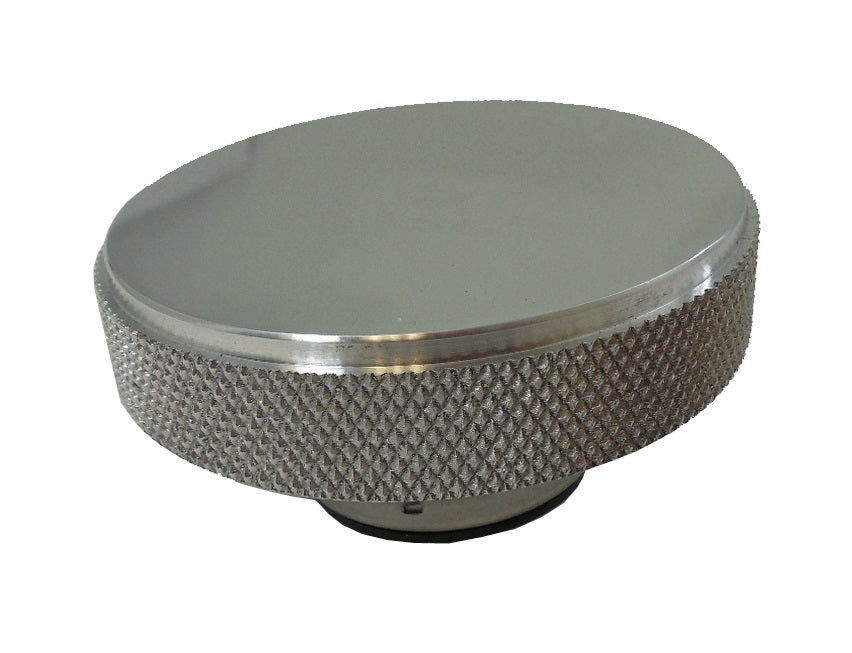

Polished Champion 16 lb Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
