AE379 2 Row 1" Tubes

Champion All Aluminum Radiator
2-Row Core | Cools up to 650hp | 1" Thick Tubes
Usually For Big Blocks

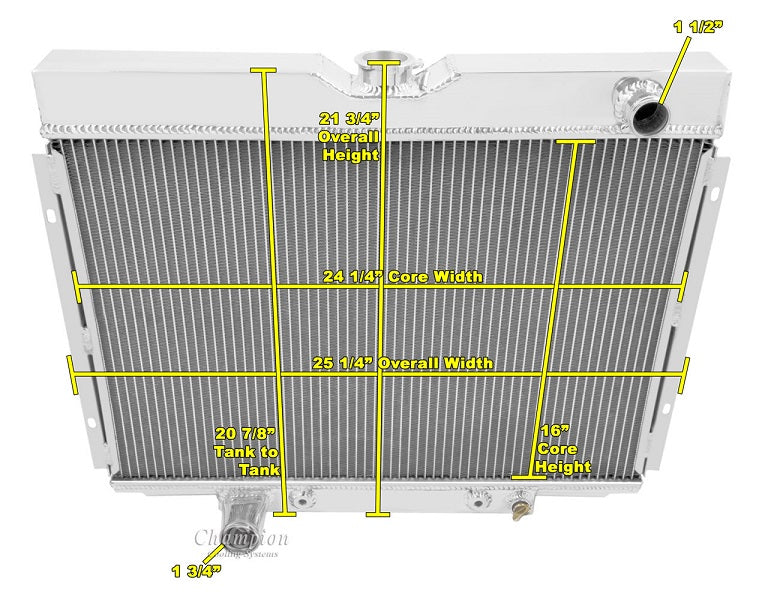

Radiator Dimensions:
Total: 20.88" tall (21.5" with cap) x 25.75" wide (with brackets)
Core: 16.5" tall x 24.25" wide x 2.1" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 1" thick

Saddle or Bracket Mounted

16lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also available (sold separately)

When using electric fans (sold separately):
One 16" or two 12" Electric fans recommended for this core size
