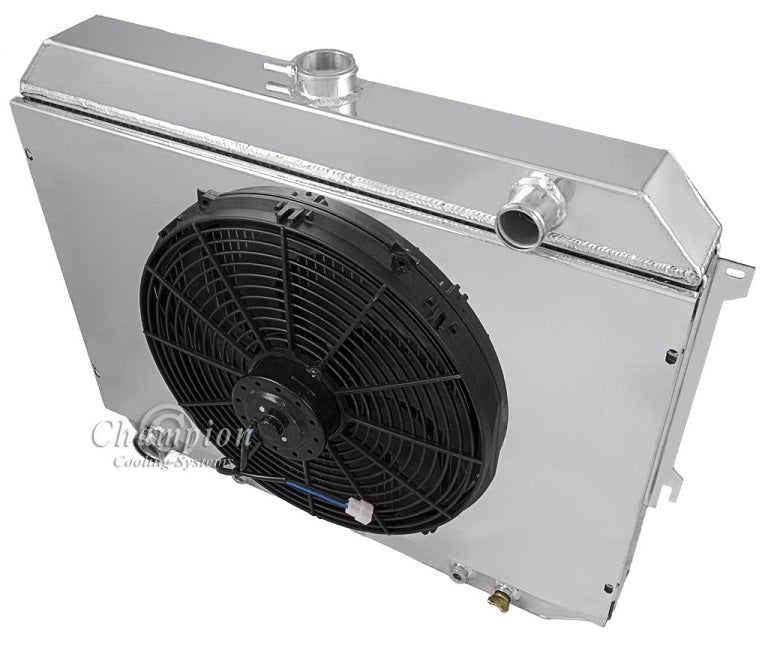

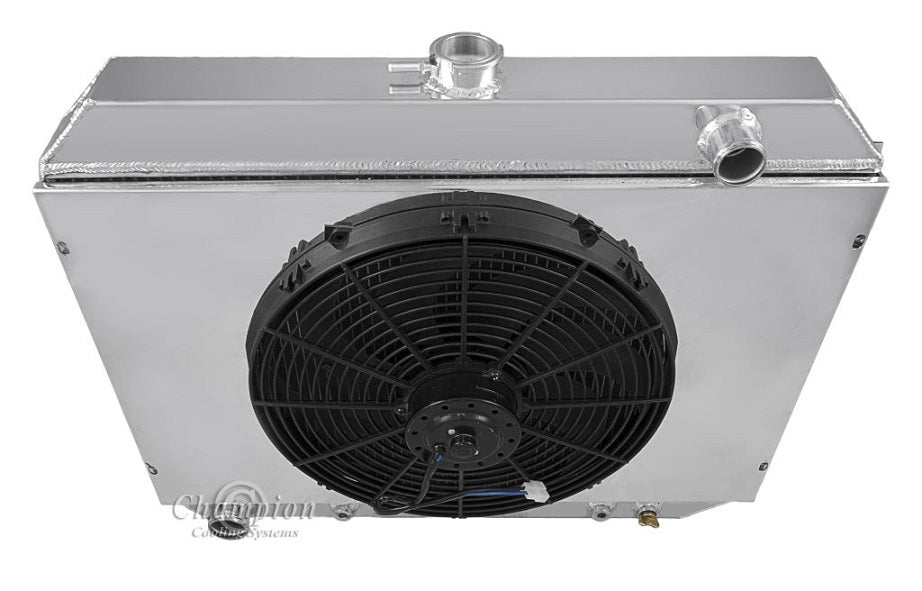

AE375-375FS16 2 Row 1" Tubes Combo

Champion All Aluminum Radiator PLUS
Aluminum Shroud & 16" Pro-Series fan
Verify clearance for electric fan
Total thickness: 6.5" to fan motor
2-Row Core | Cools 550hp

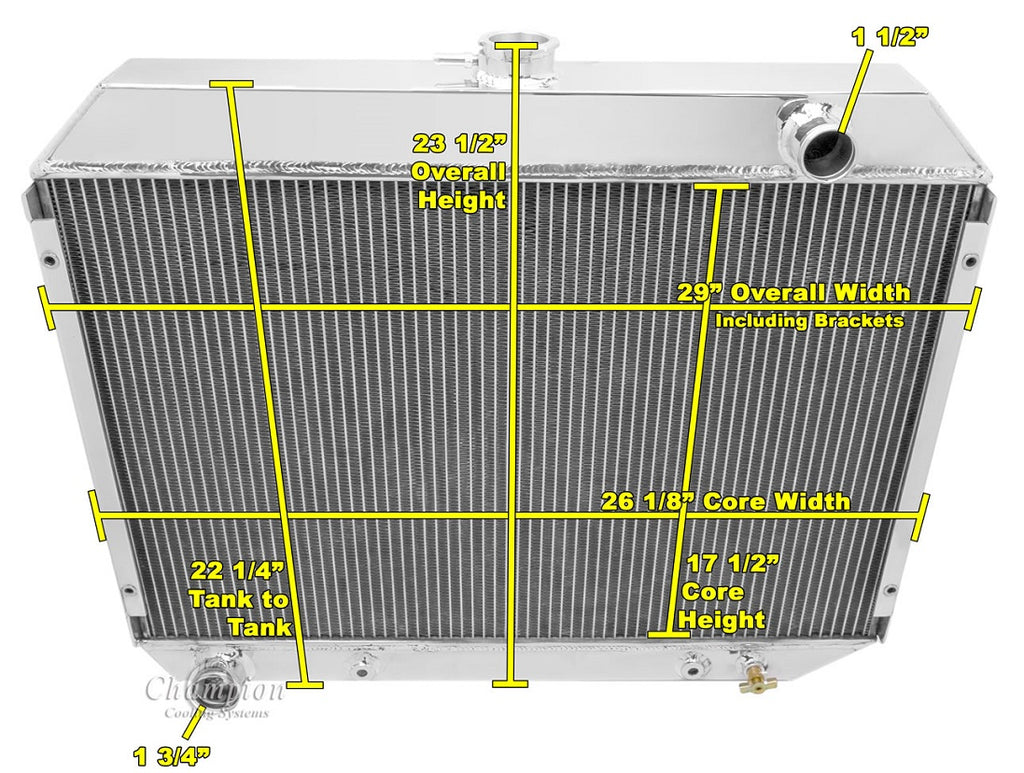

Radiator Dimensions:
Total: 29" wide (w/ brackets) x 22.25" tall (23.25" w/ cap)
Core: 26" wide x 17.5" tall x 2.13" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket mounted

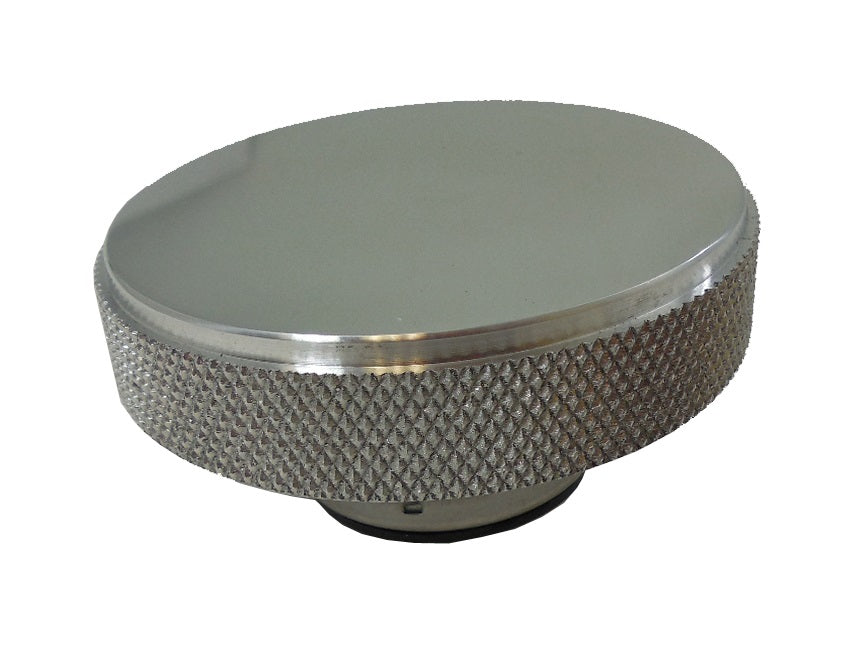

Polished 16 lb Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
