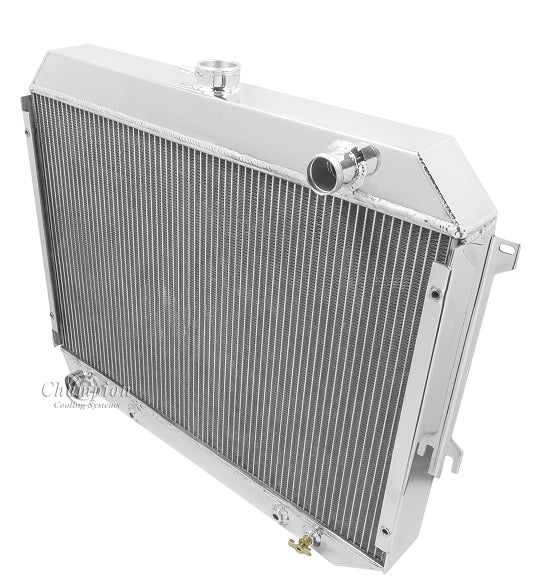

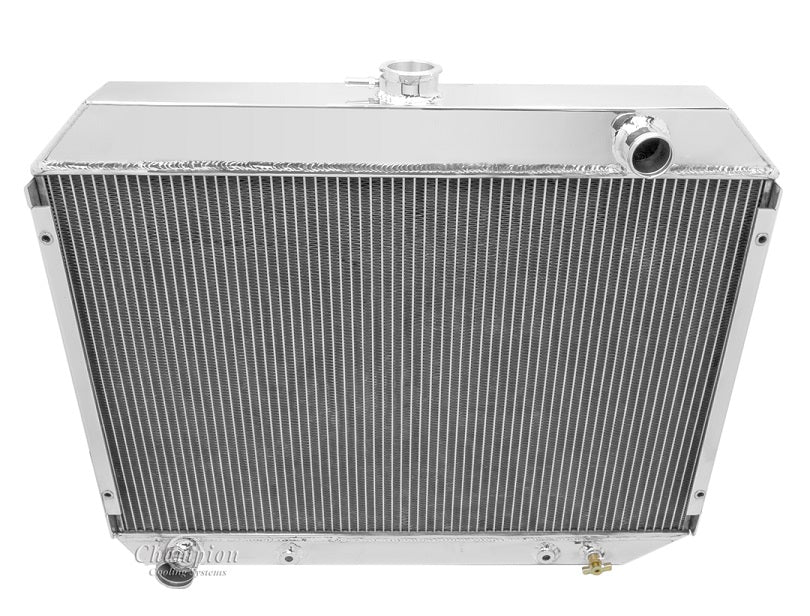

AE375 2 Row 1" Tubes

Champion All Aluminum Radiator
2-Row Core: 1" Thick Tubes | Cools up to 650hp

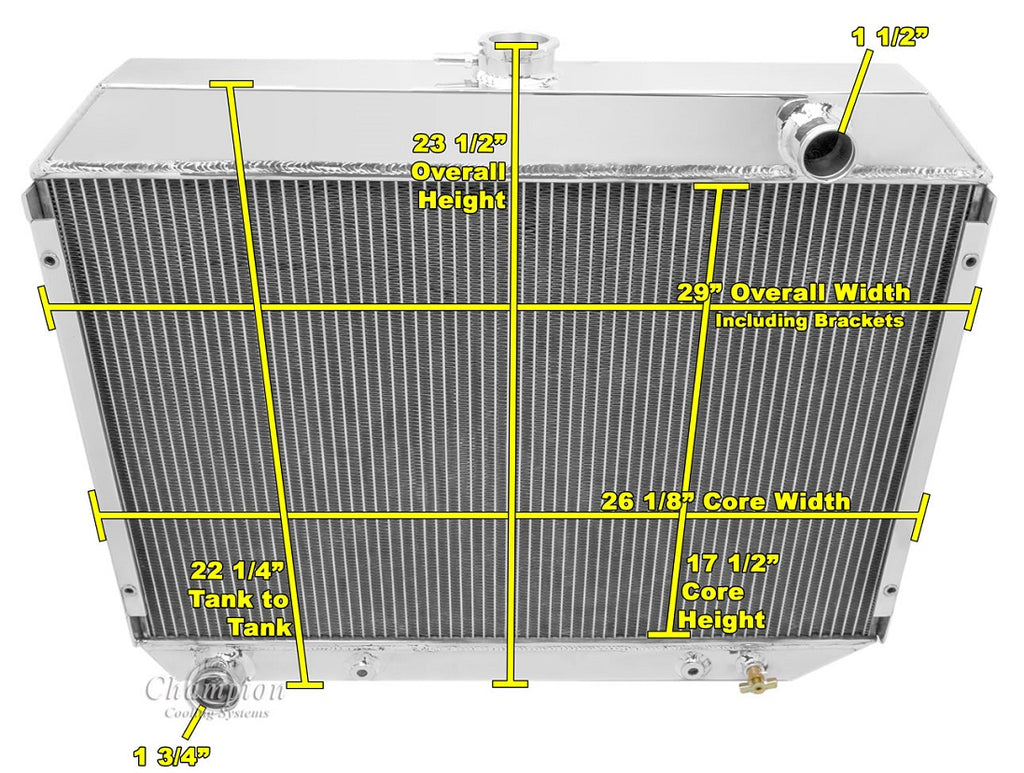

Radiator Dimensions:
Total: 22.25" tall (23.25" with cap) x 29" wide (including brackets)
Core: 17.5" tall x 26" wide x 2.2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.75"
Tubes: 1" thick

Bracket mounted
Check OEM Shroud Brackets for Shroud support

Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also available (sold separately)

When using electric fans (sold separately):
Two 12" Electric fans recommended for this core size
