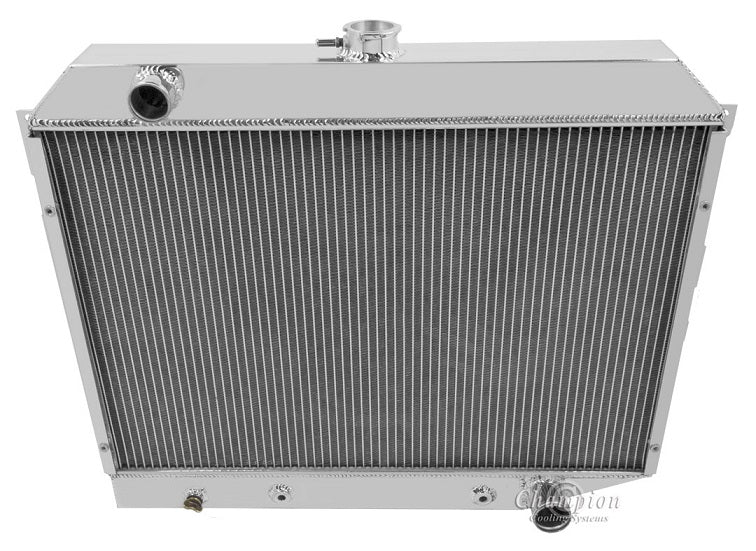

AE374 2 Row 1" Tubes

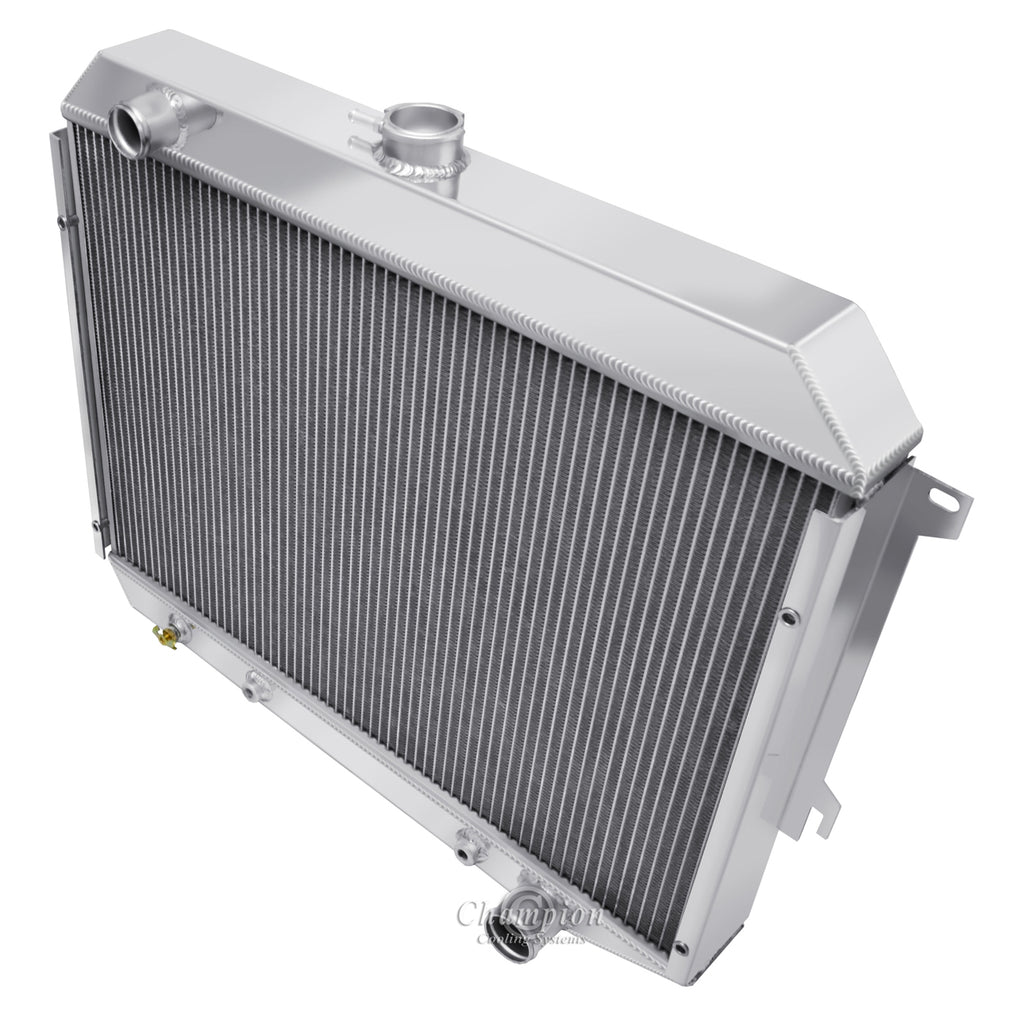

Champion All Aluminum Radiator
2-Row Core 1" Thick Tubes | Cools up to 650hp

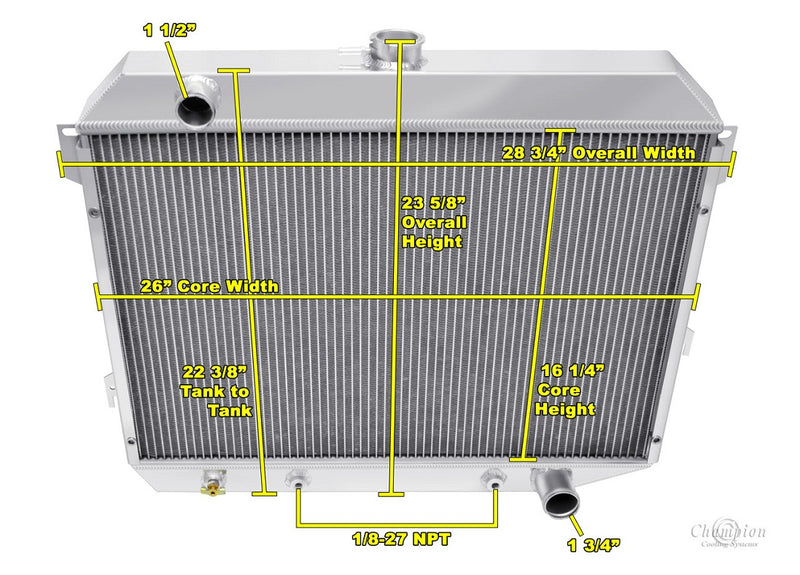

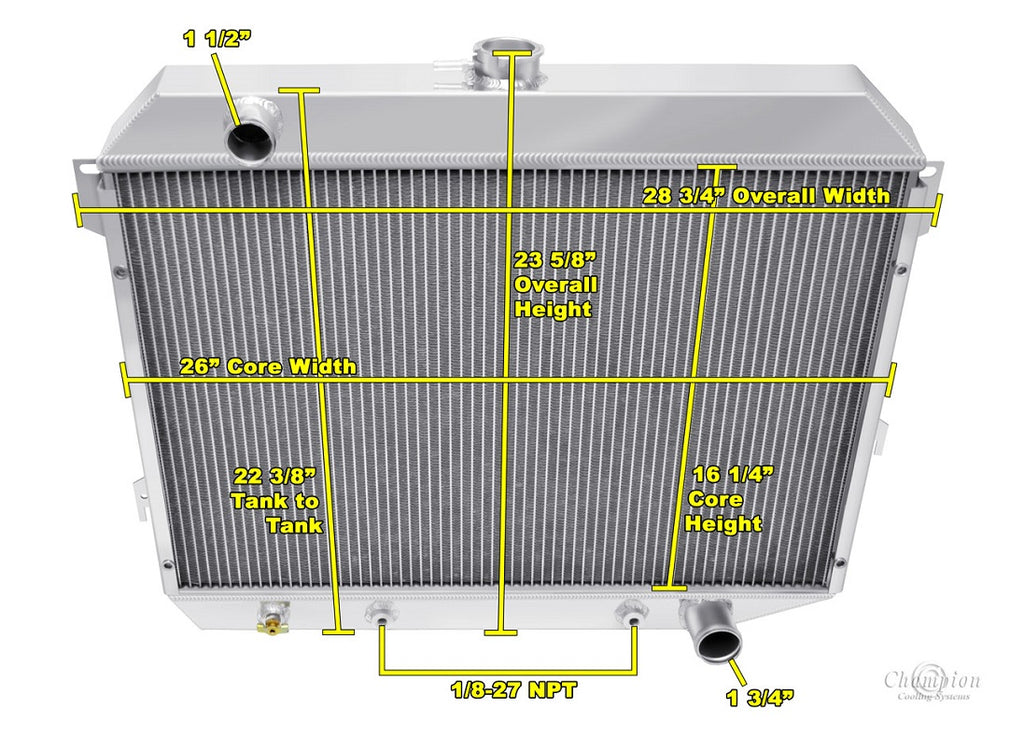

Radiator Dimensions:
Total: 22.5" tall (23.5" with Cap) x 29" wide (including brackets)
Core: 16.25" tall x 26" wide x 2.2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mount System
Check OEM Shroud Brackets for Shroud support

16 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also available (sold separately)

When using electric fans (sold separately):
Two 12" Electric fans recommended for this core size
