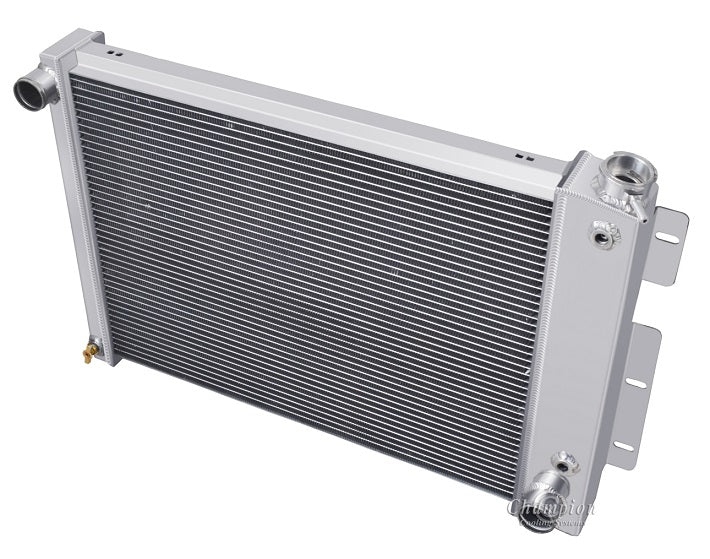

AE370-370CCFS16F 2 Row 1" Tubes 23" core

Champion All Aluminum Radiator

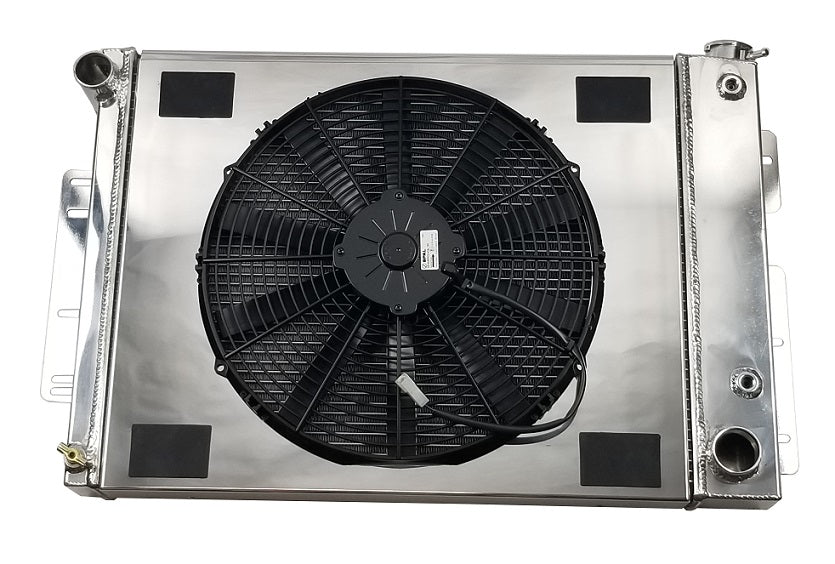

Plus Ledfoot Racing Shroud and 16" fan
Verify clearance for electric fan
Total thickness: 6.5" to fan motor
2-Row 1" Core | Cools up to 550hp
($20 Discount)

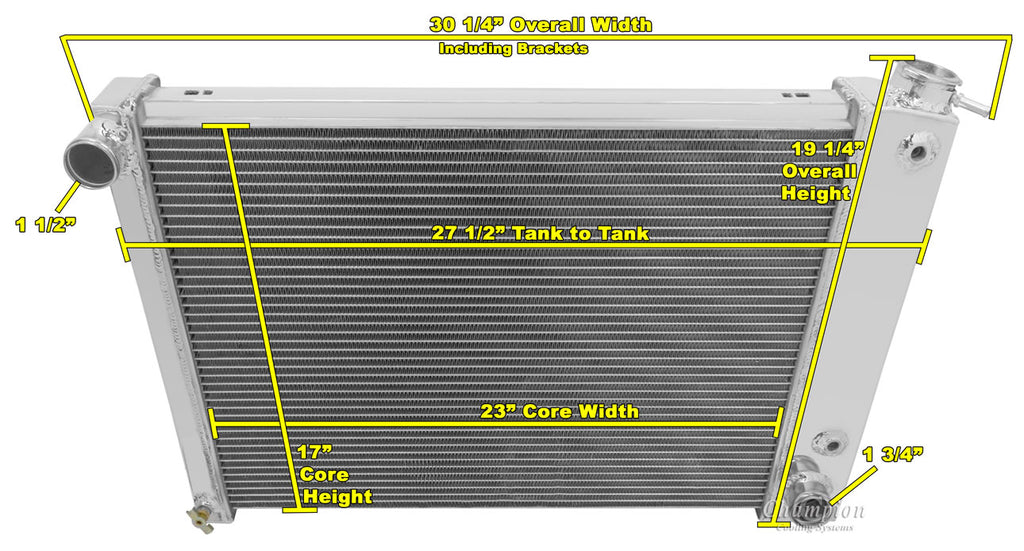

Radiator Dimensions:
Total: 18.5" (19.5" with cap) x 30.25" (with brackets)
Core: 16.75" tall x 22.75" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet:1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

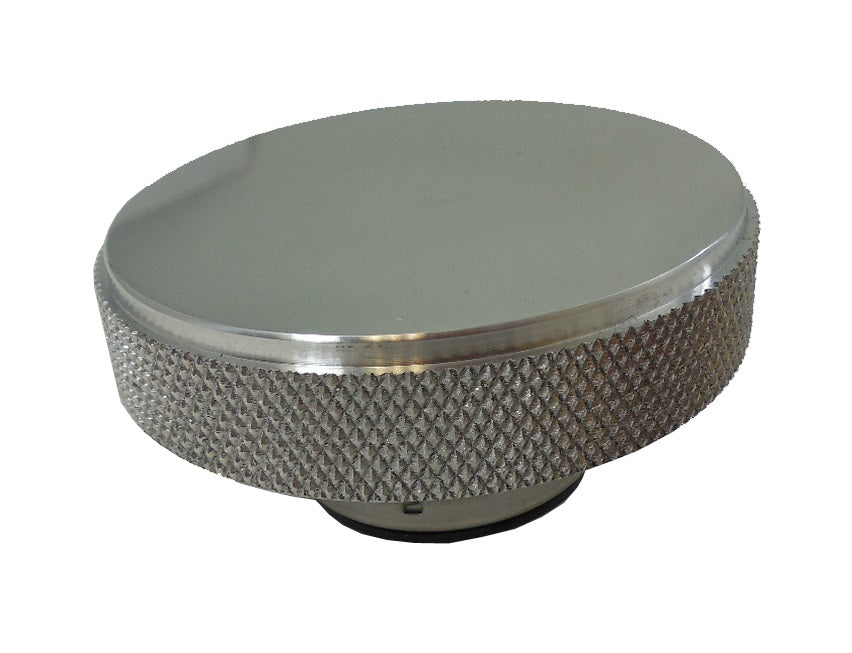

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler Included
