AE369-369FS14 2 Row 1" Tubes Combo

Champion All Aluminum Radiator

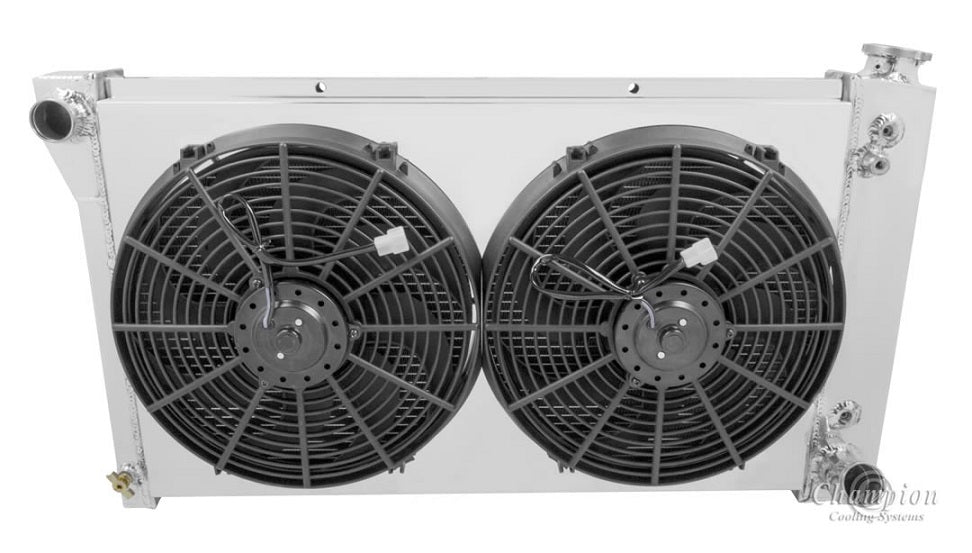

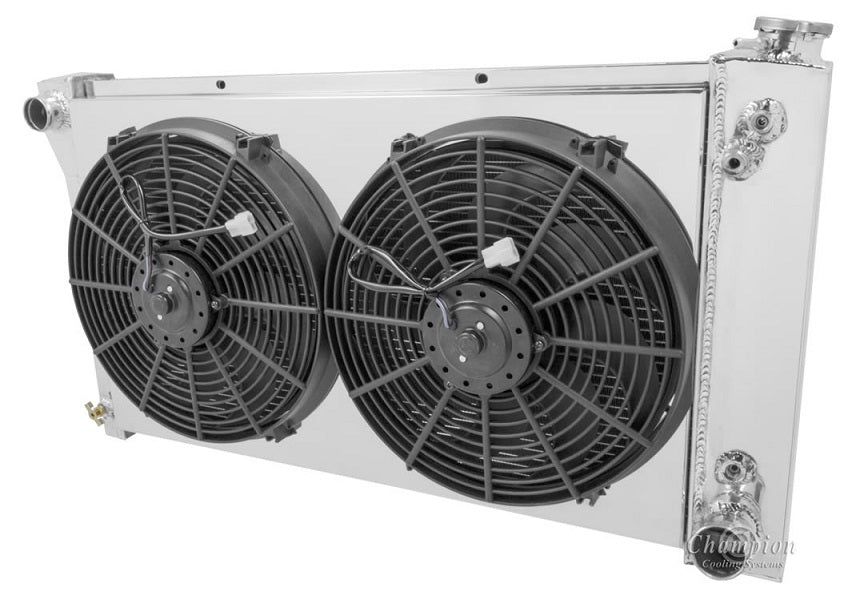

PLUS Ledfoot Racing Aluminum Shroud & Two 14" Fans
Verify clearance for electric fan
Total thickness: 6" to fan motor
2 Row Core: 1" Thick Tubes | Cools up to 800hp

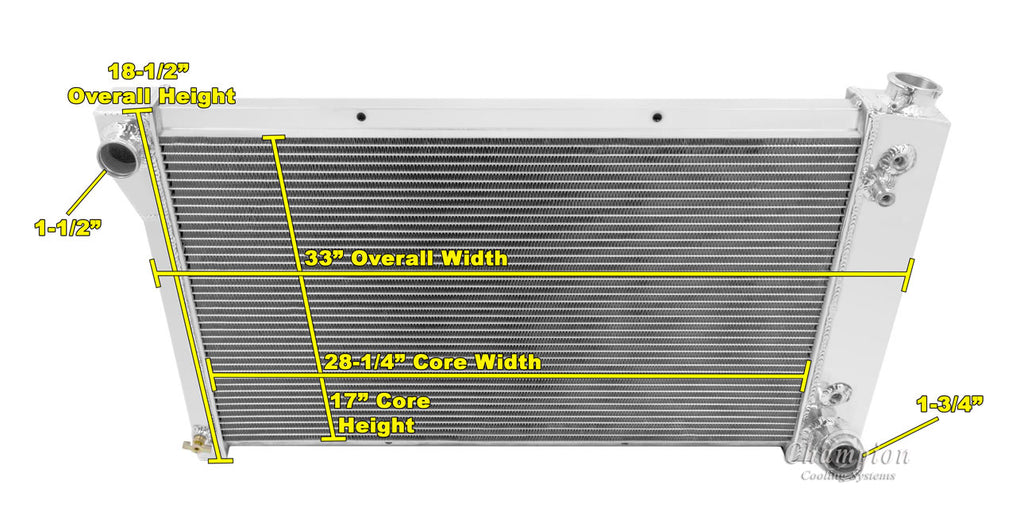

Radiator Dimensions:
Total: 18.25" tall (19" with cap) x 33" wide
Core: 16" tall x 28.25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 1" thick

Saddle Mounted

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler included (1/2" 20 STRAIGHT THREAD G1/4)

Note: 4.5" thick in the center around the edge of the fans.
