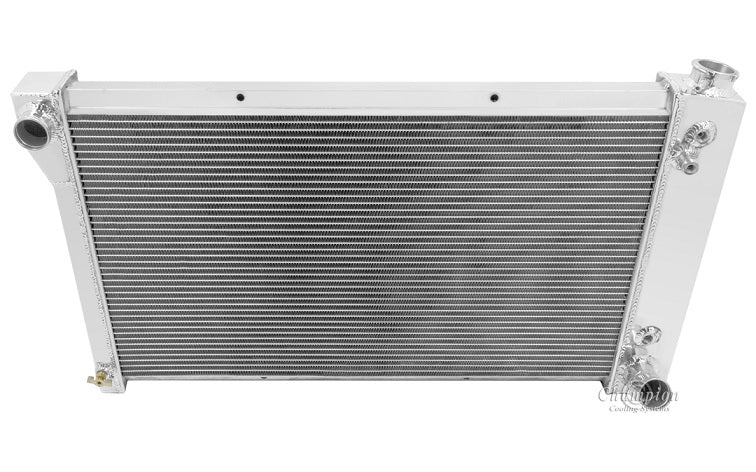

AE369 2 Row 1" Tubes

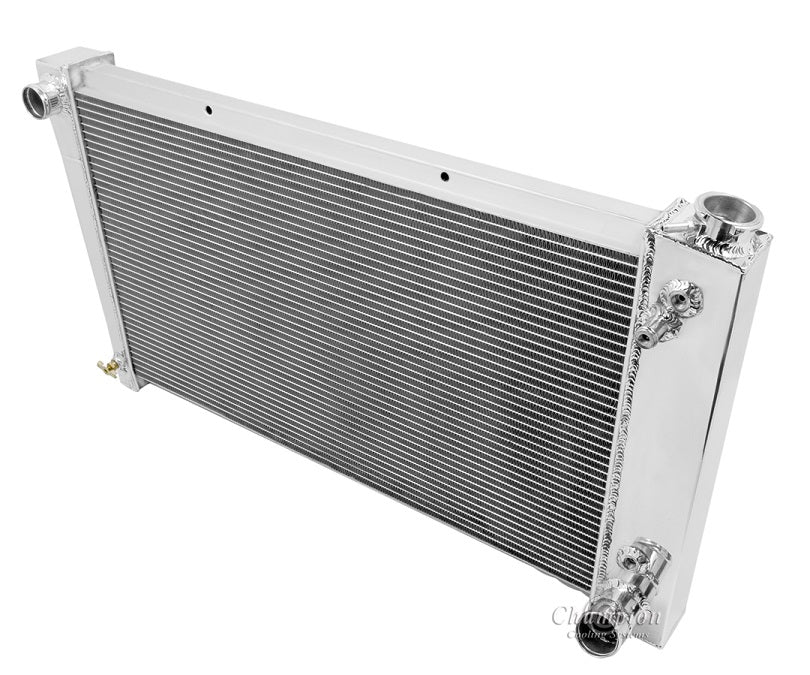

Champion All Aluminum Radiator
2-Row Core: 1" Thick Tubes | Cools up to 800hp

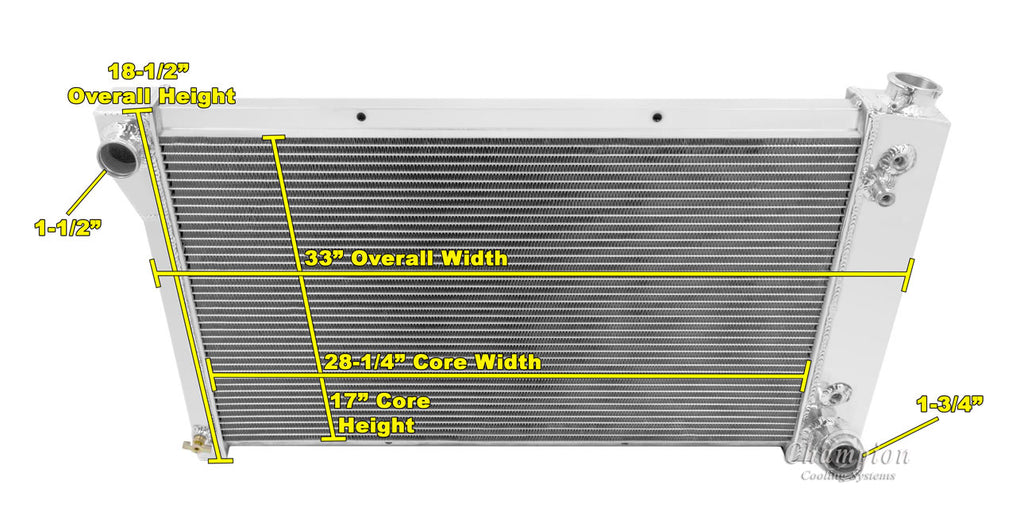

Radiator Dimensions:
Total: 18.25" tall (19" with cap) x 33" wide
Core: 16" tall x 28.25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 1" thick

16 lb. Radiator Cap included
Transmission Cooler included (1/2" 20 STRAIGHT THREAD G1/4)
Aluminum Shroud is also available for 2-12" or 2-14" Electric fans (sold separately)

When using Electric Fans (sold separately):
Two 12" or Two 14" Electric fans recommended for this core size
