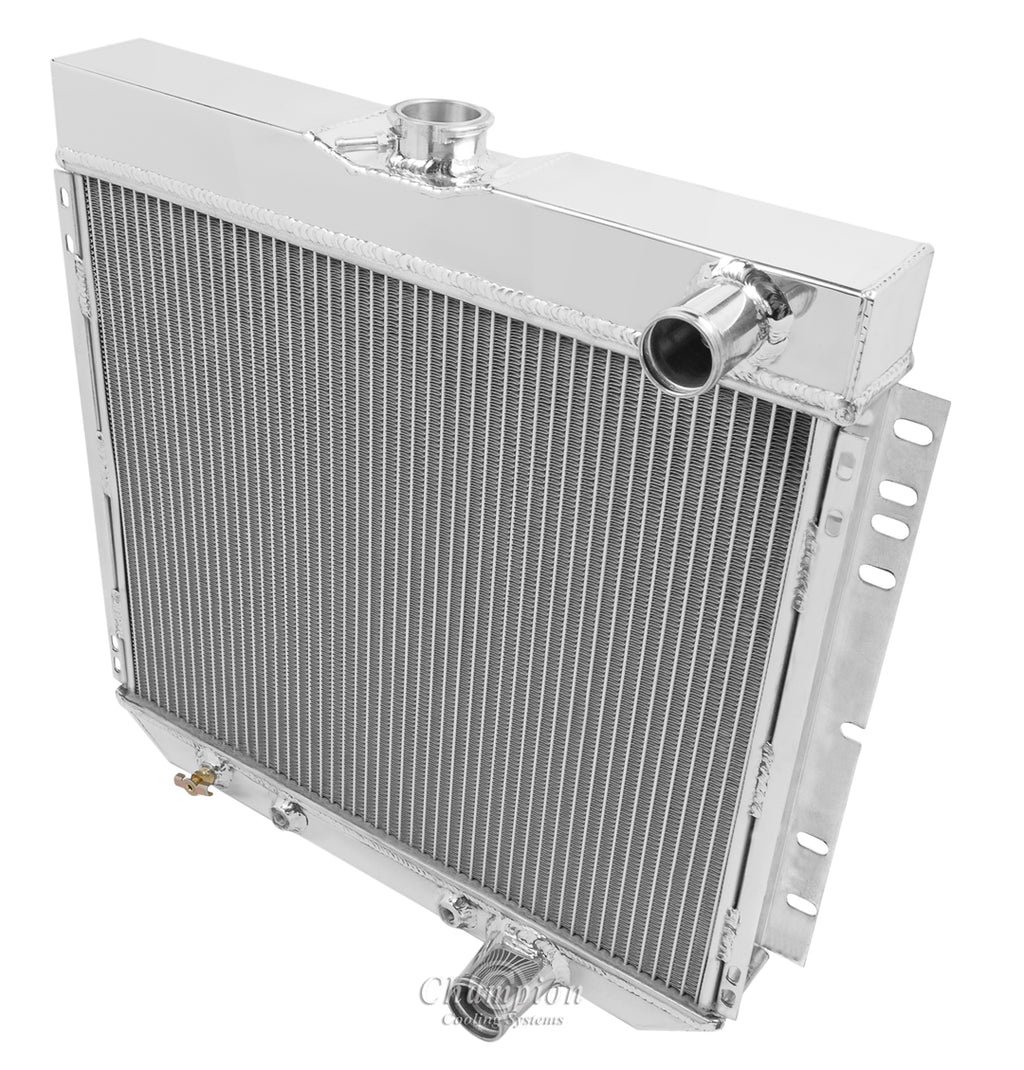

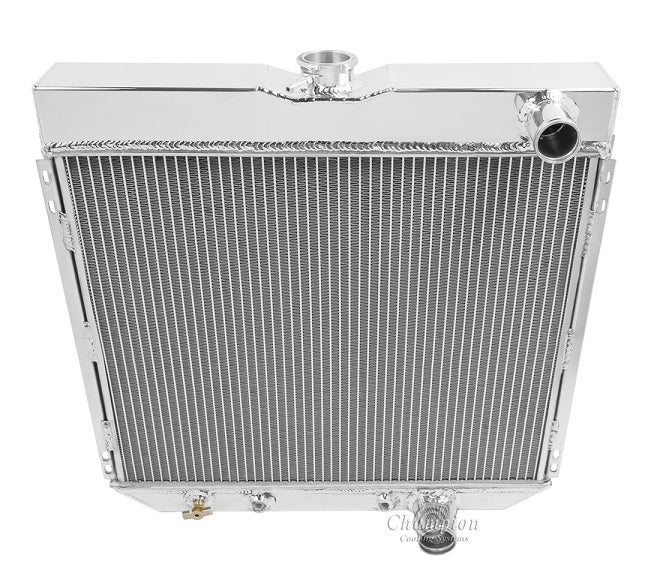

AE340 2 Row 1" Tubes

Champion All Aluminum Radiator
2-Row Core 1" Tubes | Cools up to 550hp

Radiator Dimensions:
Core: 16.25" tall x 19.75" wide x 2.25" thick
Total: 20.75" (21.25" with cap) x 22.25" wide (including brackets)
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 1" thick

Bracket Mounted

16 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Fan Shroud for One 16" Electric is also available (sold separately)

When using electric fans:
One 16" Electric cooling fan recommended for this core size (sold separately)
