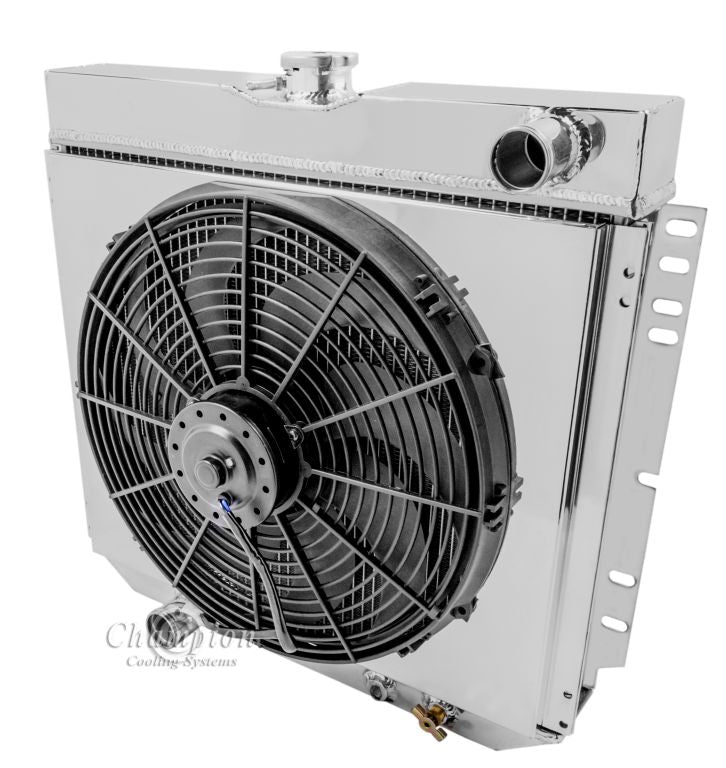

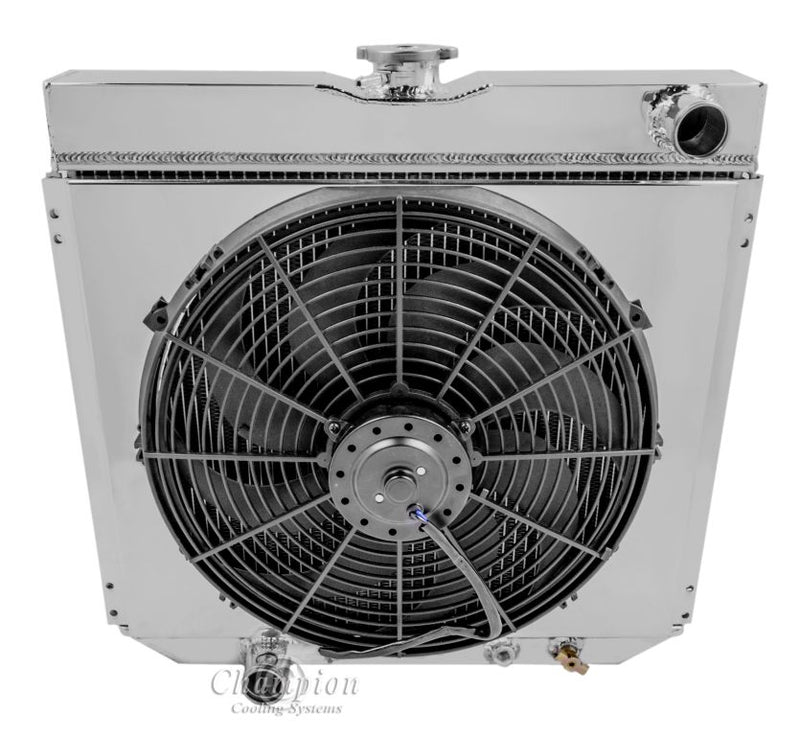

AE339-339FS16SP 2 Row 1" Tubes Combo

Champion All Aluminum Radiator Plus
Shroud & 16" SPAL-1516 Medium Profile Fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
2-Row Core 1" tubes | Cools 550hp

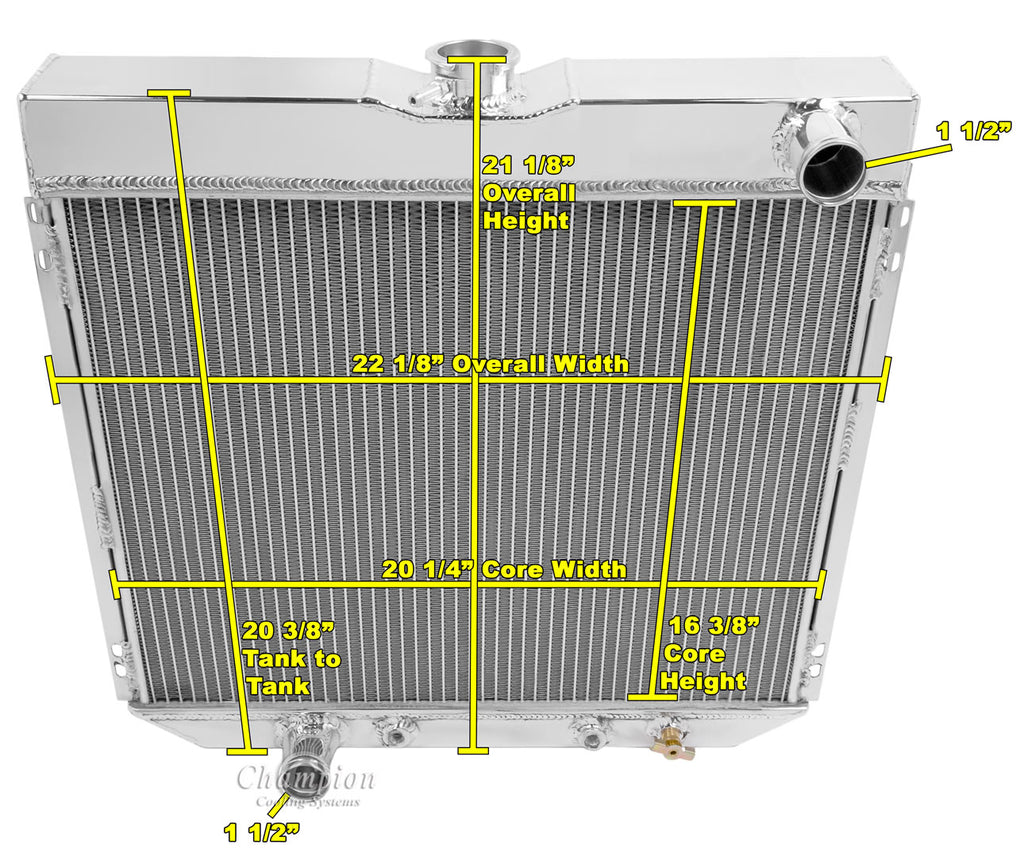

AE339 Radiator Dimensions:
Total: 20.38" tall (21" with cap) x 22.13" wide (including brackets)
Core: 16.38" tall x 20.25" wide x 2.13" thick
Inlet: 1.5" passenger
Outlet: 1.5" driver
Tanks: 2.5" thick
Tubes: 1" thick
Total Thickness: 5.5" to back of fan

Bracket Mounted

Polished Champion 16 lb Radiator Cap included (Pictured Above)
Transmission Cooler Included (1/8-27npt)
